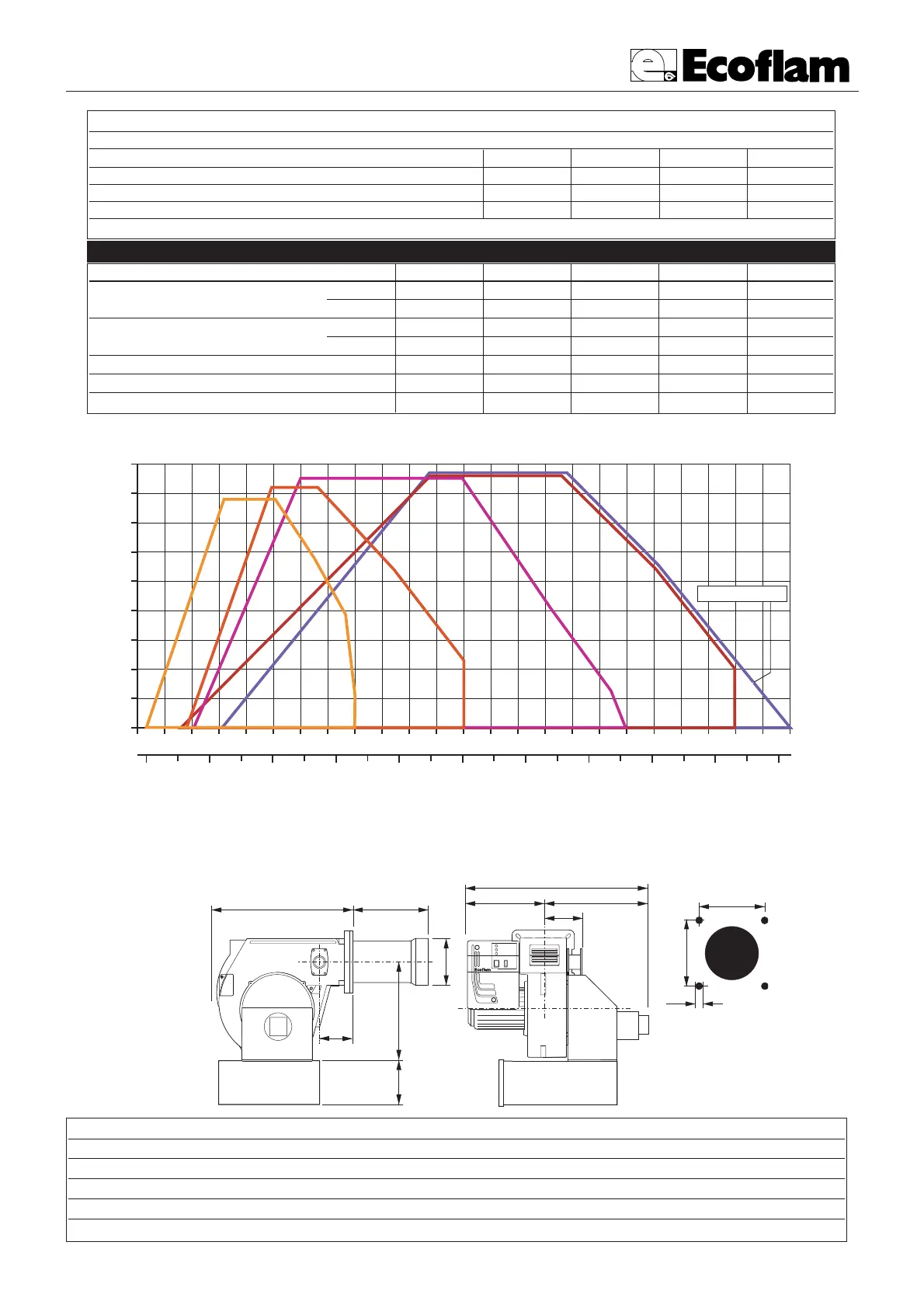

B LB 1371 Multicalor 45 ÷ 140
Multicalor 45 70 100 120 140
Max. Thermal Output kW 500 700 1000 1200 1300
kcal/h 430.000 602.000 860.000 1.032.000 1.118.00
Min. Thermal Output kW 120 190 200 180 250
kcal/h 103.200 163.400 172.000 154.800 215.000
Power.3phase + neutral 50 HzV 230 / 400 230 / 400 230 / 400 230 / 400 230 / 400
Motor kW 0,55 0,74 1,1 2,2 2,2
Motor RPM N° 2800 2800 2800 2800 2800
FUEL CHARACTERISTICS
Model : Multicalor 45-70-100-120-140 Gas family - II 2H 3P
G20 G25 G31 G30
Max. pressure mbar 25 - 45 -
Min. pressure mbar 17 - 25 -
Gas Low Heat Value: kcal/Nm
3
8.570 - 22.260 -
Light-oil Low Heat Value = 10.200 kcal/Kg max 1,5° E a 20° C
TECHNICAL FEATURES
WORKING FIELDS
BACKPRESSURE IN COMBUSTION CHAMBER
OUTPUT
OVERALL DIMENSIONS
MODELS A B C D D1 E F G H I L M N O
Multicalor 45 780 330 450 170 330 555 160 385 225• 190 190 M10 115 165
Multicalor 70 780 330 450 170 390 555 190 385 225• 190 190 M10 115 165
Multicalor 100 780 330 450 175 395 555 190 385 225• 190 190 M10 115 165
Multicalor 120 800 350 450 310 470 555 215 385 225• 190 190 M10 115 165
Multicalor 140 800 350 450 310 470 555 215 385 225• 190 190 M10 115 165
G
M
L
I
F
D - D1E
CB
A
H
N
O
D = short head D1 = long head
•= ( Optional)
Dimensions (mm)
150100 200
200100 300 400 500 600 700 800 900 1000 1100
250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
0
1
2
3
4
5
6
7
8
9
mbar
kW
kcal/h
x 1000
Multicalor 70 PR Multicalor 100 PR Multicalor 120 PR
Multicalor 140 PR
Multicalor 45 PR
NB. : Working fields referred to gas operation (PR/MD).
