Ecoflam Multicalor 45 - RWF 40 Microprocessor Regulator Operation; RWF 40 Display and Key Description; RWF 40 Programming Levels

pag.28
B LB 1371 Multicalor 45 ÷ 140
RWF 40 MICROPROCESSOR REGULATOR
Display:
analog input 1
(actual value)
Display: Set point SP1
Decrease value
Programming key
Manual operation
Auxiliary contact
Increase value
EXIT key.
Burner operation
Reduce power
CLOSE/1st Stage
Increase power
OPEN/2nd Stage
Two-stage operation

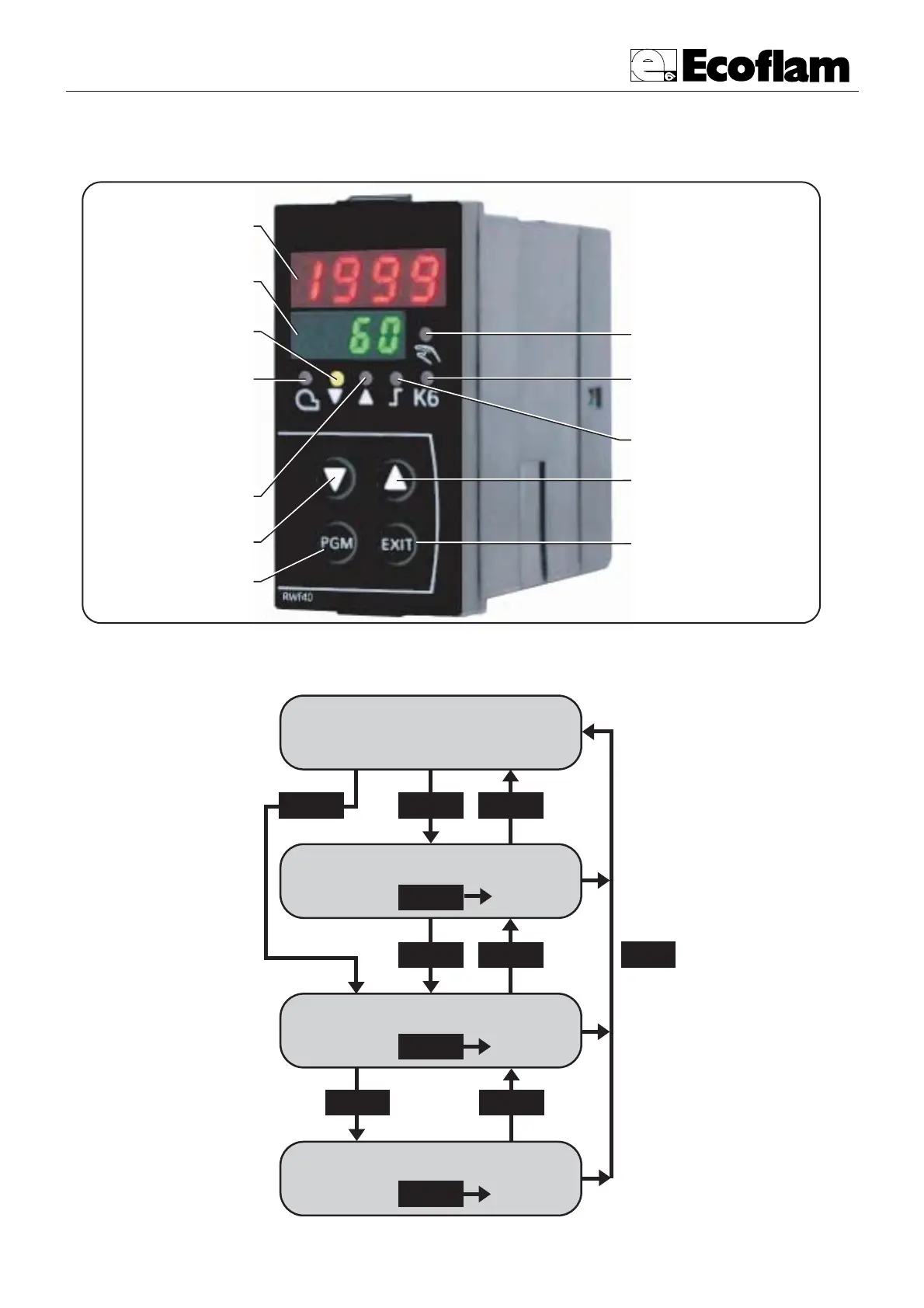

Description of display and keys on the RWF 40 microprocessor regulator
The figure shows the normal display indicating
the actual value and the programmed set
point, and equally important,
gives the meaning of the
single keys and indicator Leds.
Configuration level
User Level
Normal display
Parameters level
PGM
PGM
PGM
PGM PGM
PGM
PGM PGM
PGM PGM
min 2s
min 2s
min 2s
Exit
PROGRAMMING LEVELS
