5.2 Assembly
Variant: 5 and 20 l canisters

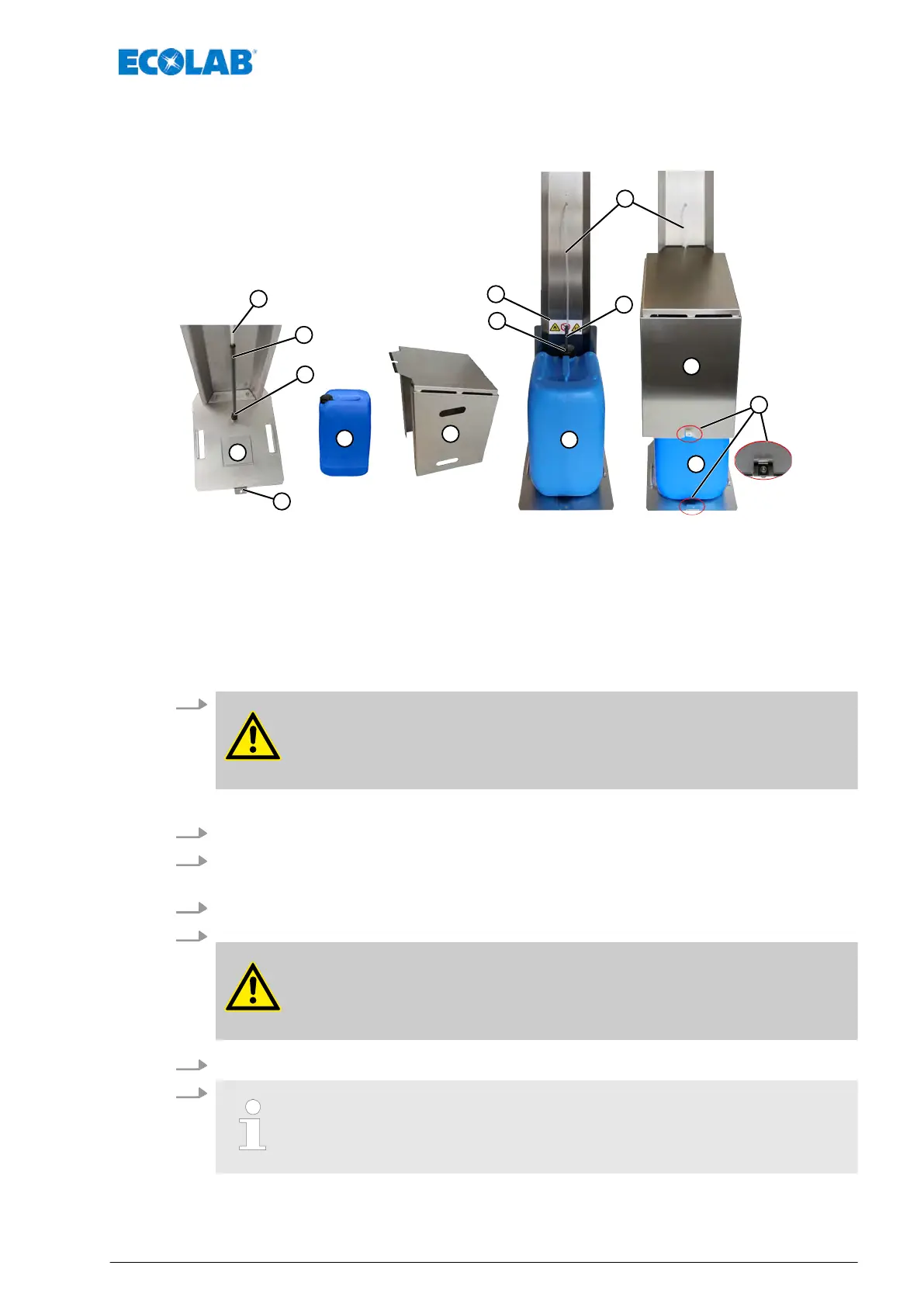

Fig. 1: Dermados Station Canister assembly / change
1 Long suction hose
2 Suction pipe
3 Foot valve
4 Base panel
5 Lock device
6 Stainless steel canister hood
7 canister
8 Suction lance canister lid
9 Safety instructions
Mount the dosing container (canister) and connect it to the suction lance
1.
CAUTION!
Mount the dosing container (canister) and Dermados Station connect
it to the suction lance (pos. 9)
Remove the pre-assembled stainless steel canister bonnet (pos. 6) upwards.
2. Place the canister in the centre of the base plate (pos. 4)
3. Remove the lid of the canister.
The suction lance (pos. 2) is fitted with a matching canister lid (pos. 8).
4. Insert the suction lance into the canister (pos. 7) as far as possible.
5. Put on the suction lance canister lid (pos. 8) and tighten it hand-tight.
DANGER!
All safety regulations for handling chemicals must always be observed
(see also
Ä
Appendix A ‘Safety data sheets’ on page 48)!
6. Slide the stainless steel canister cover onto the brackets from above.
7.
We recommend to lock the canister cover with a suitable lock (Pos. 5)
from unauthorised access. The rollable version is secured with the
enclosed lateral Allen screws.
