Wall mounting

The EcoPlus PDRX is designed for wall mounting and has a mounting plate

that allows the EcoPlus PDRX to be installed quickly and also removed for

maintenance work.

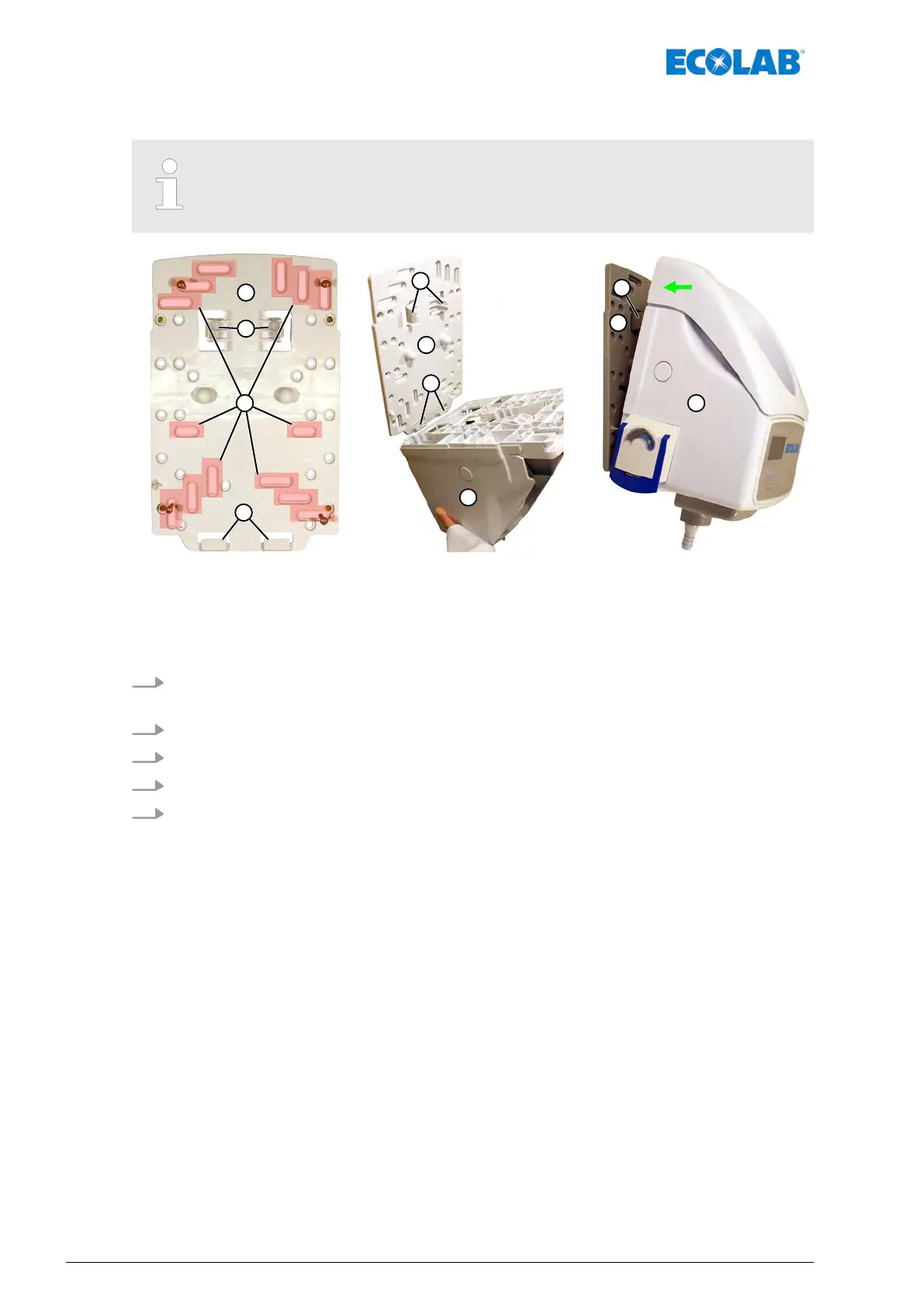

Fig. 2: Wall mounting

1 Wall bracket

2 Drill holes

3 Retaining clip

4 Hook

5 EcoPlus PDRX

1. Mark the desired drill holes (pos. 1) at the installation site using the wall bracket

(pos. 2).

2. Drill holes.

3. Fix the wall bracket (pos. 1) to the wall using suitable fixing material.

4. EcoPlus PDRX (pos. 5) from above into hooks (pos. 4) of wall bracket

(pos. 1).

5. EcoPlus PDRX (pos. 5) onto the wall bracket (pos. 1) and press it backwards until it

audibly engages.

Assembly and installation

14417102610 Rev. 01-12.2020
