Product feed line to the dishwasher
CAUTION!
Always follow these rules to prevent the feed line from getting blocked by
product sedimentation!
–
Keep the feed line as short as possible.
The gradient on the feed line must be at least 5° down its entire length.
Never route feed line with a hanging loop (= siphon) or loose.
– The tank connection must be located above the maximum water fill level
in the wash tank.

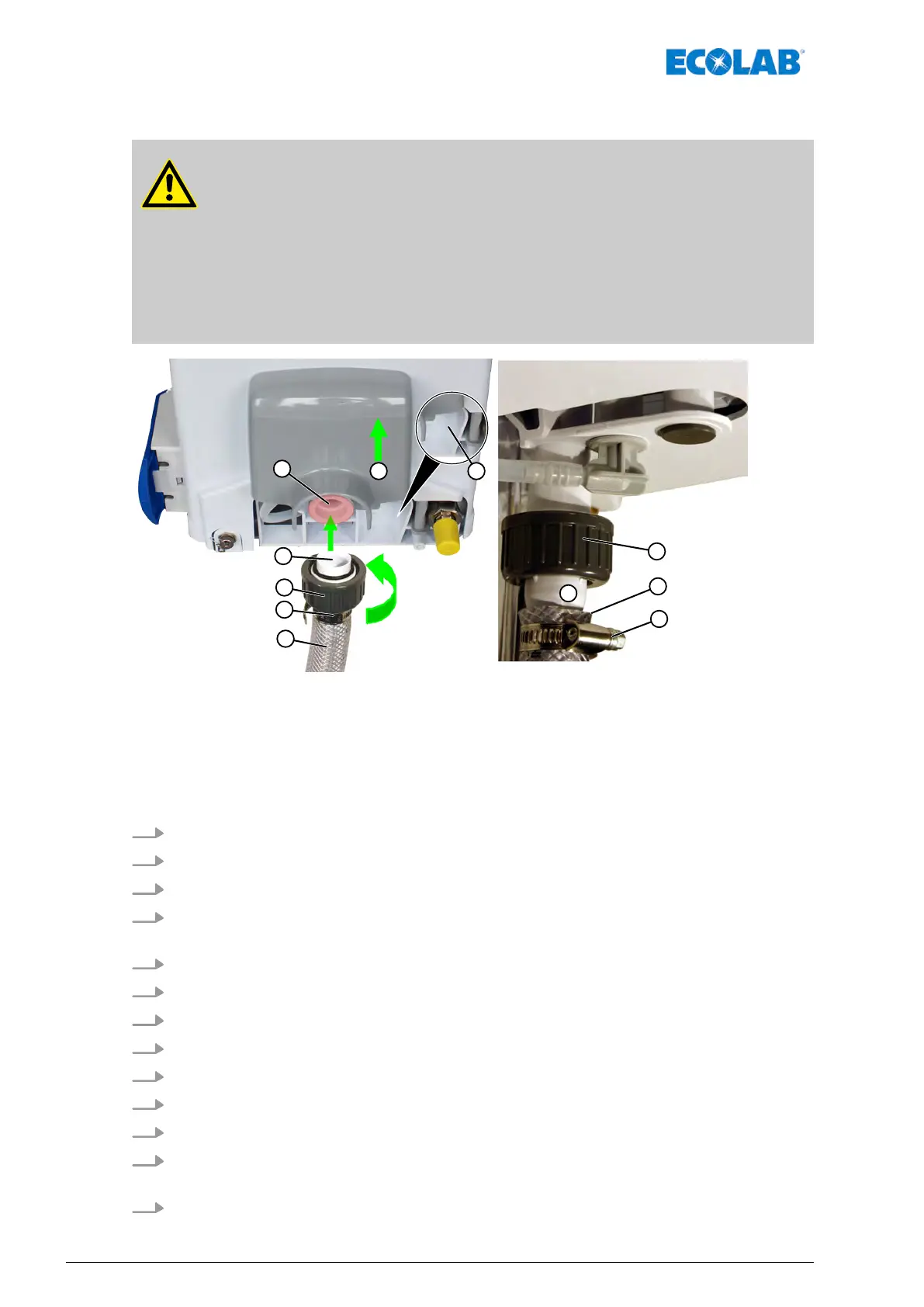

Fig. 4: Product feed line to the dishwasher
1 Release tab for funnel lock
2 Funnel lock
3 Connecting nipple
4 Product feed line (PVC fabric hose),
not included in scope of delivery!
5 Hose clamp
6 Union nut
7 Product supply
1. Mark water level when wash tank is filled completely
.
2. Shut down main water supply to dishwasher
.
3. Drain water out of dishwasher.
4. Drill a hole for the tank connection approx. 5 cm above the maximum filling level of
the dishwasher.
5. Install tank connection.
6. Hold down the release tab of the funnel lock (pos. 1).
7. Push the funnel lock (pos. 2) upwards and remove it.
8. Push the union nut (pos. 6) over the connecting nipple (pos. 3).
9. Slide the hose clamp (pos. 5) over the product feed line (pos. 4).
10. Push the product feed line (pos. 4) onto the connecting nipple (pos. 3).
11. T
ighten the hose clamp (pos. 5).
12. Connect the product feed line (pos. 4) to the product feed connection and tighten the
union nut clockwise.
13. Connect the product feed line (pos. 4) to the tank connection.
Assembly and installation
16417102610 Rev. 01-12.2020
