Econ 7907EX User Manual

Installation & Operation Manual Proven Quality since 1892
ECON actuator Fig. 7907, type ELA80 – 3000 www.eriks.com
Rev.23 – August, 2023 11

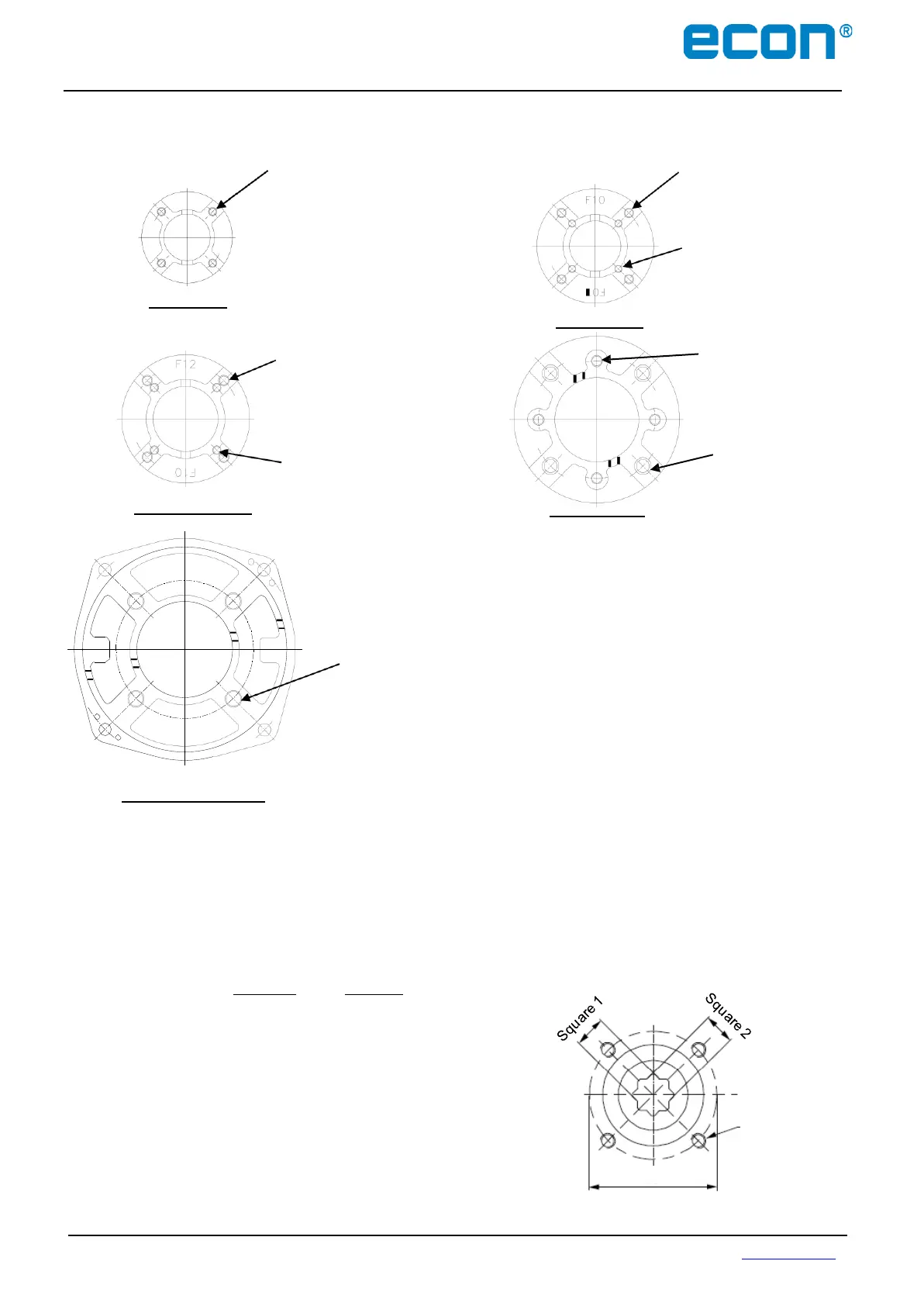

4.2.1 Actuator Mounting Base Details (ISO 5211)
4-M8TAP
D.P12
P.C.D Ø 70
(ISO 5211 F07)
ELA80/100
ELA150/200
4-M10TAP D.P15
P.C.D Ø 102
(ISO 5211 F10)
4-M8TAP
D.P12
P.C.D Ø 70
(ISO 5211 F07)
4-M12TAP
D.P18
P.C.D Ø 125
(ISO 5211 F12)
4-M10TAP D.P15
P.C.D Ø 102
(ISO 5211 F10)
ELA300/500/600
ELA800/1200
4-M12TAP D.P18
P.C.D Ø 125
(ISO 5211 F12)
4-M16TAP D.P24
P.C.D Ø 140
(ISO 5211 F14)
4-M20TAP D . P 30
P.C.D Ø 165
(ISO 5211 F 16 )
ELA2000/2700/3000
4.2.2 Actuator Drive Bushing
ELA actuators have a Double Square (star) driving bush, which can be replaced by another dimension to
fit the valve stem. This means that the actuators are suitable for valves with a parallel or diagonal stem
connection. Also drive bushings with a double-D shape or round shape with keyway are available as an
option. Hereunder the ELA-versions with standard connection and possible double square options can be
found:
Standard Optional
• ELA80 DS 17mm DS 9-11-14-16mm
• ELA100 DS 17mm DS 9-11-14-16mm
• ELA150 DS 17mm DS 11-14-19-22mm
• ELA200 DS 17mm DS 11-14-19-22mm
• ELA300 DS 22mm DS 14-17-19-27mm
• ELA500 DS 27mm DS 14-17-19-27mm
• ELA600 DS 27mm DS 14-17-19-27mm
• ELA800 DS 27mm DS 22mm
• ELA1200 DS 27mm DS 22-30mm
• ELA2000 DS 36mm DS 27-46-55mm
• ELA2000 DS 36mm DS 27-46-55mm
• ELA3000 DS 46mm DS 27-36-55mm
Threaded bolt
holes 4x
Pitch
