3.1.7 Lubrication
ELA-series are totally enclosed units with a permanent lubricated gear train (Moly EP Grease). Once
installed, lubricating the actuator should not be required. However, periodic preventative maintenance will
extend the operating life time of the actuator.

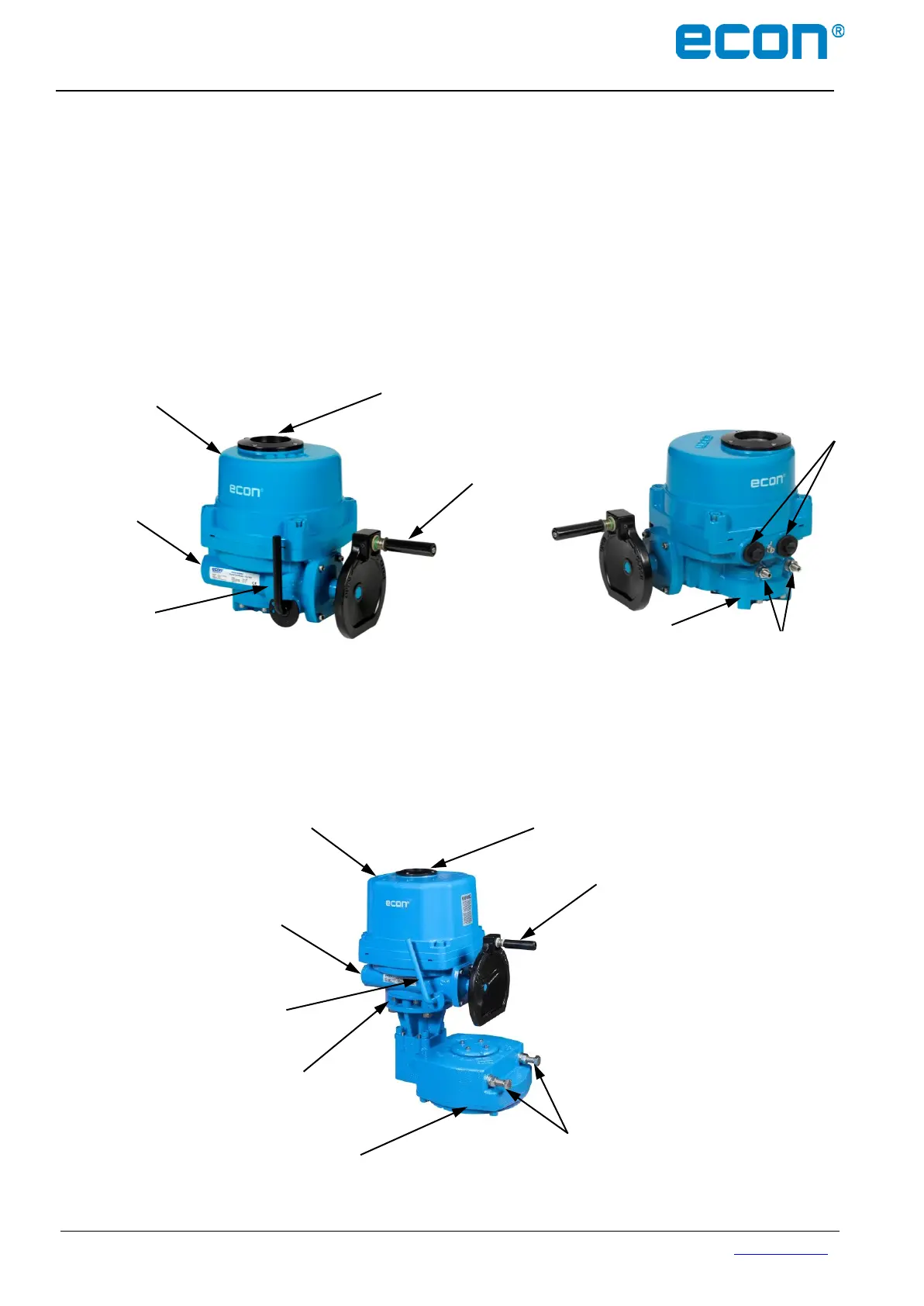

3.2 External Parts for Standard Models
3.2.1 ELA80 - 1200
3.2.2 ELA2000 - 3000 (Actuator + Gear Box)
Body
Handwheel
Top cover
Lever
Window & Indicator
Mechanical
travel stops
Actuator base and
Driving bushing
Conduit
entries
Body
Gear box including
Driving bushing
Mechanical
travel stops
Handwheel
Top cover
Lever
Window & Indicator
Actuator base
