10 GROUNDING

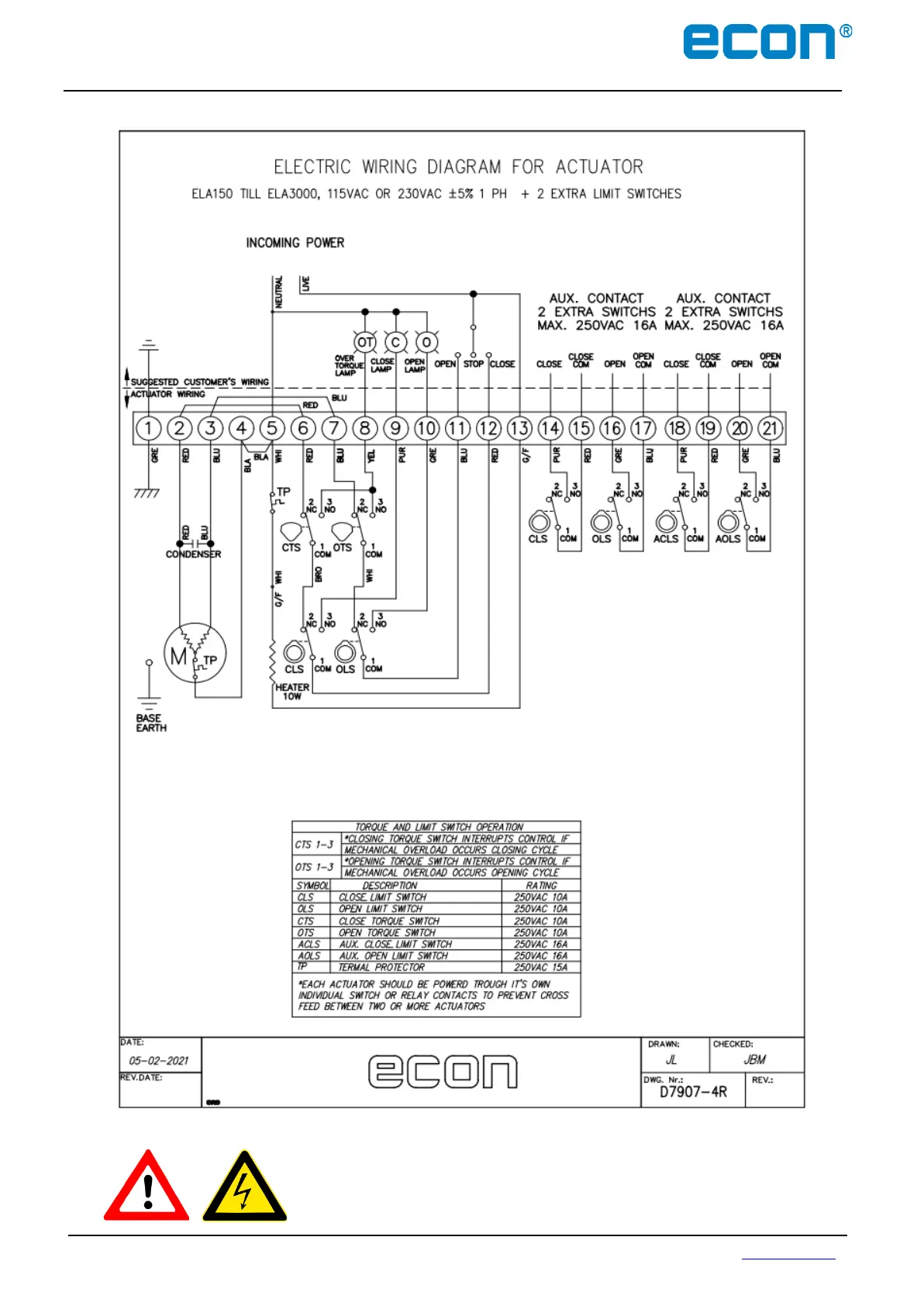

ELA80 - 100 Grounding
Internal Ground External Ground
Terminal Block #1 should be used for internal ground
ELA150 - 3000 Grounding
Internal Ground External Ground
Terminal Block #1 should be used for internal ground
DANGER:
Flameproof Enclosure! Before opening, ensure that there
is no explosive gas or voltage
