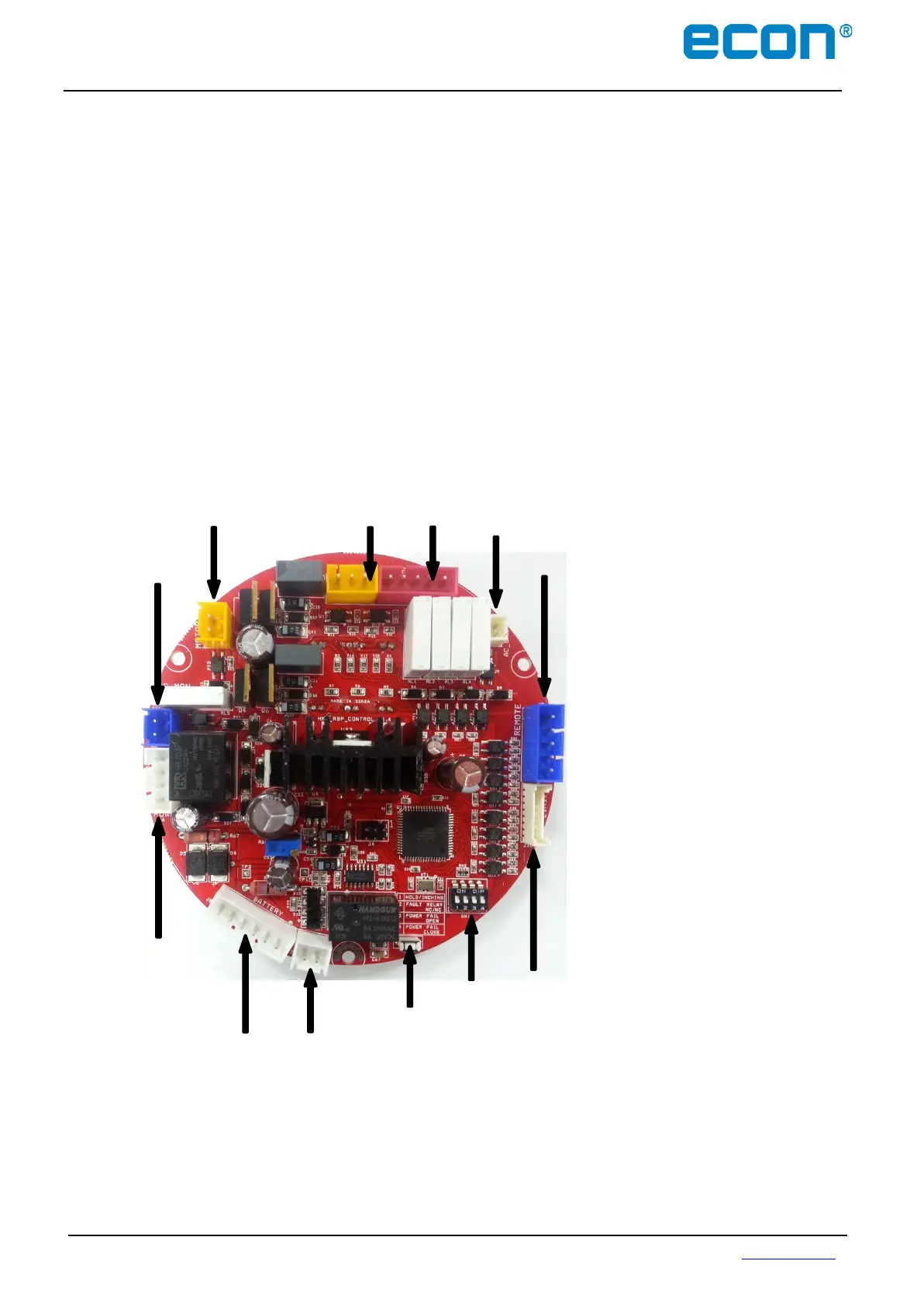

4.11.2 Features
• The actuator unit can be operated in Local or Remote mode, also during power failure.
• The DIP switch settings and functions can be found in the table in paragraph 4.
• NORMAL MODE (on AC POWER): Battery LED blinks 1.5 seconds ON and 0.5 seconds OFF
• BATTERY MODE (on BATTERY POWER) : Battery LED blinks 0.25 seconds ON and 1.75
seconds OFF
4.11.3 Specification
Items
Condition
Electric Power Supply
1 Phase – AC 115 V / 230 V 50/60Hz
Internal Voltage
Control Voltage : DC 24 V / 30 V
Voltage for Space Heater : AC 115/230 V
Power Consumption
40 VA
Temperature / Humidity
-20 ~ 70°C / 60 % RX, MAX.
Actuator functions by DIP
switch settings
DIP Switch setting
DIP switch 1
OFF
INCHING
ON
HOLD
DIP switch 2
OFF
Fault Contact Normal Open
ON
Fault Contact Normal Close
Power Fail action
DIP switch 3
DIP switch 4
FUNCTION
OFF
OFF
STOP
OFF
ON
CLOSE
ON
OFF
OPEN
ON
ON
NO POWER FAIL ACTION
