Econ 7907EX User Manual

Installation & Operation Manual Proven Quality since 1892
ECON actuator Fig. 7907, type ELA80 – 3000 www.eriks.com
Rev.23 – August, 2023 24

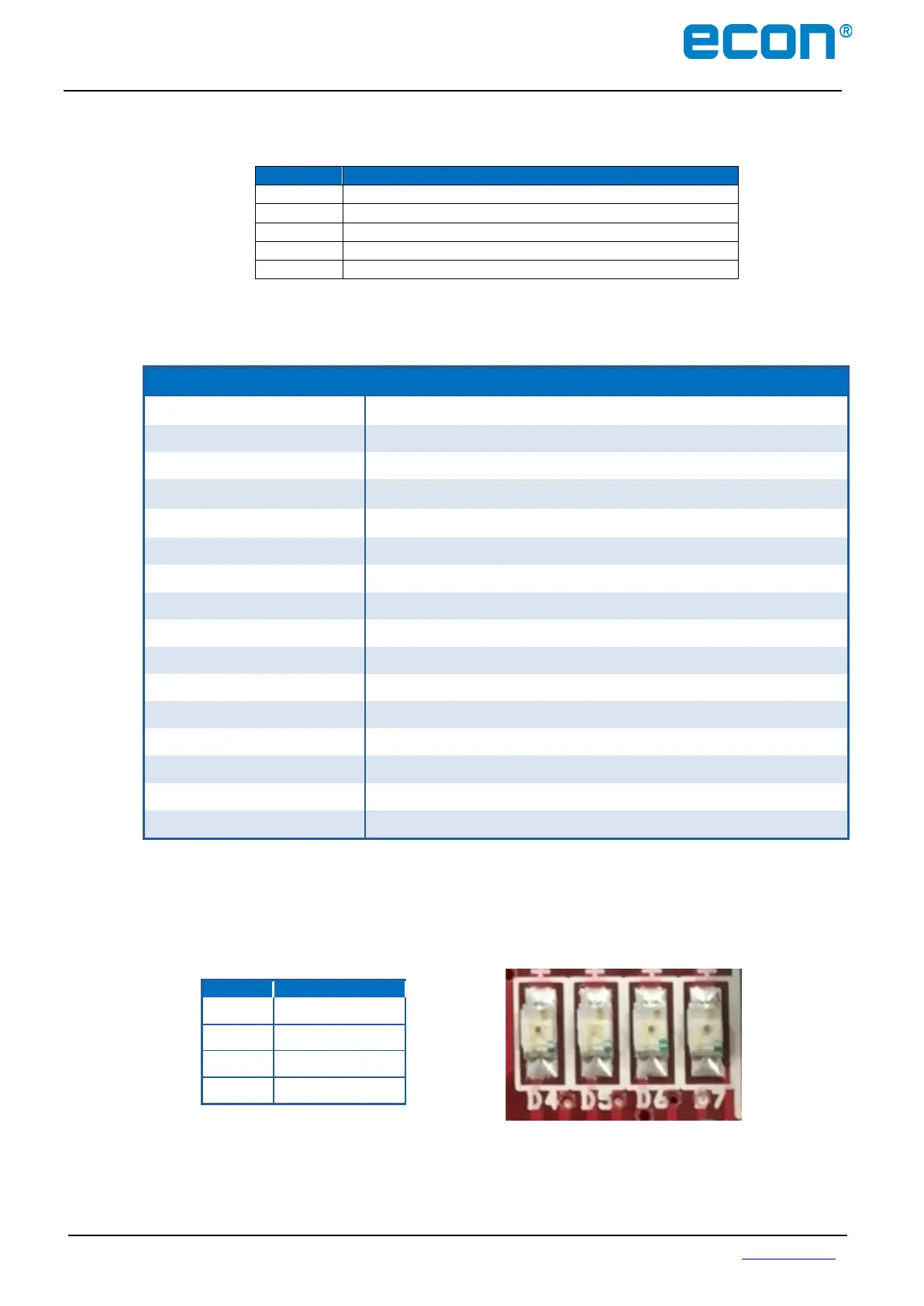

Connector
Purpose
J1 (5-Pin)
Power connection for PCU and motor
J2 (3-Pin)
LCU connection terminal
J5 (7-Pin)
Command and feedback signal, Potentiometer connector
J6 (4-Pin)
Closed (1, 2) & Open (3, 4) Limit Switch connection terminal
J7 (4-Pin)
Closed (1, 2) & Open (3, 4) Relay contact output terminal
PCU-EB Features
Model
PCU-EB-V1.5 (1 Phase)
Power
115/230 VAC ± 10%, 50/60Hz, Max. 4 VA
Input Signal
4~20mA DC, 1~5V DC, 2~10V DC, 0~20mA DC, 0~5V DC, 0~10V DC
Input Impedance
250Ω
Position Impedance
100~10kΩ
Output Signal
4~20mA DC, 1~5V DC, 2~10V DC, 0~20mA DC, 0~5V DC, 0~10V DC
Output Impedance (load)
500Ω Max
Deadtime Adjustment
0.2~7.5 seconds (to be set in 16 steps)
Deadband Adjustment
0.3~7.5% (to be set in 16 steps)
Ambient Temperature
-25°C (-13°F) up to +80°C (176°F)
Ambient Humidity
90% RH Max (non-condensation)
Fault Mode
Fail close, fail open and fail stop
Position Conversion Accuracy
±(0.2~5)% ( depending on conditions)
Dielectric Strength
1500V AC 1 minute
Insulation Resistance
500V DC, 50MΩ
Vibration and Shock
X, Y & Z, 10g (6g based on RMF), Frequency: 0.2~34Hz, Time: 30 minutes
A) LED Signal Indication
LED
Signal
Red
Open
Blue
Power or Auto
Green
Close
Yellow
Manual or Fault
