5.5 Operations

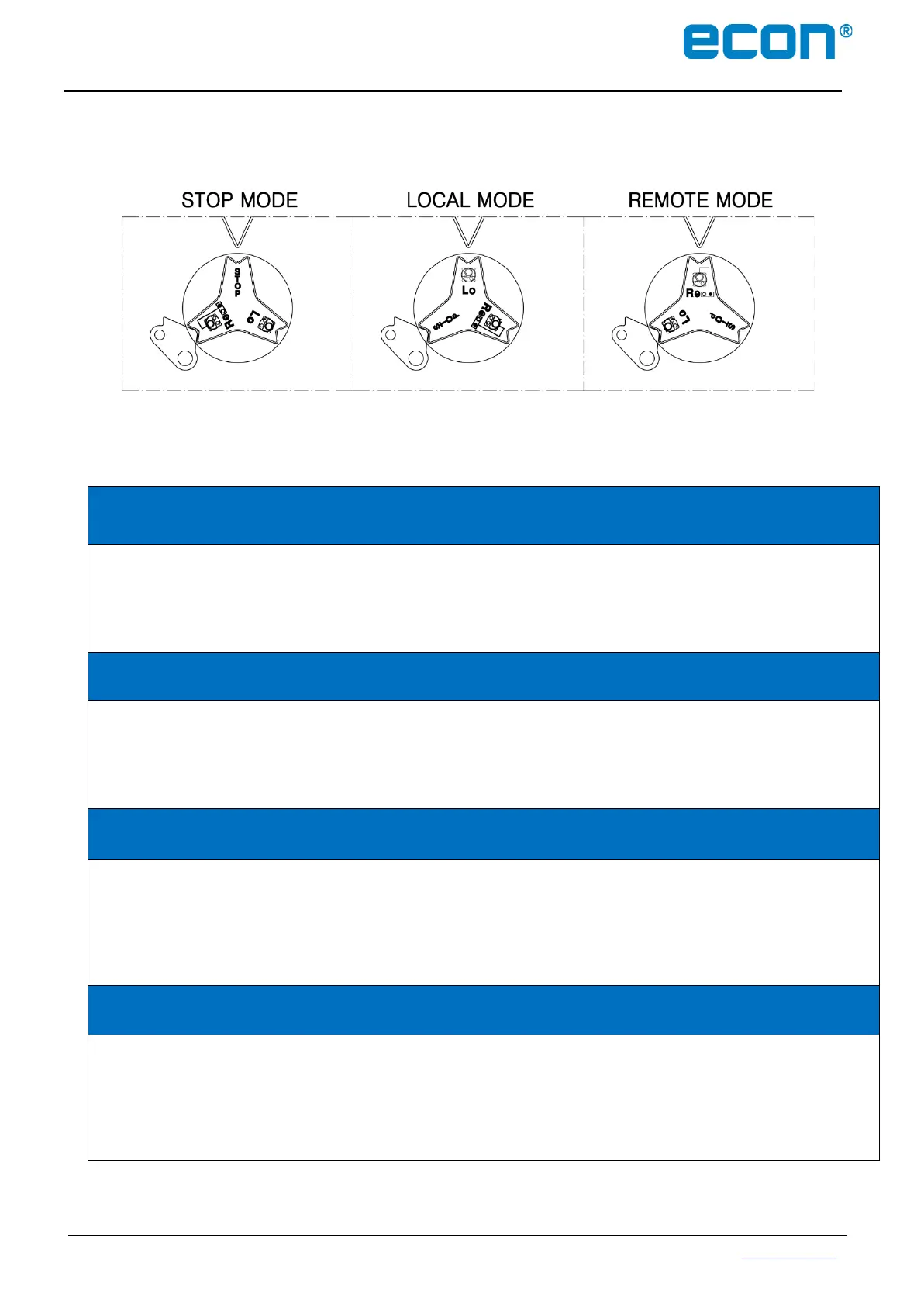

1. Put the selector switch into Local Mode.
2. Use the open/close switch to operate the actuator.
3. In Local Mode the LED indicators will show the below status:
RED LED – ON : Fully Open
GREEN LED – ON : Fully Close
RED or Green LED – Blinking : Opening or closing
Remote (Manual mode) Operation
1. Put the selector switch into Remote Mode.
2. Manual Mode is functional if terminal strip number 5 and 9 are NOT wired.
3. In Manual Mode the LED indicators will show the below status:
BLUE LED – Steady ON : Manual mode
For wiring diagrams see drawings D7907-3 RBP and D7907-4 RBP on page 41-49
Remote (Modulating mode) Operation
1. Put the selector switch into Remote Mode.
2. Modulating Mode is functional if terminal strip number 5 and 9 are wired.
3. In Modulating Mode the LED indicators will show the below status:
BLUE LED – Blinking: Modulating mode
4. For actuator operation please refer to the paragraph 4.10 (PCU settings).
For wiring diagram see drawing D7907-4 RBP+PCU on page 50
1. If the power supply has been switches off, the actuator will be powered by the battery.
2. LOCAL MODE: Operate the Open/Close switch in order to put the actuator in the open or closed p
osition.
3. REMOTE MODE: During power failure, the actuator will follow the power failure settings (DIP
switch settings – see paragraph 4.12.4)
4. NO FAIL ACTION : The actuator will operate the same way as if there was not power failure.
