INSTRUCTIONS MANUAL
-124-

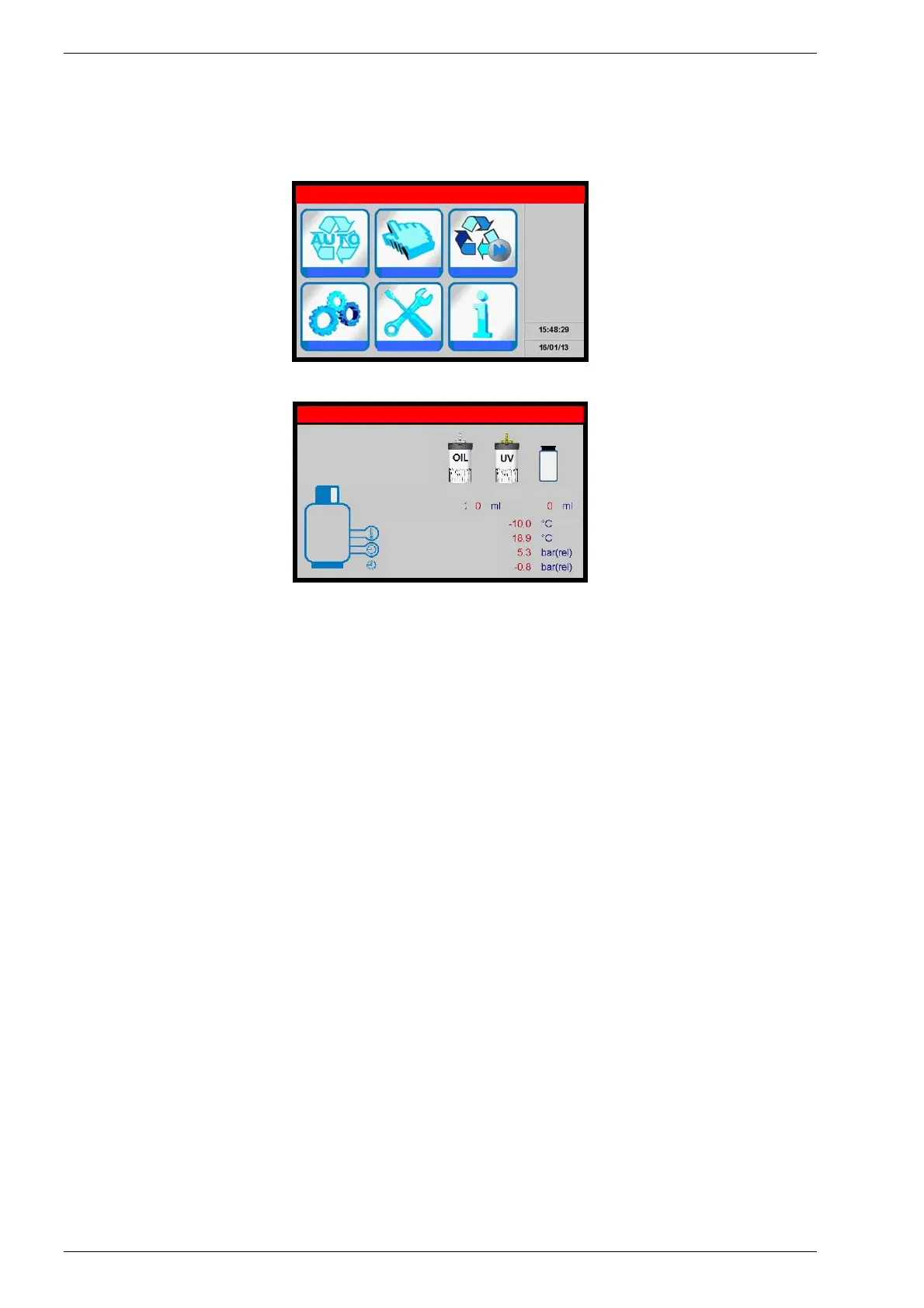

DATA
From the MAIN MENU:
Select the DATA (or press “i” key of the keypad), the following screen will be displayed:
SW V.: Software version
Bottle refrigerant:
o Total: total amount of refrigerant in the storage bottle
o Available: quantity of refrigerant available in the storage bottle.
OIL/UV: sum of the quantity of OIL and DYE in the OIL and DYE containers
Used: quantity of OIL in the USED OIL container.
Ambient temperature: ambient temperature near the service station
Bottle temperature: refrigerant storage bottle temperature
Bottle pressure: refrigerant storage bottle pressure.
A/C pressure: pressure in the service hoses.
Press OK to return to MAIN MENU.
SW V.00.xx.yy
Bottle refrigerant
Total: 3070g
Available: 1070g
mbient temperature
Bottle temperature
Bottle pressure
/C pressure
OIL
UV Used
R134a DATA
AUTOMATIC MANUAL
EXPRESS SERVICE
SETUP
MAINTENANCE
DATA
R134a
