CONTROL PANEL

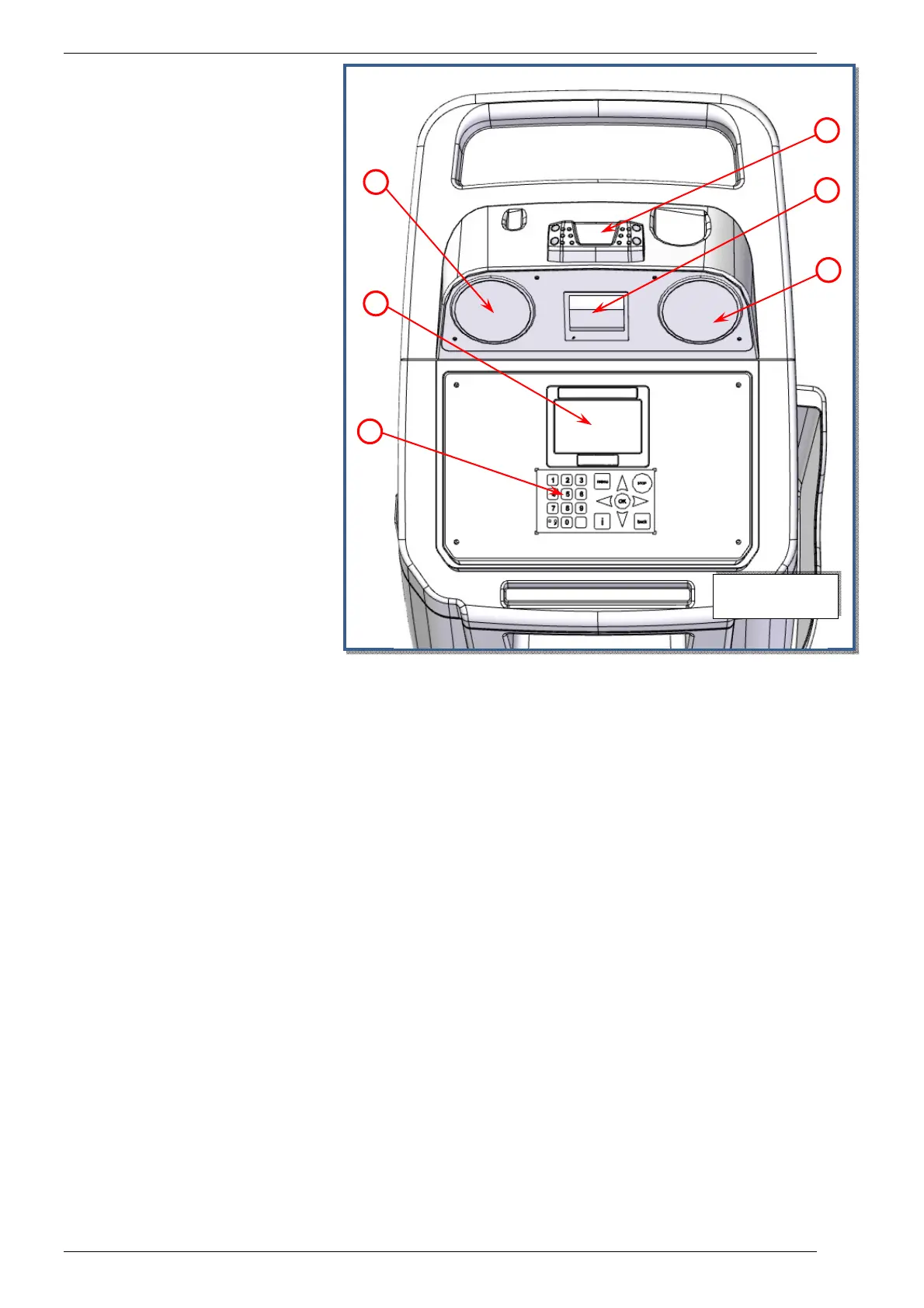

Refer to Fig.5 :
1) High pressure gauge
2) Low pressure gauge
3) Printer
4) 5” Graphic color display
5) Keypad
6) LED Light
LIGHT SIGNALS
Only if the machine is provided with a LED Light (ref 6, Fig.5)
Light signals are the following:
BLUE (STEADY): machine in stand by
GREEN (STEADY): procedure running
GREEN (FLASHING): procedure completed
YELLOW (FLASHING): warning message
RED (FLASHING): alarm message
