The data, information and descriptions, and the technology described herein are the exclusive intellectual property of Ecotechnics S.p.A. and constitute industrial
secrets. Said information is communicated in strict confidentiality; said information may be used only for the purpose for which it is communicated; said information
may not be divulged, communicated, or revealed to third parties and/or reproduced by any means for any reason whatsoever; said information is protected under
applicable Italian competition and industrial property law.
Service manual VA500-VA750 ed.1 ver.5.05 [MANU360.SA0].doc pag.27 - 18/10/2005

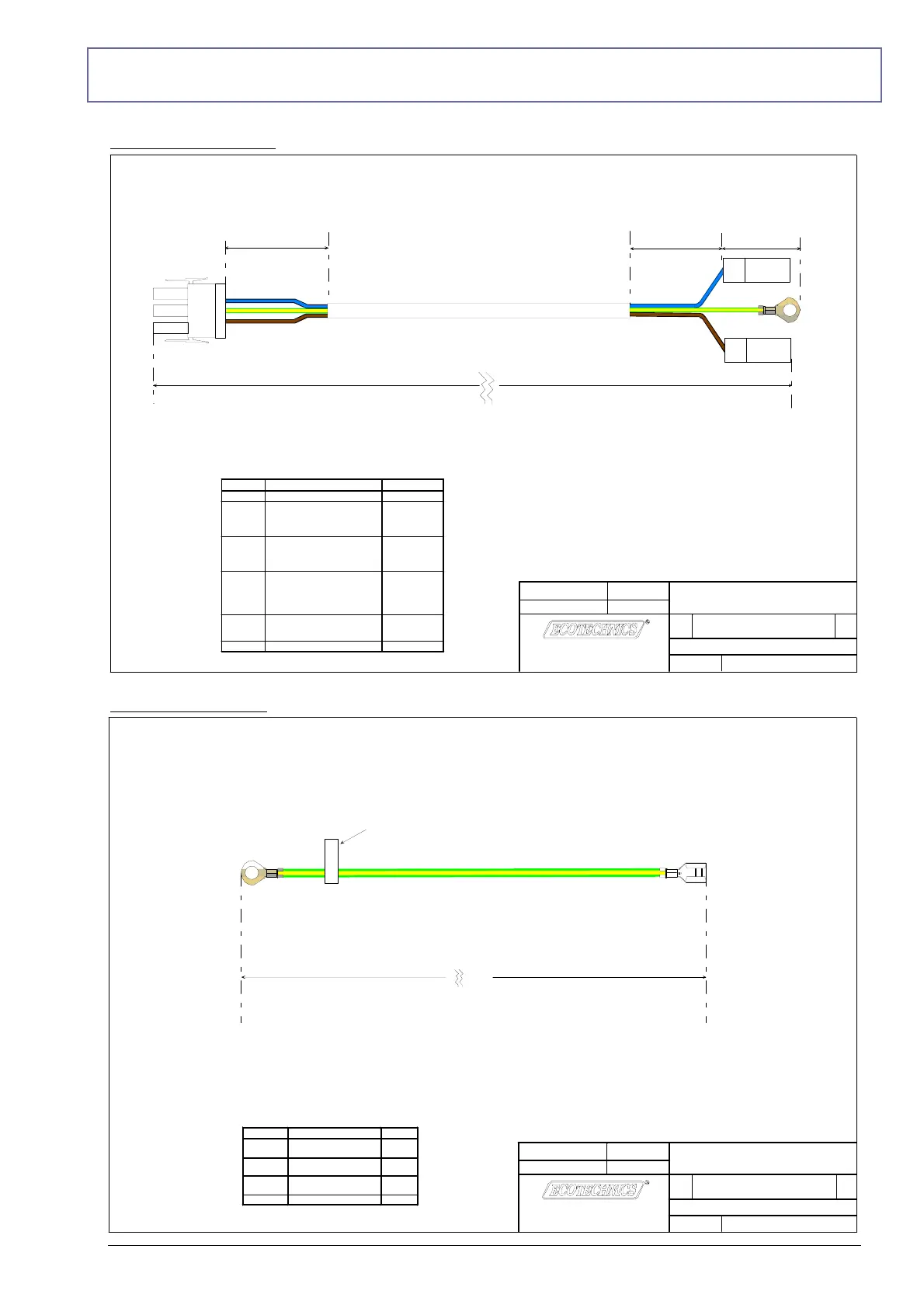

Power supply wiring
Main ground wiring
Di seg nator e
Materia
Cr eato
Modificato
Titolo
Size
Codic e
Rev
Note
Scala
Classificazione
via L. Longo 21/23, 50019 Sesto Fiorentino Firenze - Italy
Tel. +39.055.4207372 Fax +39.055.4252610
http:\\www.ecotechnics.com
E-mail: ecotechnics@ecotechnics.com
Fallerini L.
A4
GRELT001.A
0
Le parentesi quadr e indicano l e caratteri stiche da control lare
24/05/2005.
1:1
Cablaggio alimentazione serie 1500-2500 Mate-N-Lock
1250
max 70
50
T
N
L
[C]
[A]
max 70
J3
Tj
[B]
ITEM PART NUMBER Q.TI
T
Capocorda a occhiello
Φ
6 mm
1
N Faston femmina Stocko 6,3 x
0.8 mm [RSB 7961.020] +
Coprifaston Colombo Sergio
[63N004STK]
1
L
Faston femmina Stocco 6,3 x
0.8 mm [RSB 7961.020] +
Coprifaston Colombo Sergio
[63N004STK]
1
J3
Connettore 3 poli
Colombo Sergio
CS-M03 LK
Oppure
Mate-N-Lock Tyco 1-480700-0
1
TJ Contatti Tyco
925715-1 oppure
925715-2
3
Wire Wire 3*1,5 mmq CEI 20-22 1250 mm
Disegnatore
Creato
Modificato
Titolo
Size
Codic e
Rev
Note
Scala
Classificazione
via L. Longo 21/23, 50019 Sesto Fiorentino Firenze - Italy
Tel. +39.055.4207372 Fax +39.055.4252610
http:\\www.ecotechnics.com
E-mail: ecotechnics@ecotechnics.com
Fallerini L.
A4
0
Le par entesi quadre i ndicano le car atter isti che da control lare
23/05/2005.
1:1
Cablaggio terra principale
GRELT002
190
[A]
T1
T2
W
MAIN GROUND
Label
[B]
ITEM PART NUMBER Q.TI
T1 Capocorda a occhiello
Φ
6 mm UL E232316
1
T2 Faston femmina Stocko
[RSB 7961.020]
1
Wire Wire AWG 14 giallo
verde1015
190 mm
Label Etichetta adesiva 1
