Ecotechnics VA500 - Exploded View Assembly; Model XK360 Exploded View

The data, information and descriptions, and the technology described herein are the exclusive intellectual property of Ecotechnics S.p.A. and constitute industrial
secrets. Said information is communicated in strict confidentiality; said information may be used only for the purpose for which it is communicated; said information
may not be divulged, communicated, or revealed to third parties and/or reproduced by any means for any reason whatsoever; said information is protected under
applicable Italian competition and industrial property law.
Service manual VA500-VA750 ed.1 ver.5.05 [MANU360.SA0].doc pag.37 - 18/10/2005
1
2
4
5
6 7
10
11
12
13
14
15
16
9
8
18
17
19
21
20
22
23
24
25
29
33
30
31
32
26
27
28
34
35
36
37
38
39
3
(
*
)
refer to “s
p
are
p
art list” cha
p
ter for other front
p
lastic cover codes
(
**
)
could be re
p
laced from CRP4410
,
de
p
endin
g
on the
p
ersonalization
ITEM COD
E
1. High pressure manom. MAN3000 2. High pressure manom. MAN3000 3. Low pressure manom. MAN3100 4. Moisture indicator IND2001 5. Dryer filter FLT5002 6. Dryer filter FLT5002 7. Low pressure filter kit RAC6301 8. condenser GRCND07 9. Fan CND2530+CND2535 10. High pressure filter kit RAC6300
11. membrane keypad SCH5580
12. console panel CRP3600-V
13. motherboard value_x SCH4001
14. manual valve 1/8gas RAC5902
15. quick fitting for new oil RAC5890
16. new oil container GRCNT01
17. front sticker ADE5581
18. front plastic PLA2410-01(*)
19. front sheet metal CRP4415(**)
20. front wheel RUO7070
21. front wheel spacer CRP3625
22. Rear wheel 250mm RUO7110
23. compressor GRCMP07
24. vacuum pump PMP3810
25. refrigerant bottle fix nut M6BOLT
26. LP aluminium coupler RAC3005
27. serial port connection ELT5004
28. HP aluminium coupler RAC3006
29. used oil container GRCNT10
30. scale spacer CRP1240
31. refrigerant scale 30kg CEL9500
32. scale spacer CRP1240
33. used oil container support CRP3545
34.
bottle plate CRP1233
35. bottle plate fixer CRP1220
36. rear plastic cover PLA2400-01
37. refrigerant bottle 12l CNT4002
38. safety valve 15bar VLV220
39. main power switch ELT3321

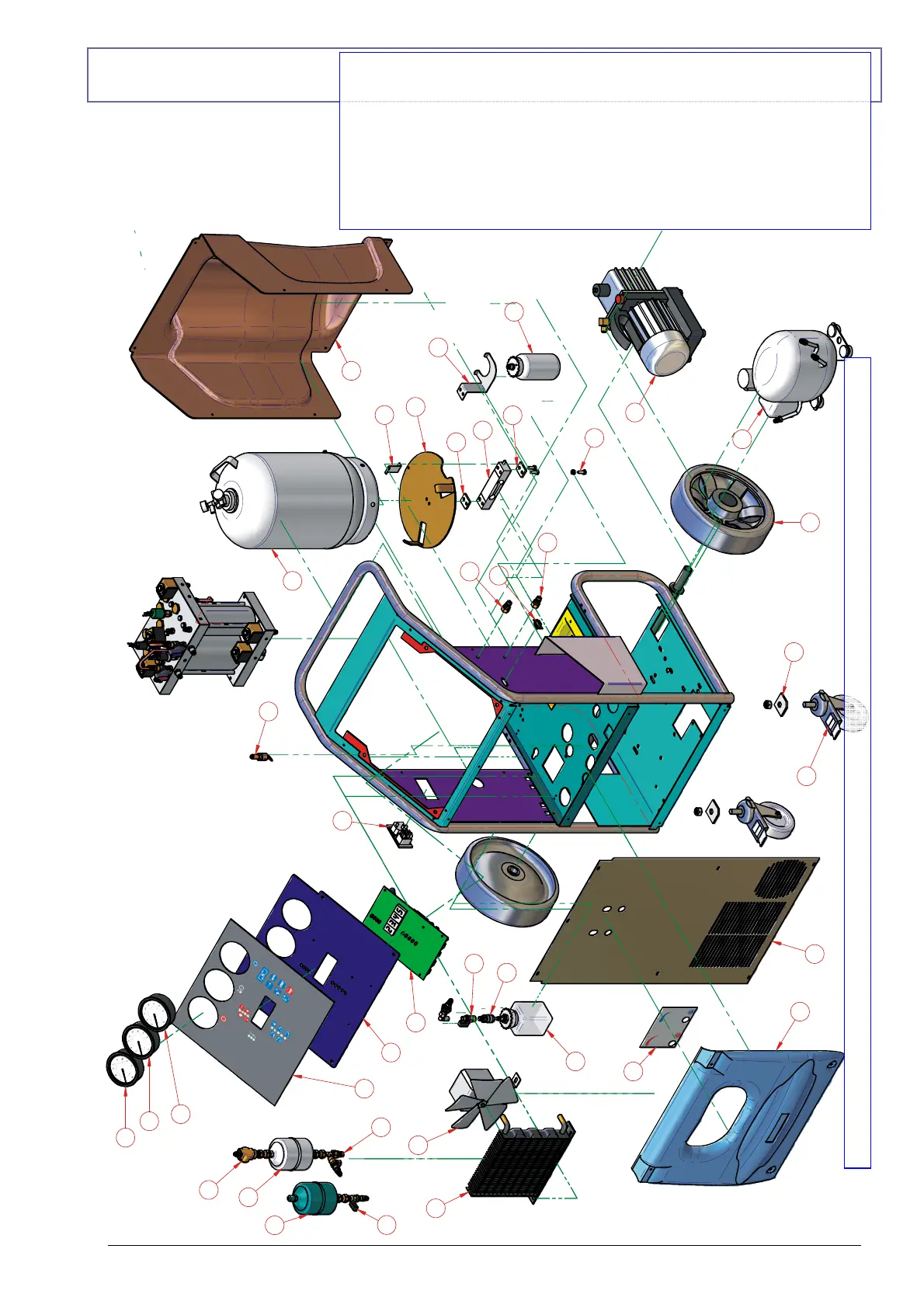

EXPLODED
VIEW KEY
MODEL XK360
