Ecotechnics VA500 - Main Switch Wiring + Choke; 2 Electronic Valve Wiring (Mate_N_Lock)

The data, information and descriptions, and the technology described herein are the exclusive intellectual property of Ecotechnics S.p.A. and constitute industrial
secrets. Said information is communicated in strict confidentiality; said information may be used only for the purpose for which it is communicated; said information
may not be divulged, communicated, or revealed to third parties and/or reproduced by any means for any reason whatsoever; said information is protected under
applicable Italian competition and industrial property law.
pag.28 - 18/10/2005 Service manual VA500-VA750 ed.1 ver.5.05 [MANU360.SA0].doc

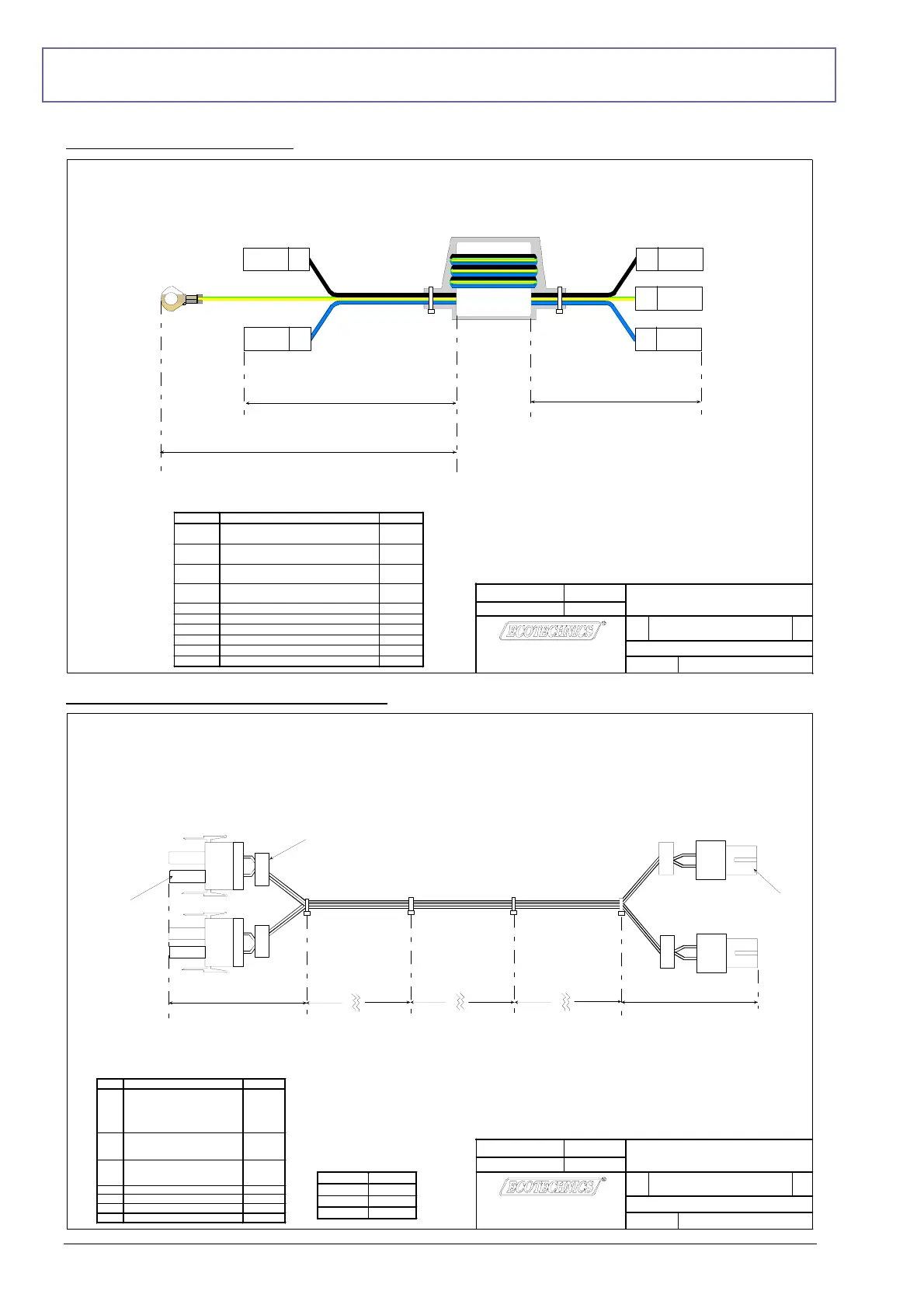

Main switch wiring + choke
2 electronic valve wiring (mate_n_lock)
Disegnatore
Materia
Creato
Modificato
Titolo
Size
Codic e
Rev
Note
Scala Classificazione
v ia L. Longo 21/23, 50019 Sesto Fiorentino Firenze - Italy
Tel. +39.055.4207372 Fax +39.055.4252610
http:\\www.ecotechnics.com
E-mail: ecotechnics@ecotechnics.com
Fallerini L.
A4
1
Le parentesi q uadre indicano le caratteristi che da controll are
11/05/2005.
1:1
Cablaggio interruttore + ferrite
T1
N1
L1
T2
N1
L1
GRELT005
WN
WL
WT
F
H
TT
150
210
70
[A]
[B]
ITEM PART NUMBER Q.TI
T2
Capocorda a occhiello Φ 5 mm
[3378.02]
2
T1 Faston femmina 6,3 mm [RSB
7961.020] + Coprifaston [63N004STK]
1
N1 Faston femmina 6,3 mm [RSB
7961.020] + Coprifaston [63N004STK]
2
L1 Faston femmina 6,3 mm [RSB
7961.020] + Coprifaston [63N004STK]
2
WN Wire 14 AWG 300 V 105 °C blue 500
WL Wire 14 AWG 300 V 105 °C black 500
WT Wire 14 AWG 300 V 90 °C yell\green 550
F Ferrite 1
H Termorestringente 100 mm
T Fascette 2
Disegnatore
Materia
Cr eato
Modif ic at o
Titolo
Size
Codice
Rev
Note
Scala Classificazione
v ia L. Longo 21/23, 50019 Sesto Fiorentino Firenze - Italy
Tel. +39.055.4207372 Fax +39.055.4252610
http:\\www.ecotechnics.com
E-mail: ecotechnics@ecotechnics.com
Fallerini L.
A4
0
Le parentesi q uadre indi cano le car atteristiche da control lare
11/05/2005.
1:1
Cablaggio due bobine Mate_N_Lock serie 1500-2500
GRELT002B.A
Jev2
J 10
J7
150
100
100
Jsx Jdx
J7 JEV2
J10 JEV3
[A]
[B]
Tj
Tjev
F
F
[C]
Jev3
F F
150
150
Label
ITEM PART NUMBER Q.TI
J
7, 1 0
Connettori 2 poli
Colombo Sergio
CS-M02 LK
Oppure
Mate-N-Lock Tyco 1-480698-0
2
Tj Contatti Tyco
925715-1 oppure
925715-2
4
JEV
2,
3
PORTA FEMMINA VOLANTE
TERM. 6,3 mm 2 VIE Sergio
Colombo 63N011
2
Tjev Faston femmina 6,3 x 0.8 mm 4
Label Etichette adesive 4
Wire Wire 20 awg black 2600 mm
F Fascette 4
