Service manual VA500-VA750 ed.1 ver.5.05 [MANU360.SA0].doc pag.39 - 18/10/2005

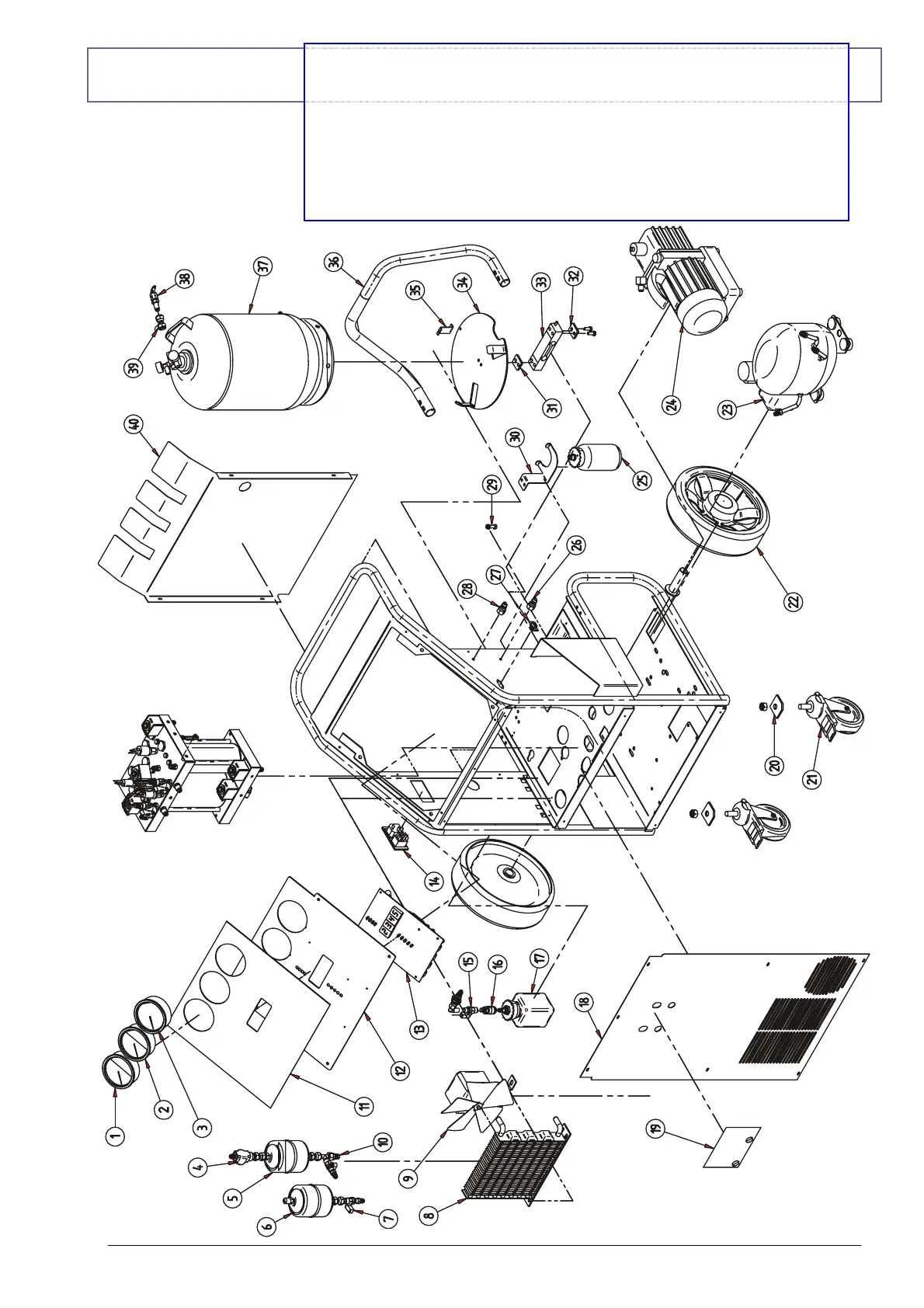

MODEL XK385
ITEM COD
1. High pressure manom. MAN3000
2. High pressure manom. MAN3000
3. Low pressure manom. MAN3100
4. Moisture indicator IND2001
5. Dryer filter FLT5002
6. Dryer filter FLT5002
7. Low pressure filter kit RAC6301
8. condenser GRCND07
9. Fan CND2530+CND2535
10. High pressure filter kit RAC6300
11. membrane keypad SCH5580
12. console panel CRP3600-V
13. motherboard value_x SCH4001
14. main power switch ELT3321
15. manual valve 1/8gas RAC5902
16. quick fitting for new oil RAC5890
17. new oil container GRCNT01
18. front sheet metal CRP4415
19. front sticker ADE5581
20. front wheel spacer CRP3625
21. front wheel RUO7070
22. Rear wheel 250mm RUO7110
23. compressor GRCMP07
24. vacuum pump PMP3810
25. used oil container GRCNT10
26. LP aluminium coupler RAC3005
27. serial port connection ELT5004
28. HP aluminium coupler RAC3006
29. refrigerant bottle fix nut M6BOLT
30. used oil container support CRP3545
31. scale spacer CRP1240
32. scale spacer CRP1240
33. refrigerant scale 30kg CEL9500
34.
bottle plate CRP1233
35. bottle plate fixer CRP1220
36. Bottle rear protection pipe CRP4420
37. refrigerant bottle 12l CNT4002
38. safety valve 15bar VLV220
39. double pipe union RAC5998
40. Rear sheet metal cover CRP4405
