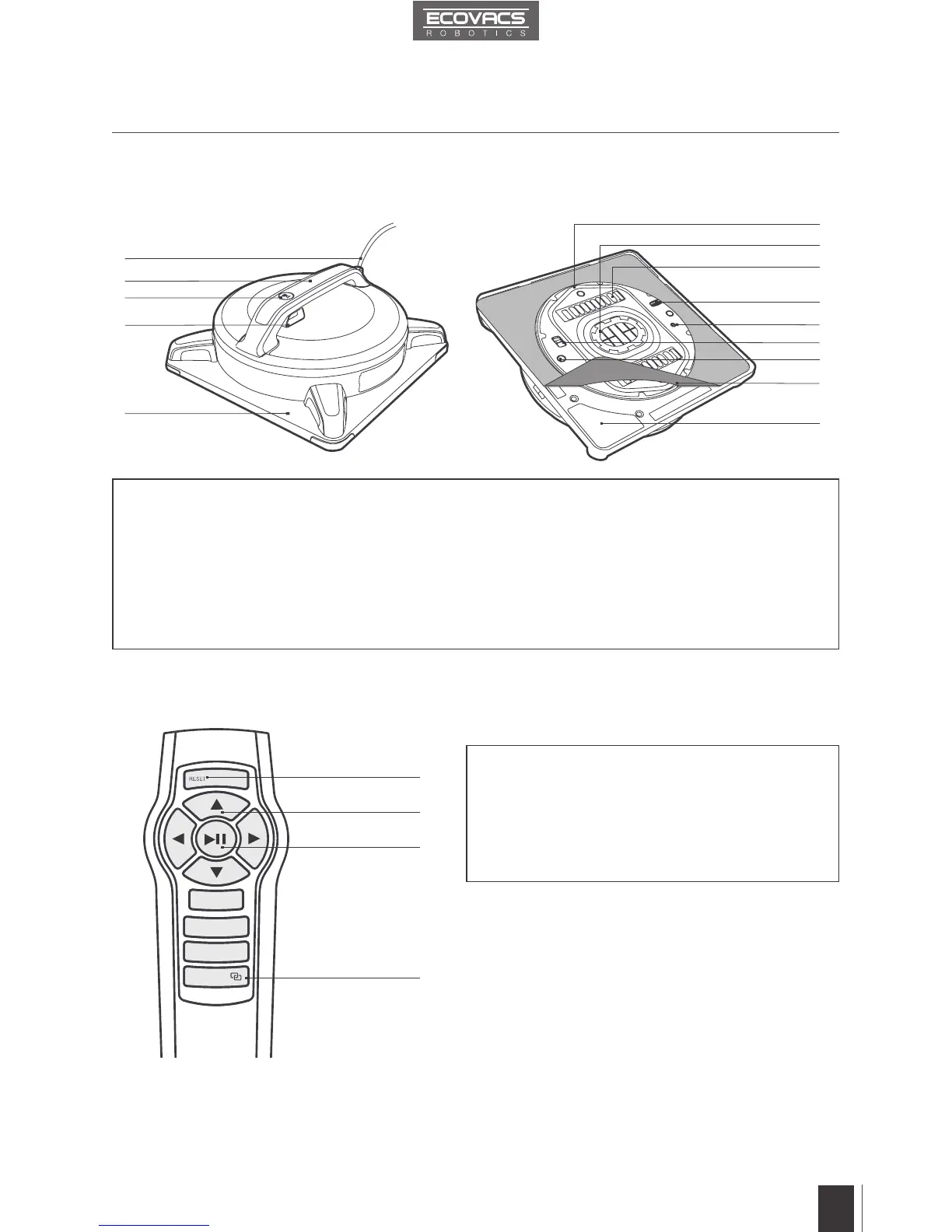

ECOVACS Winbot 9 - Product Diagram

5
EN
Remote Control
1. Power Cord
2. Handle
3. Status Indicator Light and
START/PAUSE Button
4. Air Release Trigger
5. Cleaning Pad Plate
6. Squeegee
7. Cupule
8. Driving Treads
9. Wheel Sensor
10. Bottom Status
Indicator Light
11. Bottom Power Switch
12. Edge Detection
Sensors
13. Cleaning Pad
14. Cleaning Pad Velcro
10
11
12
13
14
9
8
7
6
1
2
3
4
1
2
3
4
5
1. RESET Button
2. Direction Control Buttons
3. START/PAUSE Button
4. Remote Control Pairing Button
2. Package Contents and Technical Specications
2.3 Product Diagram
Robot
