22
ECOWATER
SYSTEMS
Service Information
RELIEVING WATER PRESSURE WITH
THE BYPASS VALVE(S)
CAUTION: Always relieve water pressure in the
Central Water Filtration System, as described
below, before removing parts from the valve or
mineral tank.
DE-PRESSURIZE
1. Put bypass valve(s) into Bypass position.
2. Place filter valve in Backwash position by pressing
and holding the RECHARGE button for a few sec-
onds to start a recharge.
PRESSURIZE
1. Put bypass valve(s) into Service position.
2. Return filter valve to Service position by pressing
the RECHARGE button several times to advance
the valve through the remaining cam positions of
the recharge cycle.
ALTERNATE METHODS:

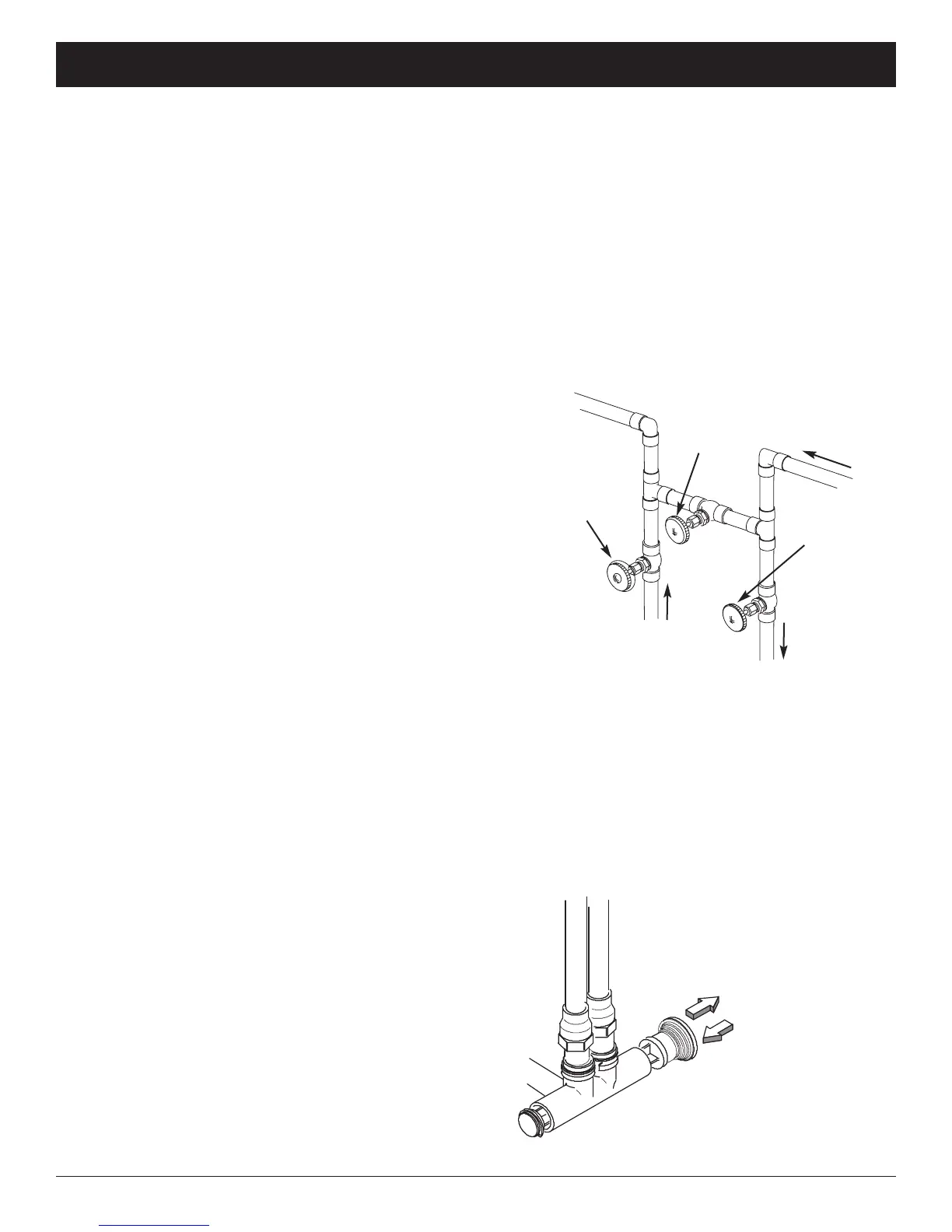

3-VALVE BYPASS (See Figure 32)
DE-PRESSURIZE
1. Close the INLET valve.
2. Open HOT and COLD filtered water house faucets.
3. Close the OUTLET valve and open the BYPASS
valve.
4. Close all house faucets.
PRESSURIZE
1. Open HOT and COLD house faucets.
2. Close the BYPASS valve and open the OUTLET
valve.
3. Slowly, open the INLET valve.
4. Close all house faucets.
ECOWATER SYSTEMS BYPASS VALVE
(See Figure 33)
DE-PRESSURIZE
1. Close the house main water supply valve.
2. Open HOT and COLD filtered water house faucets.
3. Push the bypass valve handle to Bypass position.
4. Optional: For unfiltered water bypass to house
faucets, reopen the main water supply valve.
PRESSURIZE
1. Open main water supply valve if it is closed.
2. Open HOT and COLD house faucets.
3. Pull the bypass valve handle to Service position.
4. Close all house faucets.
BYPASS
VALVE
Pull Stem Outward
for Service
EcoWater Systems Bypass Valve
3-Valve Bypass
To
Central
Water Filter
From
Central
Water Filter
Water Flow
Push Stem Inward
for Bypass
OUTLET
VALVE
INLET
VALVE
For Service
Close Bypass Valve.
Open Inlet & Outlet
Valves.
For Bypass
Open Bypass Valve.
Close Inlet & Outlet
Valves.
FIG. 32
FIG. 33
