EcoWater ERR 3502R30 - Installation Planning; Inlet;Outlet Plumbing and Other Requirements

5
INLET / OUTLET PLUMBING OPTIONS
= ALWAYS INSTALL either an EcoWater Systems bypass
valve #7214383, or a 3-valve bypass system. Bypass
valves allow you to turn off water to the conditioner/
refiner for repairs if needed, but still have water in
house pipes.
OTHER REQUIREMENTS
= A drain is needed for recharge discharge water. A floor
drain is preferred, close to the EcoWater Systems
conditioner/refiner. A laundry tub, standpipe, etc., are
other options (See Figure 1B).
= A 120V, 60 Hz, grounded, continuously “live” electrical
outlet is needed, in a dry location near the EcoWater
Systems conditioner/refiner.
NOTE: The Commonwealth of Massachusetts plumbing
code 248-CMR shall be adhered to. A licensed plumber
shall be used for this installation.
floor drain
valve drain hose
brine
tank
overflow
hose
TWO--TANK
MODEL
1--1/2”
airgap
INLET
OUTLET
3-- valve
bypass system
inlet valve
outlet valve
bypass valve
floor drain
NOTE: Faceplate and support
not shown for clarity of drawing.
Tie or wire valve drain hose in place
to keep over floor drain.
brine tank
overflow hose
valve drain hose
CABINET
MODEL
1--1/2”
airgap
power supply
(included)
to
controller
INLET
OUTLET
HARD
WATER
HARD
WATER
CONDITIONED
WATER
bypass valve
#7214383
to
controller
120V,
outlet
60 Hz

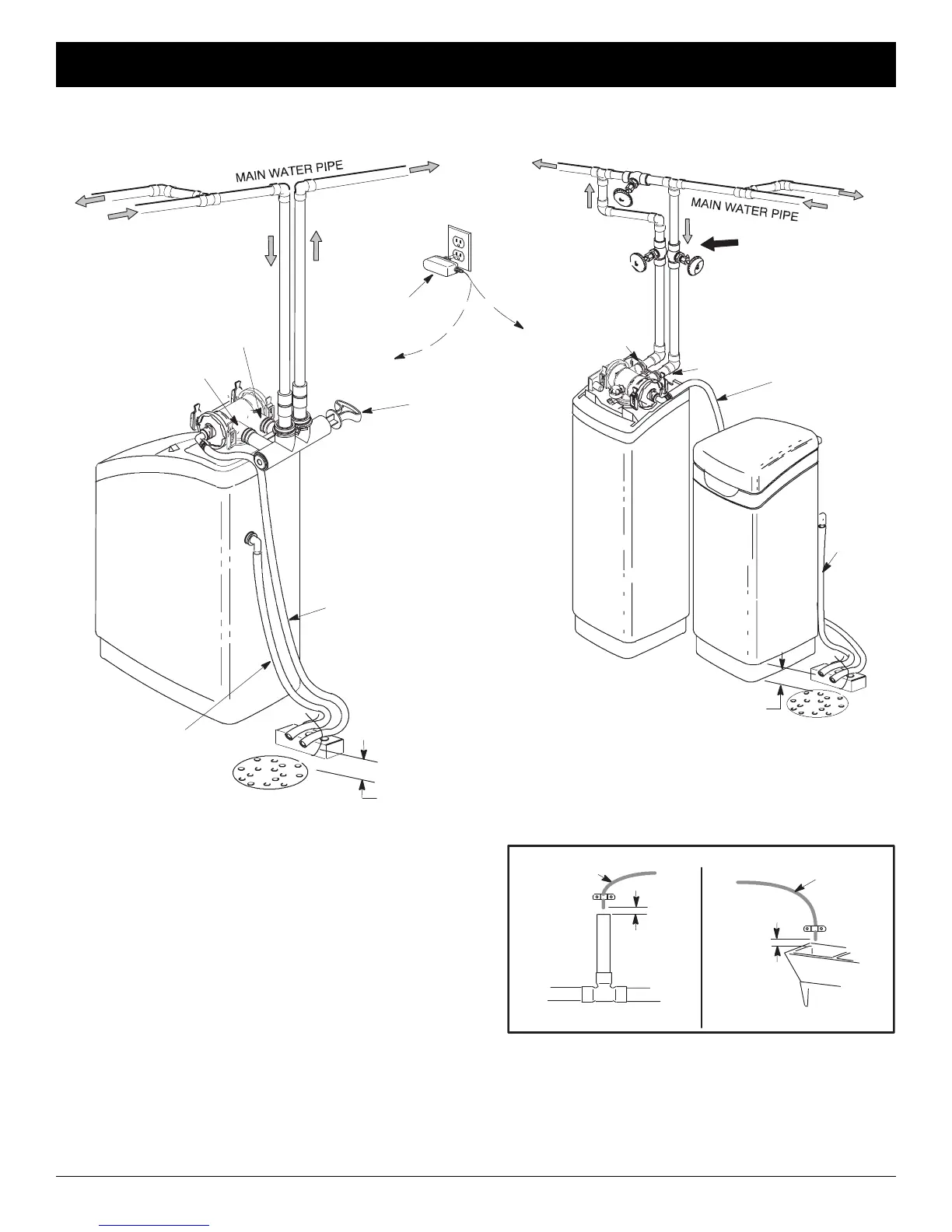

FIG. 1
TYPICAL INSTALLATION DRAWINGS
ECOWATER
S Y S T E M S
Planning Installation
STANDPIPE
1--1/2”
airgap
drain
hose
1--1/2”
airgap
drain
hose
LAUNDRY TUB
DRAIN OPTIONS
FIG. 1B
