Assembly
1. Water softeners are factory assembled. During installation, remove the Salt Hole Cover. Set aside to prevent
damage. Check the brinewell to be sure it is secured and vertical (see Figure 1). Slide Faceplate Cover
forward to expose back valve assembly.
2. Lift the brine valve out of the brinewell. Be sure the float stem is parallel to stand tubeso sealswill seatproperly
during operation. Replace the brine valve in the brinewell bottom and install the Brinewell Cover.
3. Install the brine tank overflow grommet and elbow in the 2 cm diameter hole in the back of the salt storage
tank sidewall.
Grommet
Elbow
Nozzle Assembly
Brine Tubing
Salt
Storage
Tank
Brinewell
Brine Valve
Brinewell
Cover
Float Stem
Faceplate Cover
Salt Hole Cover

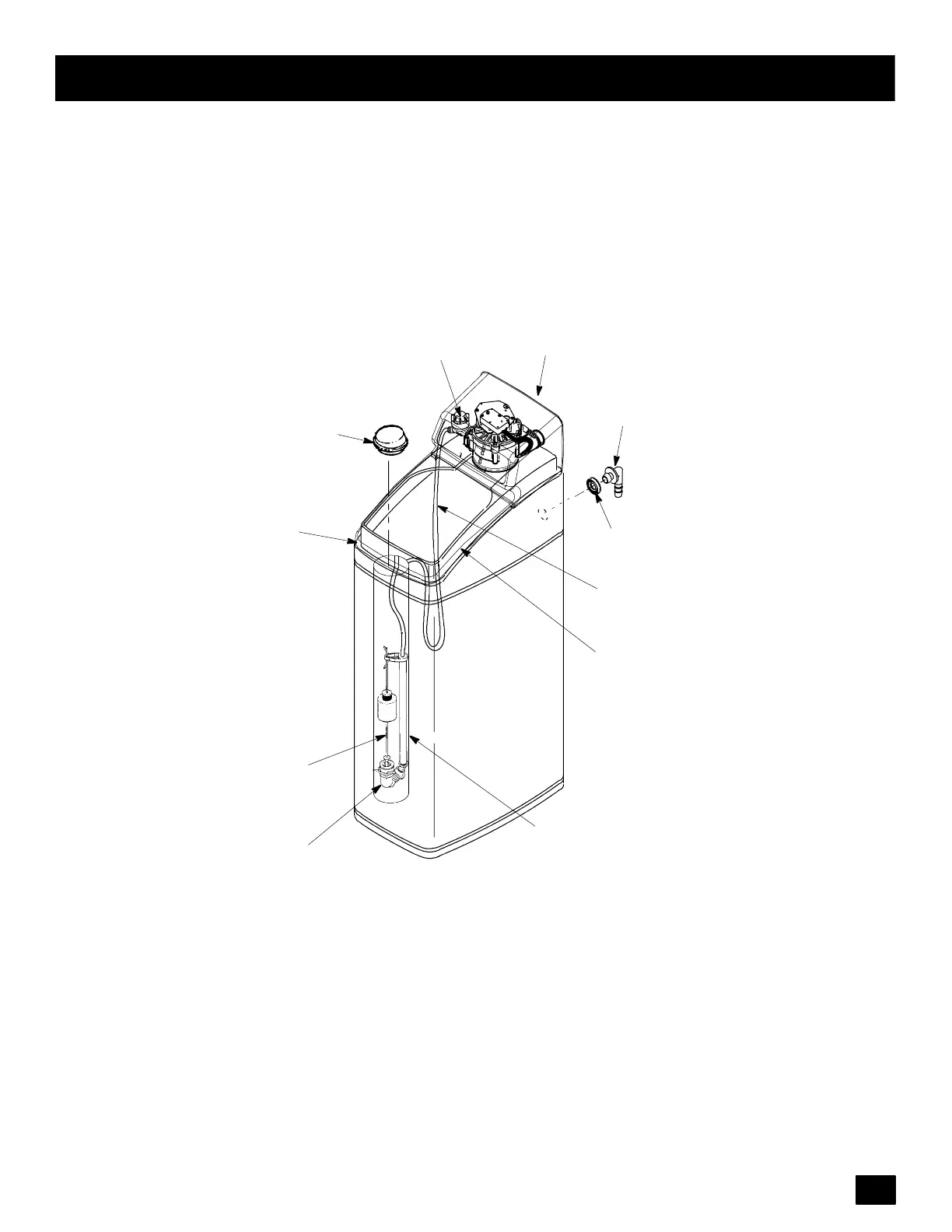

Figure 1
