ECOWATER
SYST E MS
Planning Installation
Inlet -- Outlet Plumbing Options
• ALWAYS INSTALL either a single b ypass valve (not included) or a 3 valve bypass system (not included).
Bypass valves allow you to turn off water to the softener for repairs if needed, but still have water in house
pipes.
• Use 3/4” (minimum) pipe and fittings.
• Use sweat copper... or, threaded pipe... or, PVC plastic pipe... or, other approved plumbing.
NOTE: Salt Hole and Faceplate cover not
shown for clarity of drawing.
Tieorwirevalvedrainhoseinplace,to
keep over floor drain.
Hard
Water
Conditioned
Water
Floor Drain
Salt Storage Tank
Overflow Hose
4cmAirgap
INLET
OUTLET
Valve Drain Hose
Transformer
To Timer
NOTE: Air gap requirements on Fig. 2.
3/4” pipe and fittings
To Ou tside
Facets
inlet valve
outlet valve
bypass valve

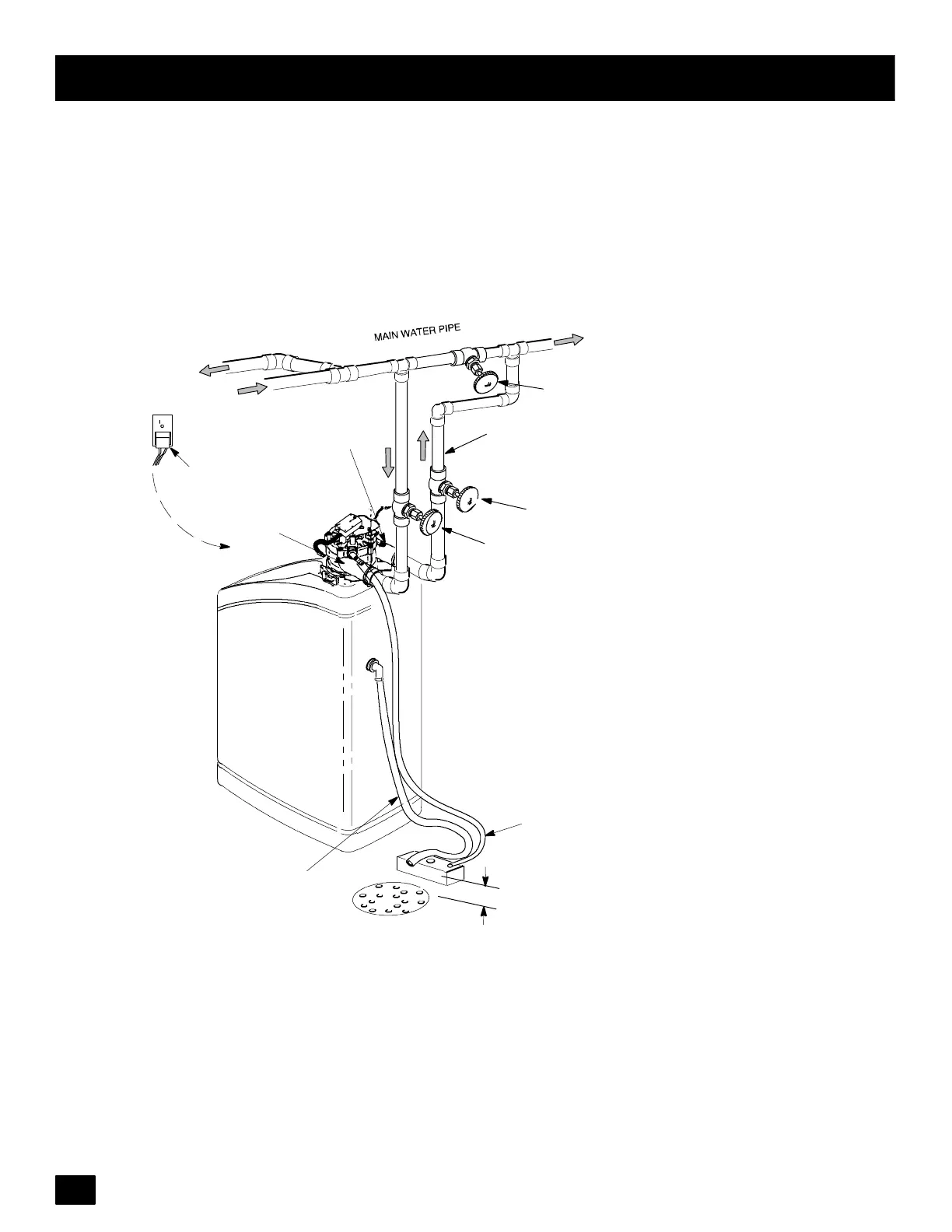

Figure 2
