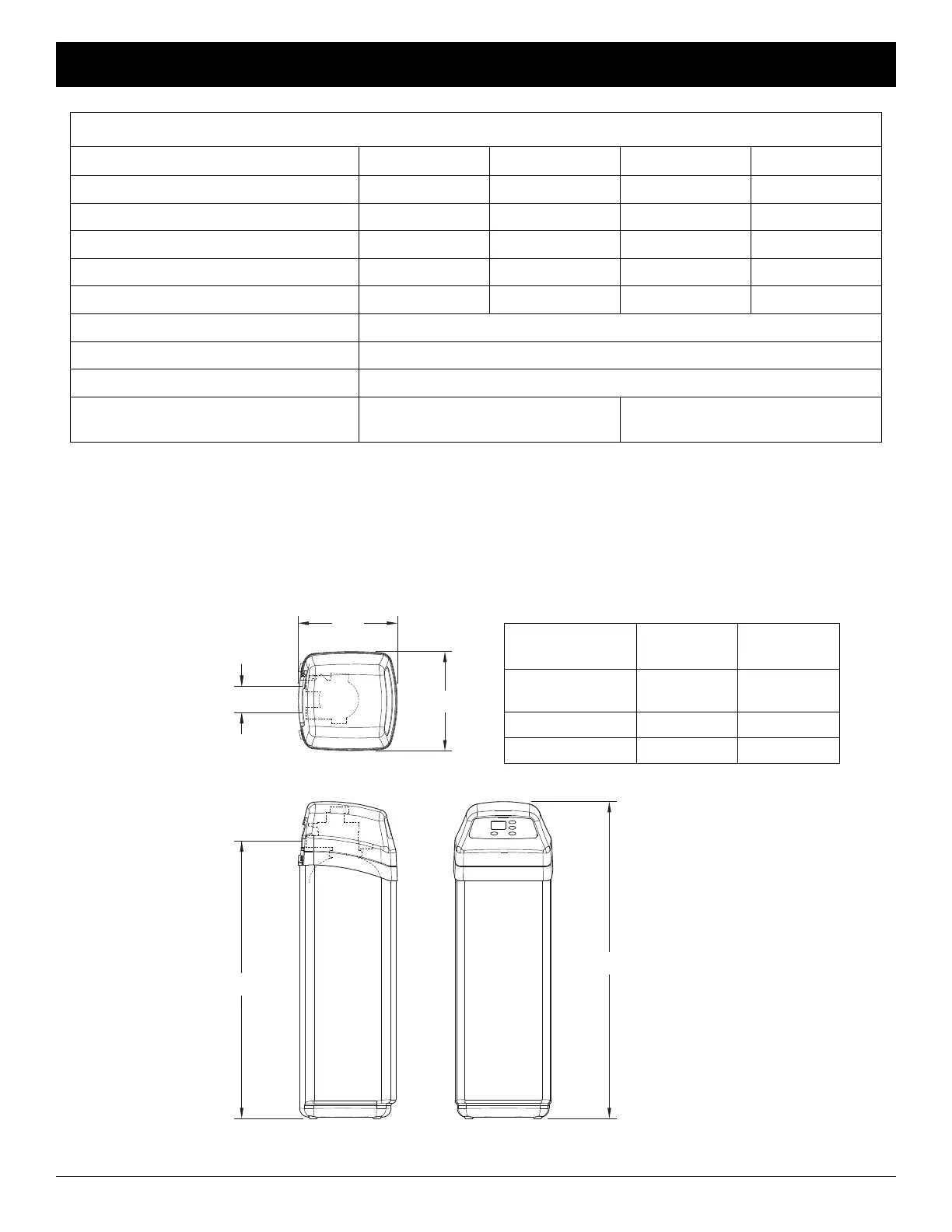

Specifications & Dimensions
SIDE VIEW FRONT VIEW
TOP VIEW
14"
14"
IN
OUT
3-3/4"
IN - OUT
39-1/4"
44-3/4"
ETF AIV-10
ETF EIV-10
ETF AIV-12
ETF EIV-12
Nominal Mineral
Tank Size
10” dia. x
47” tall
12” dia. x
54” tall
A 57” 62-1/2”
B 50” 55-3/4”
FIG. 1
3-3/4”
14”
14”
FRONT VIEWSIDE VIEW
TOP VIEW
OUT
IN
IN - OUT
A
B
SPECIFICATIONS
Model ETF AIV-10 ETF AIV-12 ETF EIV-10 ETF EIV-12
Model Code HAAIF HAAIF HAAIF HAAIF
Amount of Zeolite Media 1.0 cu. ft. 2.0 cu. ft. – –
Amount of Quartz Gravel 17 lbs. 29 lbs. 17 lbs. 29 lbs.
Flow Rate 7 - 10 gpm 9 - 15 gpm 7 - 10 gpm 9 - 15 gpm
Minimum Backwash Flow Rate 7 gpm* 10 gpm* 7 gpm*** 10 gpm***
Maximum Supply Water Pressure 80 psi
Water Temperature Limits (min./max.) 40 - 120 °F
Electrical Requirements 120V, 60 Hz (28V DC, 350 mA power supply included)
Contaminant Removal Limitations
Up to 10 ppm iron (except bacterial
and organically bound iron**)
Consult media specifications for
contaminant limitations
DIMENSIONS
*
Well pump must be able to provide the minimum flow for 30+ minutes.
**Consult manufacturer for applications with bacterial or organically bound iron.
***Install a backwash flow control that is appropriately sized for the media used.
