EcoWater ETF2300AIV10 - Wiring Schematic

31
ECOWATER
S Y S T E M S

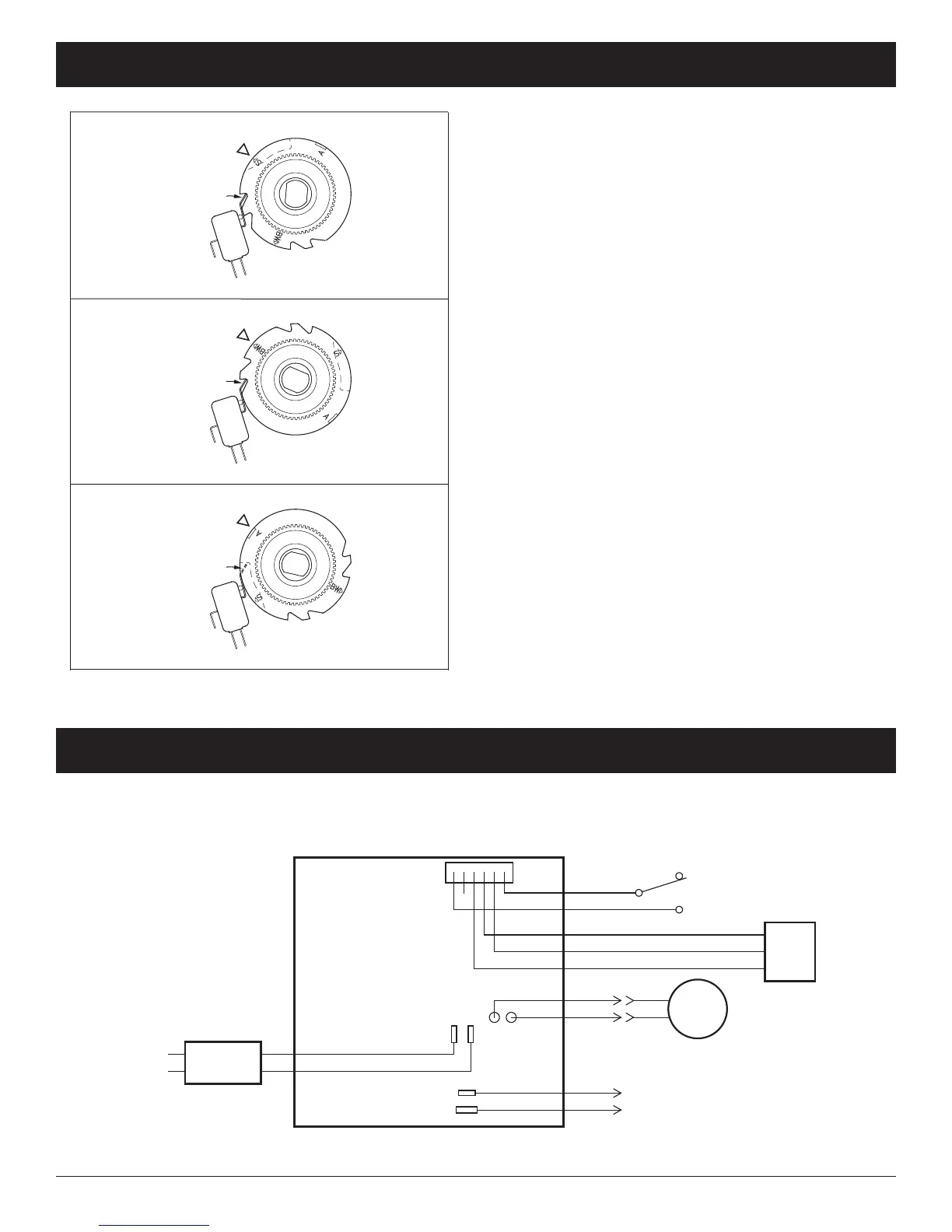

Service Information
Valve Cam
FIG. 99
Position Switch
S
SERVICE
Valve Cam
FIG. 100
BW
BACKWASH
A
ASPIRATE
Position Switch
Valve Cam
FIG. 101
Position Switch
ECOWATER
S Y S T E M S
Schematic
WIRING SCHEMATIC
1
Orange
Green
Red
Black
Control Board on Back of Faceplate
Valve
Motor
Position
Switch
NO
C
Power
Supply
120V AC
60 Hz
24V DC
Power In
Auxiliary
Output
24V DC
FIG. 102
White
Red
Black
Turbine
Sensor
GND
+5
OUT
