Chapter 2: Motherboard Installation

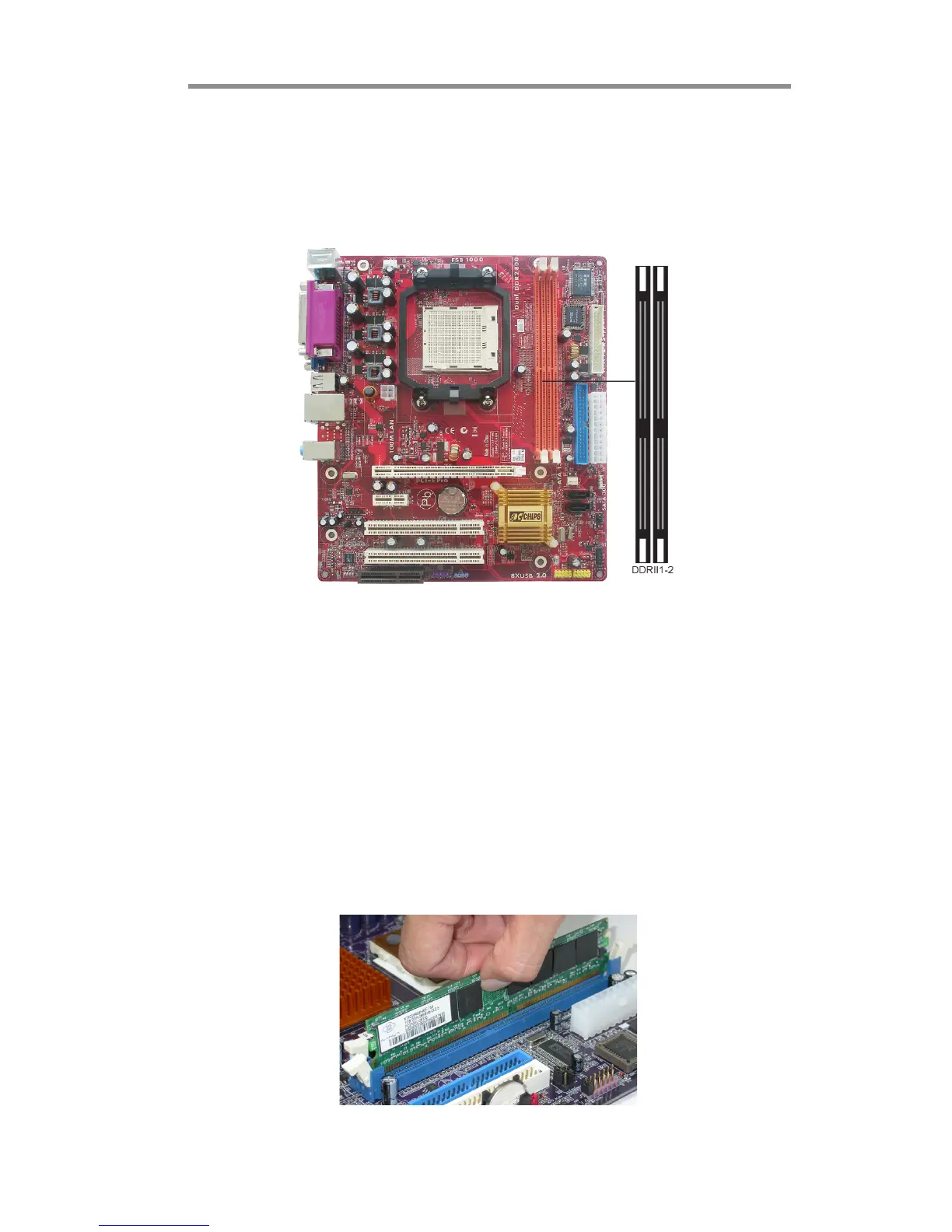

Memory Module Installation Procedure
These modules can be installed with up to 16 GB system memory. Refer to the
following to install the memory module.
1. Push down the latches on both sides of the DIMM socket.
2. Align the memory module with the socket. There is a notch on the
DIMM socket that you can install the DIMM module in the correct
direction. Match the cutout on the DIMM module with the notch on the
DIMM socket.
3. Install the DIMM module into the socket and press it firmly down until
it is seated correctly. The socket latches are levered upwards and latch
on to the edges of the DIMM.
4. Install any remaining DIMM modules.
Over its predecessor, DDR2-SDRAM offers greater bandwidth and density in a
smaller package along with a reduction in power consumption. In addition, DDR2-
SDRAM offers new features and functions that enable a higher clock rate and data
rate operations of 800/667/533/400 MHz. DDR2 transfers 64 bits of data twice
every clock cycle.

ECS A13G Series Specifications

General

Brand	ECS
Model	A13G Series
Category	Motherboard
Language	English
