Chapter 2: Motherboard Installation
Install The Motherboard
Install the motherboard in a system chassis (case). The board is an micro-ATX
size motherboard. You can install this motherboard in an ATX case. Make sure
your case has an I/O cover plate matching the ports on this motherboard.

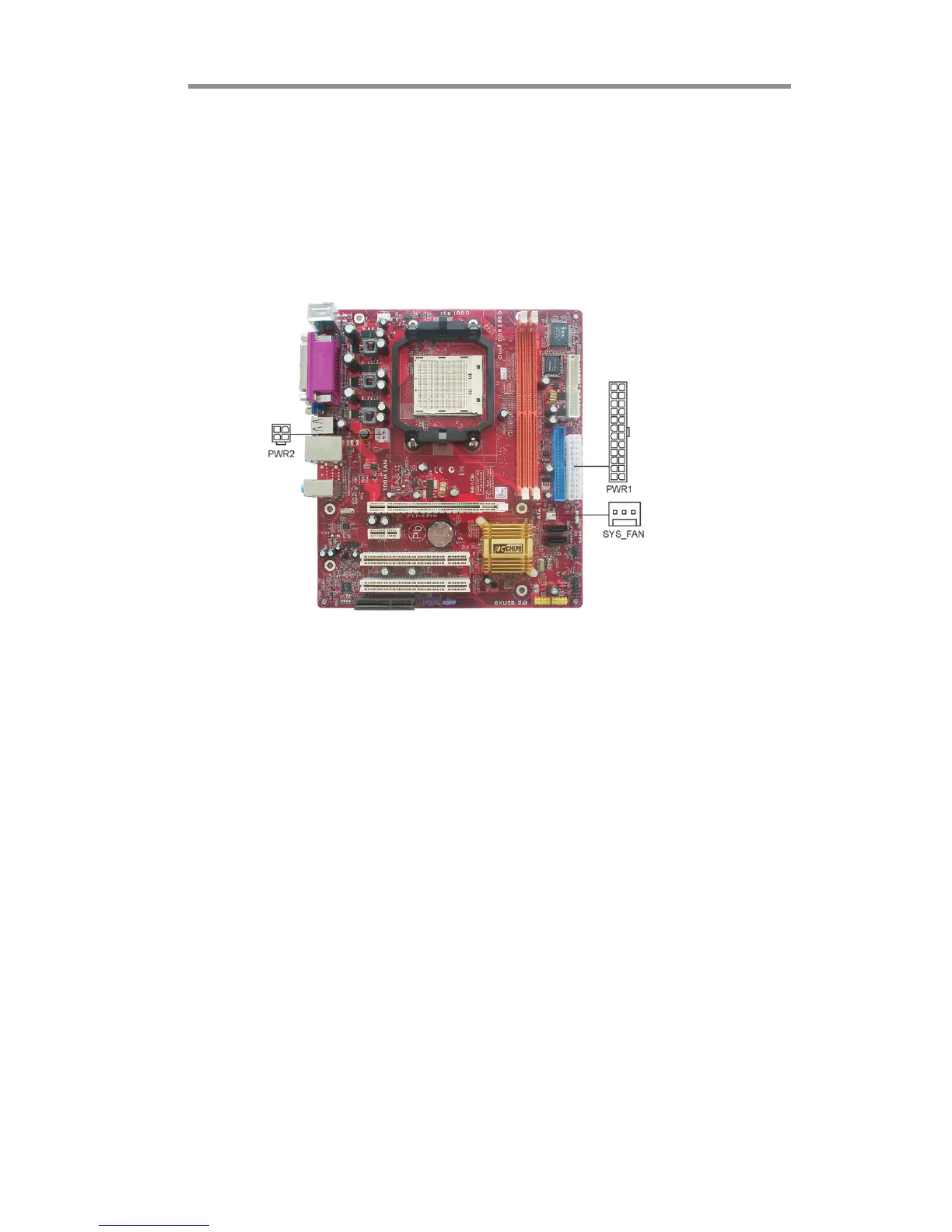

Connect the power connector from the power supply to the PWR1 connector on
the motherboard. PWR2 is a +12V connecotr for CPU Vcore power.
If there is a cooling fan installed in the system chassis, connect the system
cooling fan cable to the SYS_FAN fan power connector on the motherboard.
Connect the case switches and indicator LEDs to the PANEL1 header.
Install the motherboard in a case. Follow the case manufacturer’s instructions to
use the hardware and internal mounting points on the chassis.
