ECS A13G Series

6
Motherboard User’s Guide

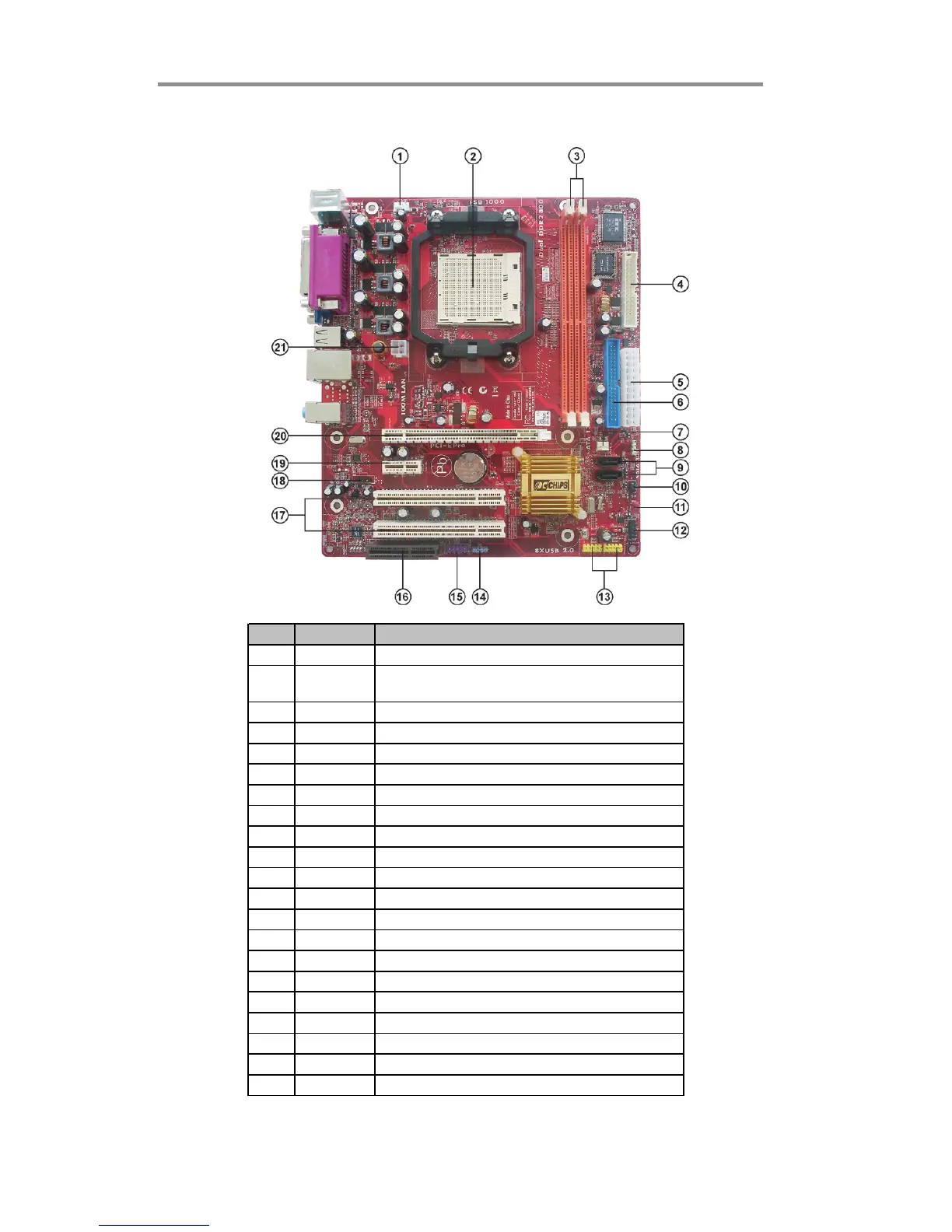

Motherboard Components
IT EM L ABEL COM PONENTS
1 CPU_FAN CPU cooling fan connector
2 CPU Socket Socket AM2 for AMD Athlon 64 FX/Athlon 64 X2
Dual-Core/Athlon 64 /Sempron processor
3DDRΙΙ1~2 240-pin DDR2 SDRAM slots
4 FDD Floppy Disk Drive connector
5 PWR1 Standard 24-Pin ATX Power connector
6 IDE1 Primary IDE connector
7 SYS_FAN System cooling fan connector
8 SPK1 Speaker Header
9 SATA1~2 Serial ATA connectors
10 IR1 Infrared Header
11 CLR_CMOS Clear CMOS jumper
12 PANEL1 Front Panel switch/LED header
13 F_USB1~2 Front Panel USB headers
14 SPDIFO1 SPDIF out header
15 F_AUDIO Front Panel Audio header
16 AZ1 Azalia CNR slot(optional)
17 PCI1~2 32-bit PCI slots
18 CD_IN Analog Audio Input header
19 PCIEX1 PCI Express x1 slot
20 PCIEX16 PCI Express Pro slot for graphics interface
21 PWR2 Standard 4-Pin ATX Power connector
