ECS BSWI-D2 User Manual

Chapter 1
6
BSWI-D2 USER MANUAL

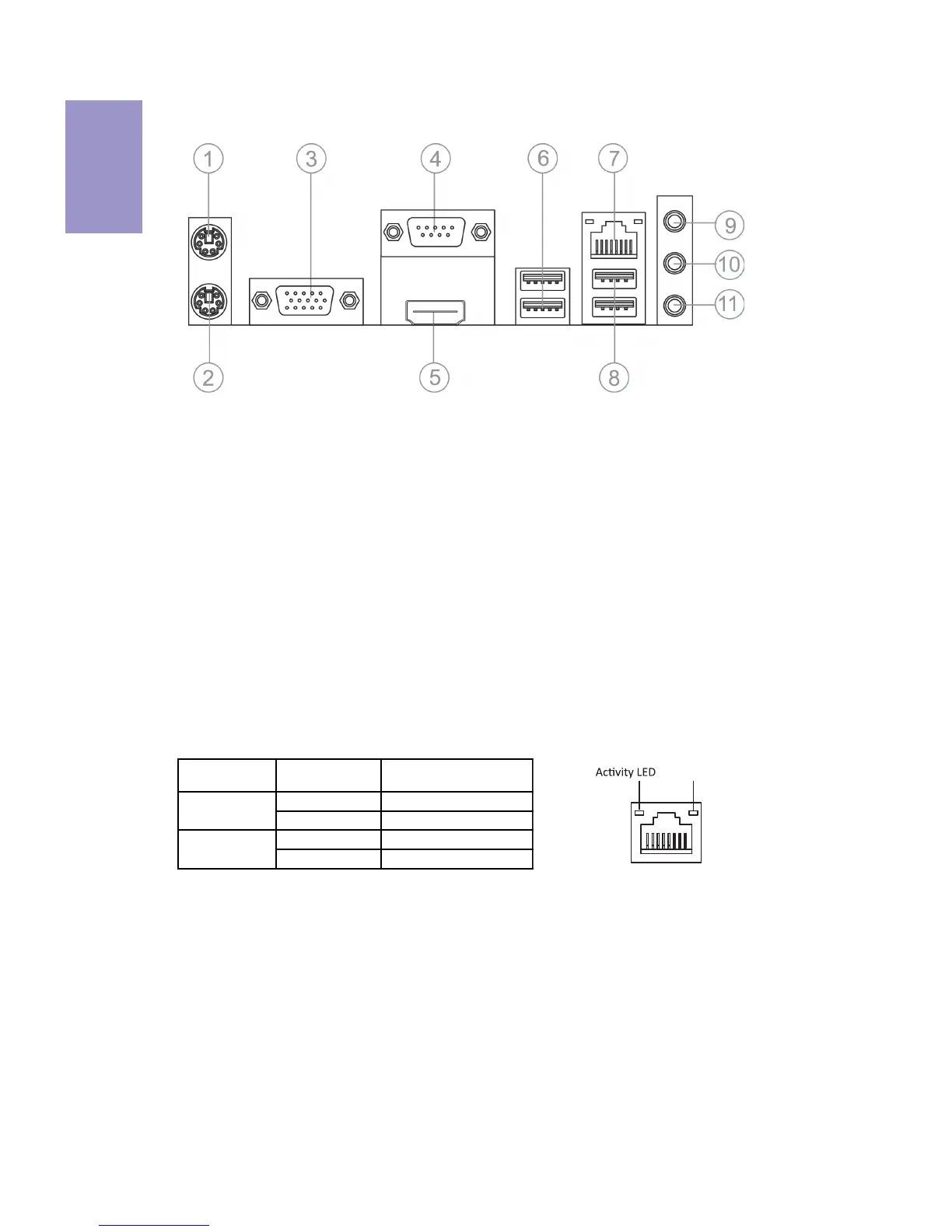

I/O Ports
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard (purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. VGA Port
Connect your monitor to the VGA port.
5. HDMI Port
You can connect the display device to the HDMI port.
6. USB 3.0 Ports
Use the USB 3.0 port to connect USB 3.0 device.
7. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
8. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
9. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
10. Line-out (green)
It is used to connect to speakers or headphones.
11. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
4. COM1 Port
Use the COM1 port to connect the serial devices such as mice or fax/modems.

ECS BSWI-D2 Specifications

General

Brand	ECS
Model	BSWI-D2
Category	Motherboard
Language	English
