Chapter 2
BSWI-D2 USER MANUAL
8
2-3. Checking Jumper Settings
T
o avoid the sys
tem instability after clearing CMOS, we recommend users t
o
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.

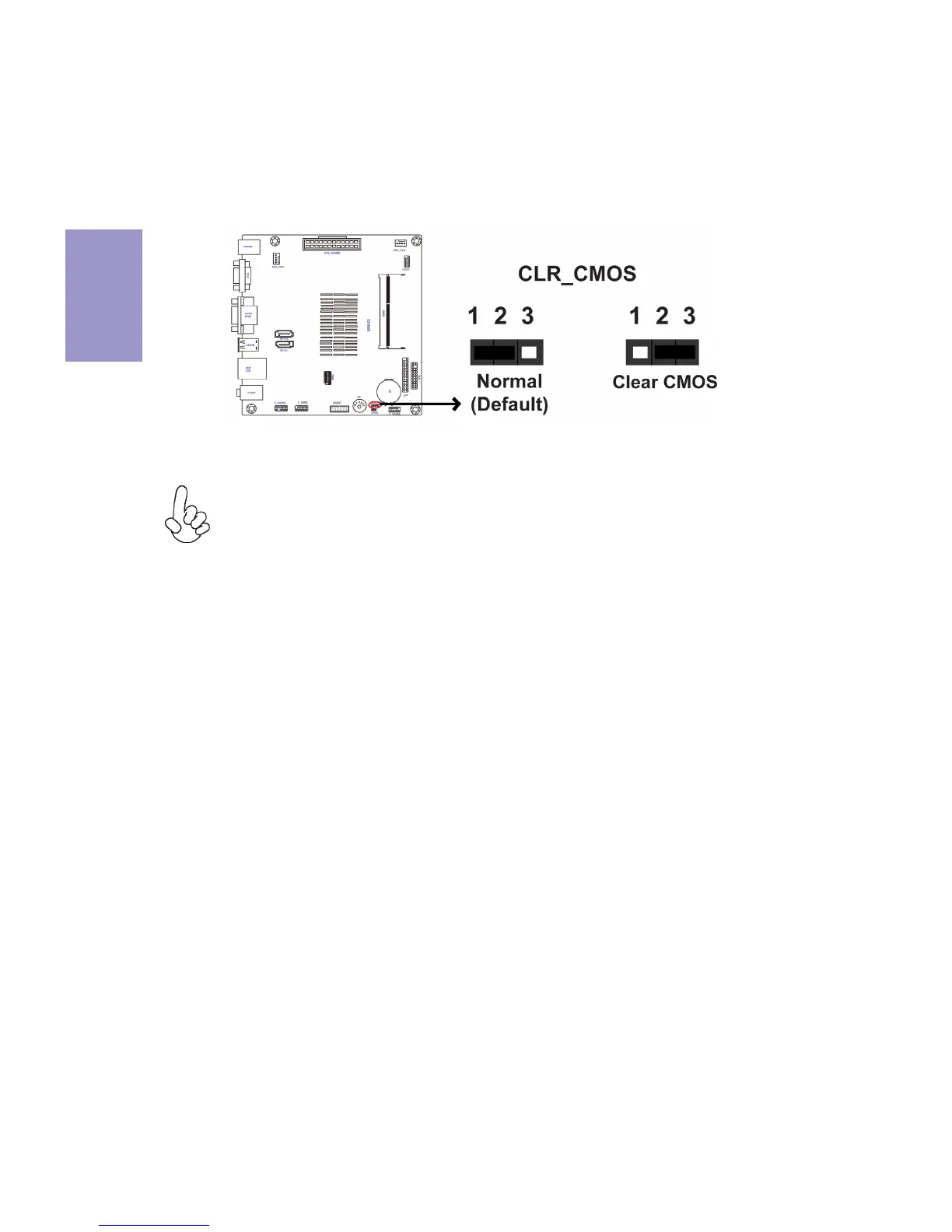

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
11
13
