Chapter 2
BSWI-D2 USER MANUAL
13

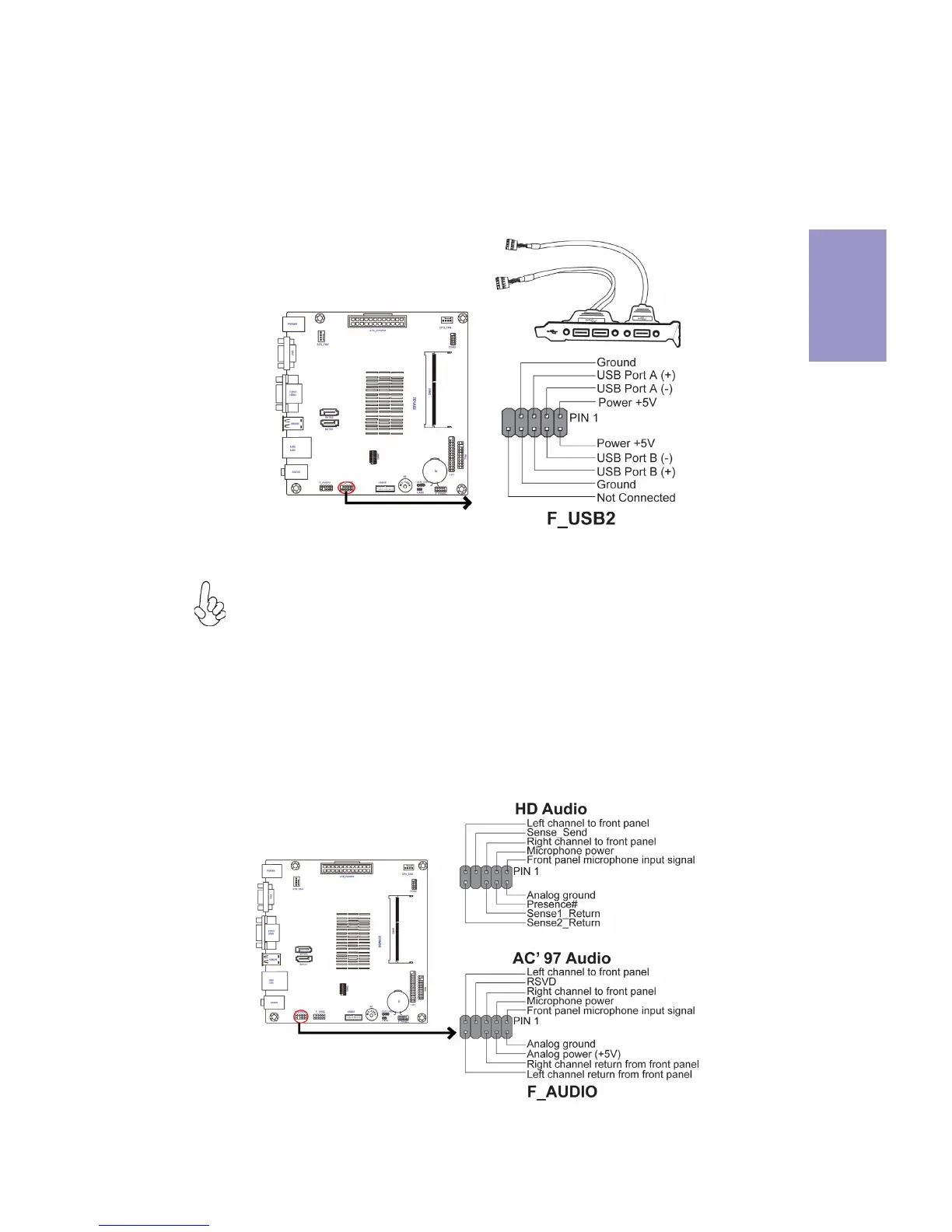

The motherboard has one 2*5-pin USB 2.0 header supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.
6. F_USB2: 2*5-pin Front Panel USB 2.0 Header
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC’ 97 front panel audio to HD onboard headers,
please set as below picture.
7. F_AUDIO: Front Panel Audio Header
To Next Page
