Chapter 2
BSWI-D2 USER MANUAL
15
SA
T

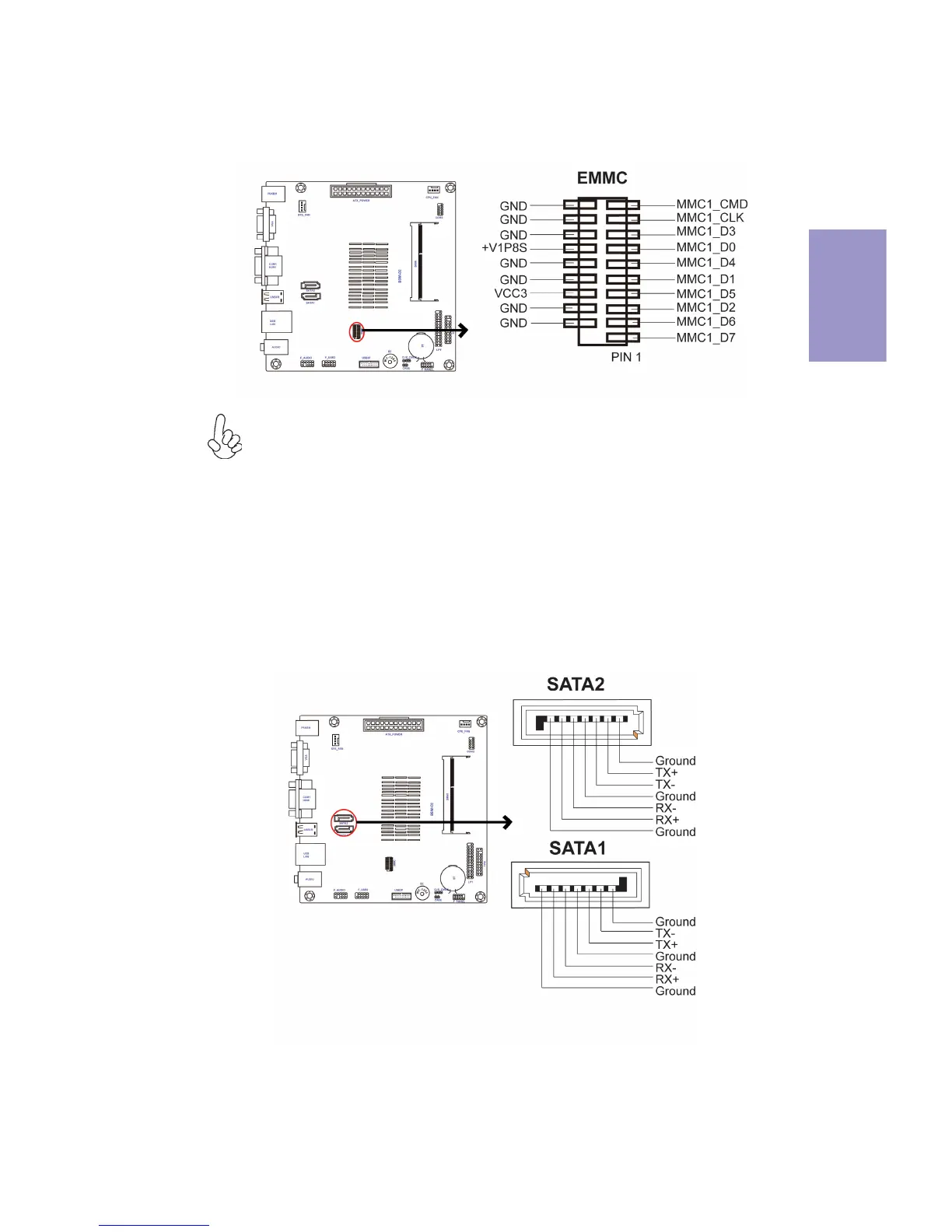

A 1~2 connector
s support the Serial A
T
A 6Gb/s device, simpler disk driv
e cabling
and easier PC assembly
. It eliminates limitations of the curr
ent Par
allel A
T
A
interface. But maintains register compatibility and software compatibility with
P
arallel A
T
A.
9. S
A
T
A1~2: Serial A
T
A Connectors
8. EMMC Header
The EMMC-BSW-32G card is not included in the package, you
can buy it separately and install.
