21
Installing the Motherboard

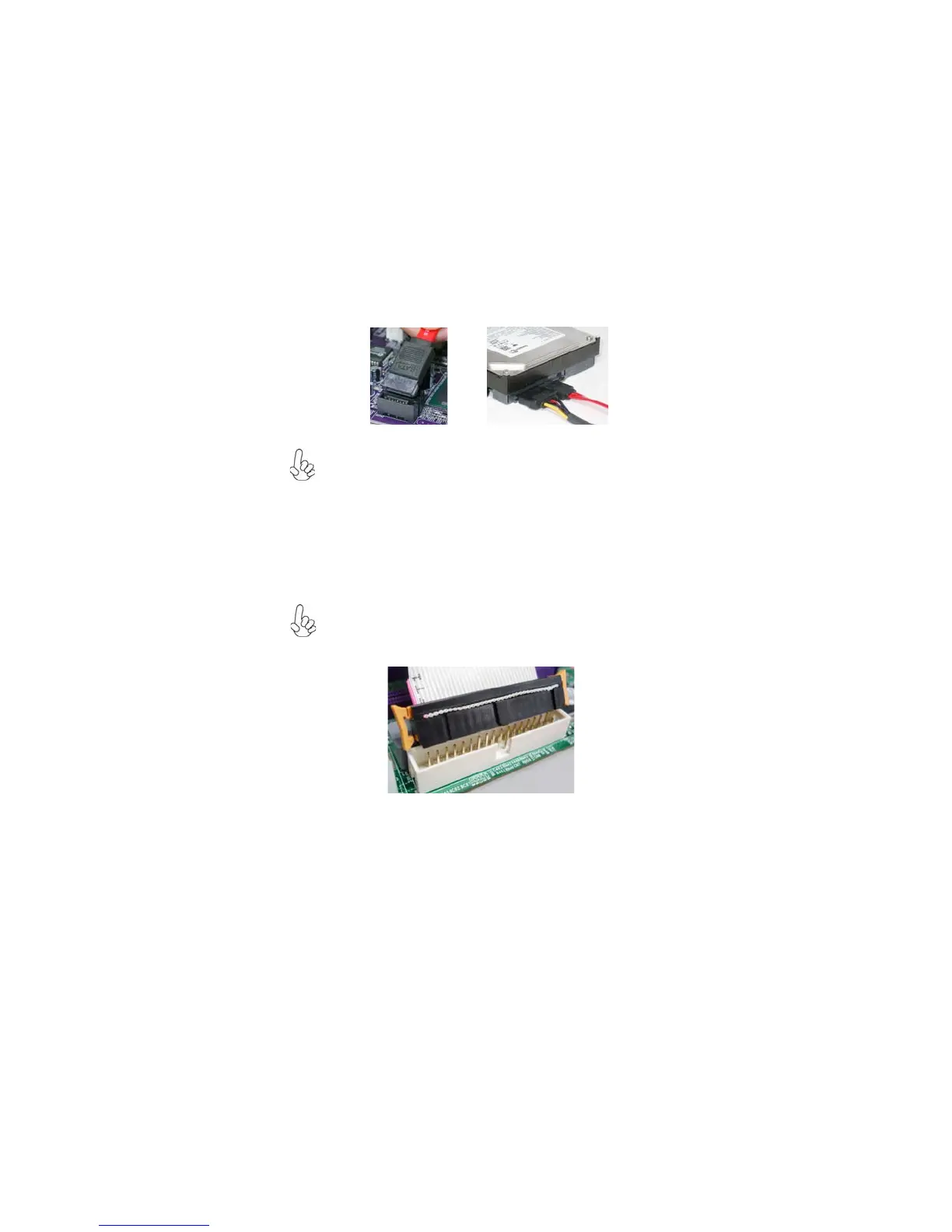

Refer to the illustration below for proper installation:
This motherboard supports the “Hot-Plug” function.
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
FDD: Floppy Disk Connector
This connector supports the floppy drive ribbon cable. After connecting the single
end to the onboard floppy connector, connect the remaining plugs on the other end
to the floppy drives correspondingly.
Installing a Floppy Diskette Drive
You must orient the cable connector so that the pin 1 (color) edge of
the cable corresponds to the pin 1 of the I/O port connector.
