64
NVIDIA® Hybrid SLI® T
echnology Support
Installation a
nd Use

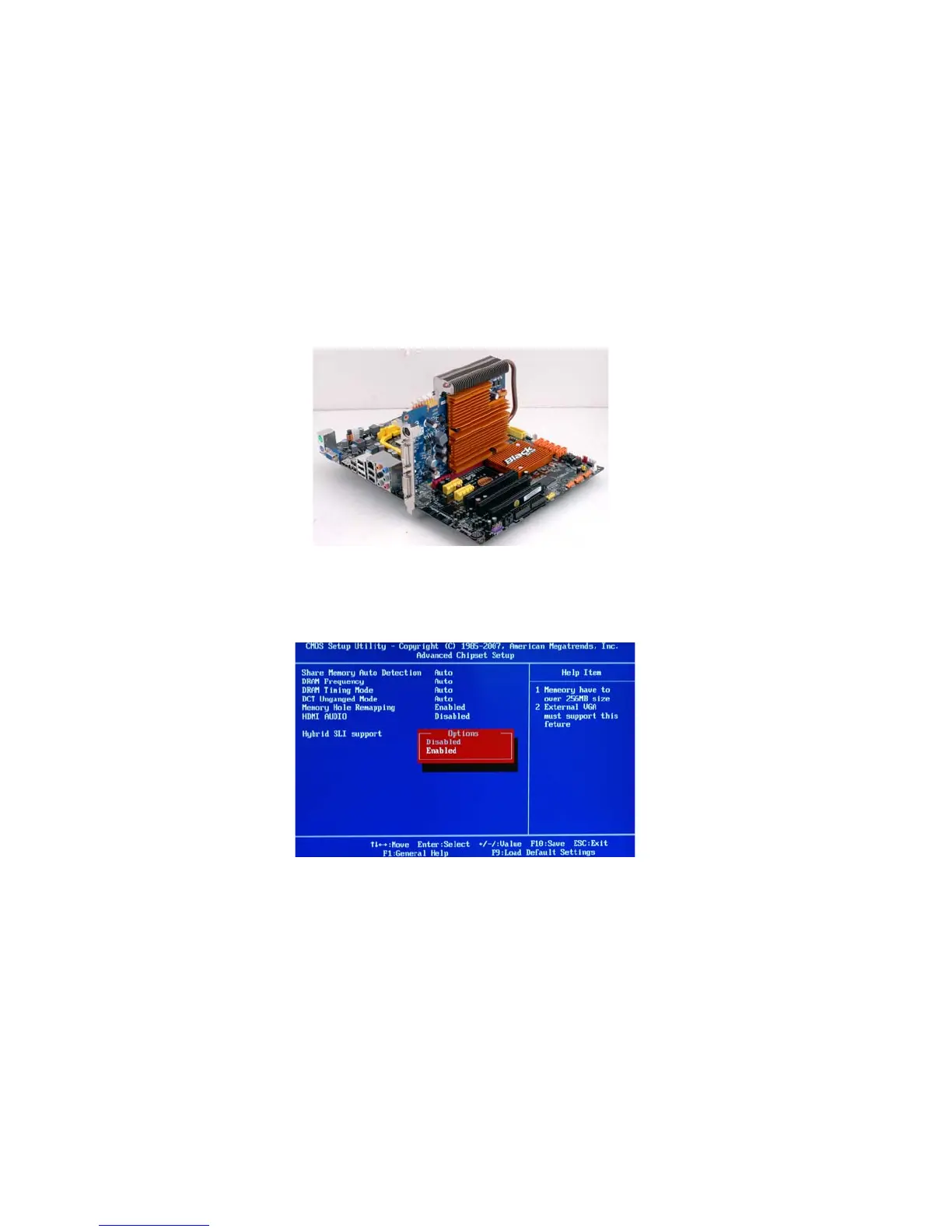

1. Prepare one Hybrid SLI enabled graphics card.
3.
Insert the Hybrid SLI enabled graphics card into the
PCIEX16
Slot on the
motherboard.
2.
Start your computer
, then press
Delete to enter the BIOS setup; use the arrow keys
to select
Adva
nced Chipset Setup, then press Enter; set the item
Hybrid SLI supprt
to
Enabled
.
4.
Press F10 to save the configuration a
nd exit the BIOS.
69
71
