NVIDIA RAID Configuration
7
Enter the RAID BIOS Setup by pressing F10 when prompted, and proceed
to set up the NVIDIA RAID BIOS as described in the next section.
The PC reboots.
Press F10 to save the configuration and exit.
Configuring the NVIDIA RAID BIOS
The NVIDIA RAID BIOS set up lets you choose the RAID type and which hard drives
you want to make part of the array.
Entering the RAID BIOS Setup:
1
Wait until you see the RAID software prompting you to press F10.
The RAID prompt appears as part of the system POST and boot process
prior to loading of the OS. You have a few seconds to press F10 before the
screen disappears (see Figure 1.6).
6

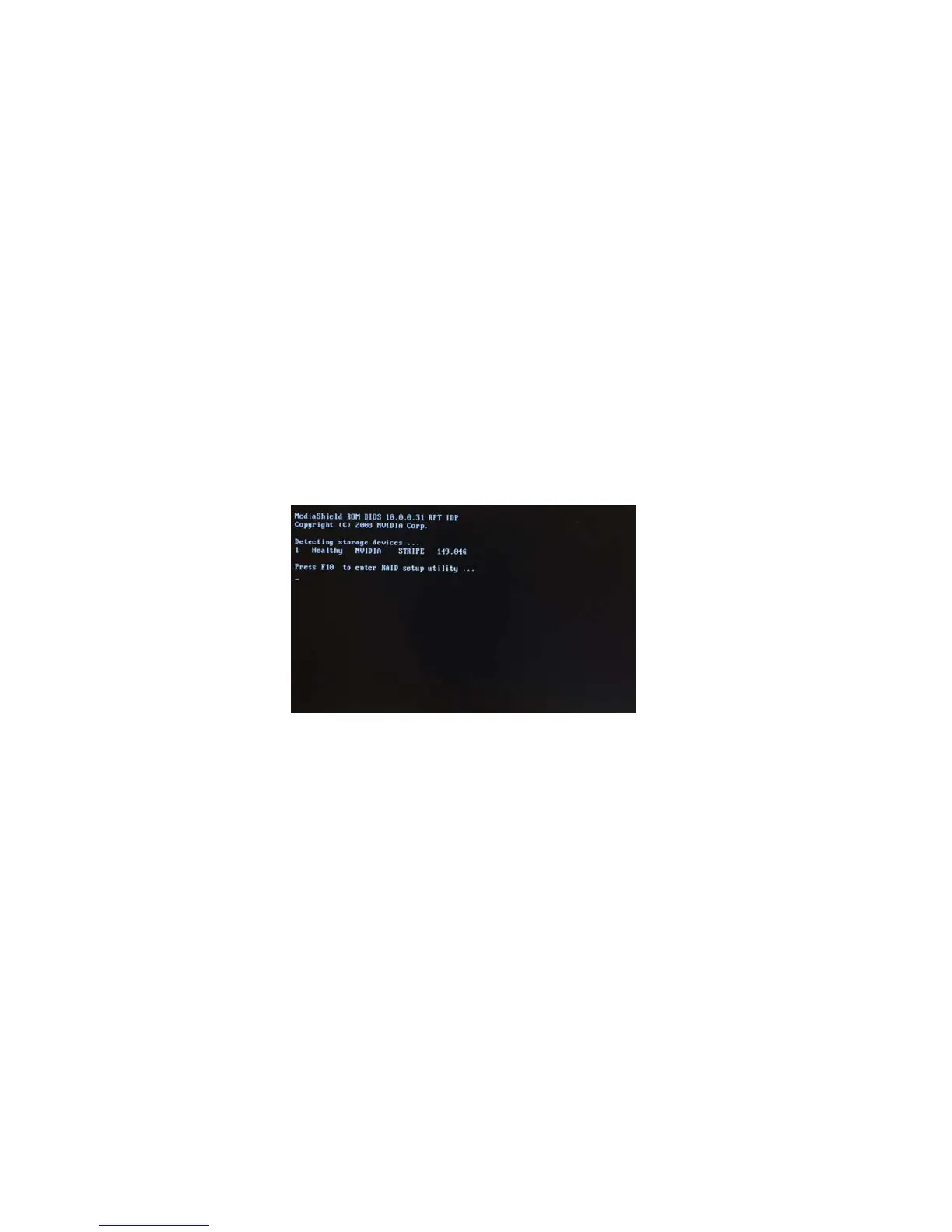

Figure 1.6
Press F10 to enter Define a New Array page.
2

ECS GF8100VM-M5 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of SATA connectors	6
Controller interface type	NVIDIA MCP78V
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
Maximum graphics card memory	512 MB
RAID levels	0, 1
