Chapter 2
21
H110M-C3V
/H110M-C3D USER
MANUAL
If you use AC
’
9
7 Front Panel, please don
’
t t
ick off
“
Using Front Jack Detect
”
. If you
use HD Audio Front Panel, please
t
ick off the option of
“
Using Front Jack Detect
”
.
* For reference only

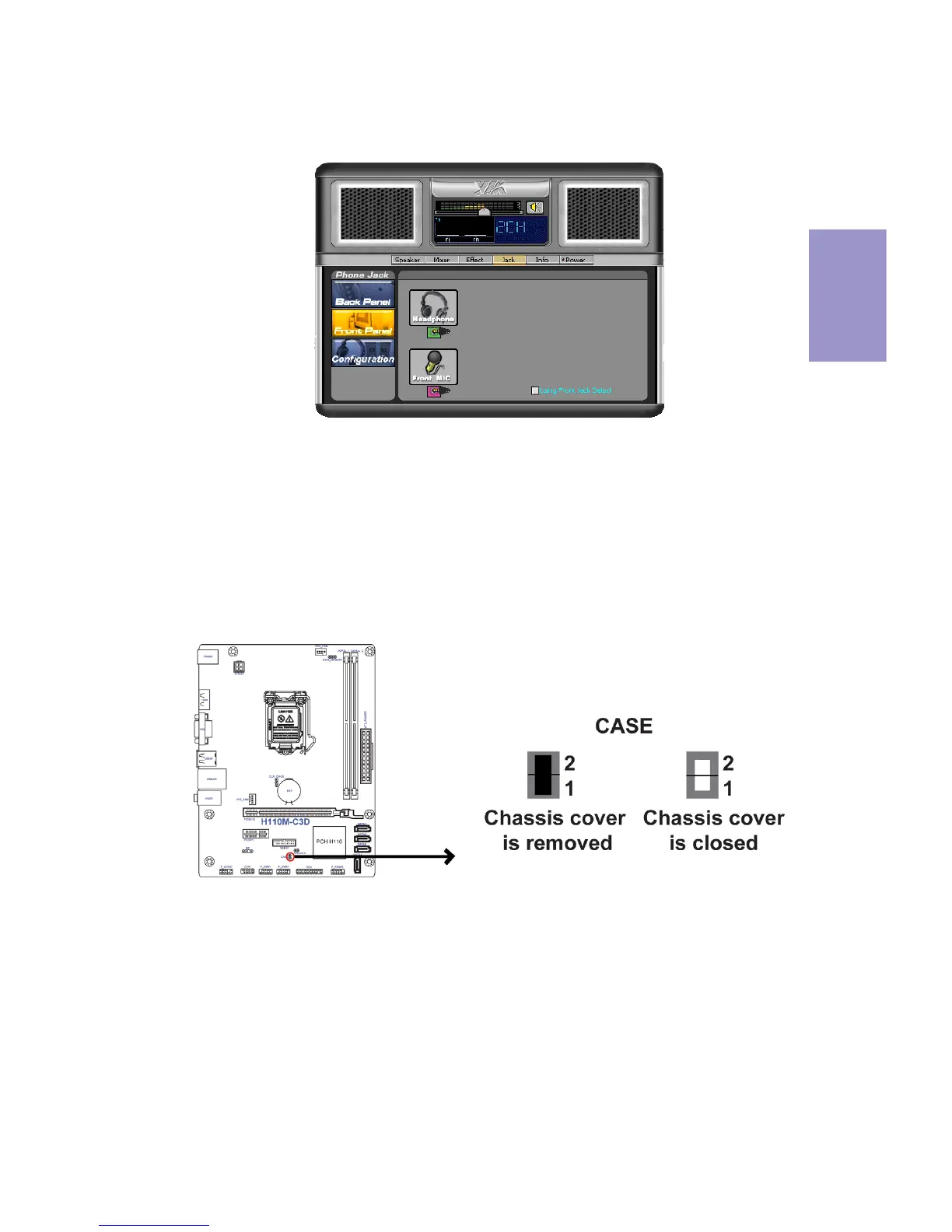

7. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This function needs a chassis
equipped with instrusion detection switch and needs to be enabled in BIOS.
