Chapter 2
22
H110M-C3V
/H110M-C3D USER
MANUAL
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin
assignment may cause damage or system
hang-up.
This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0
ports, which delivers 5Gb/s transfer rate.

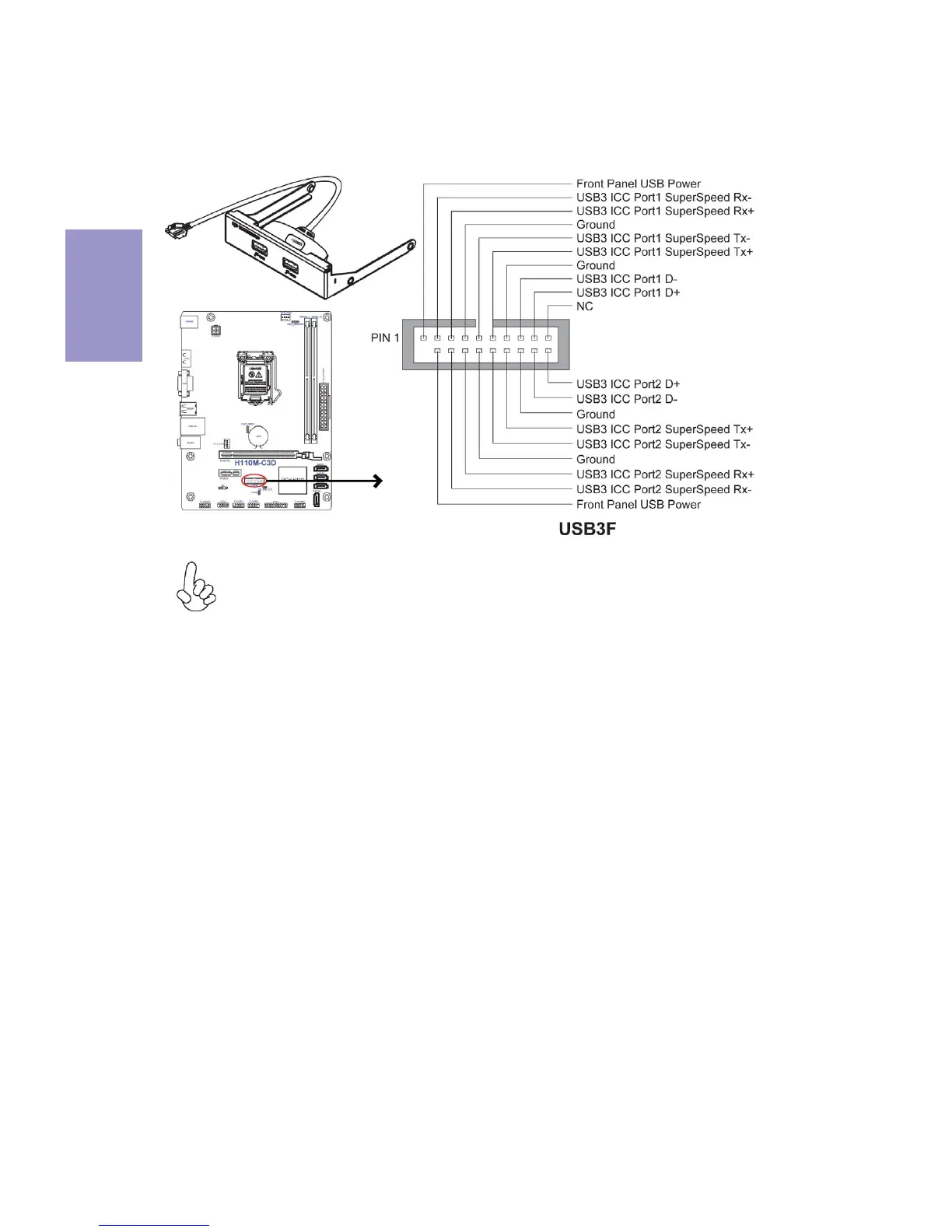

8. USB3F: Front Panel USB 3.0 Header
25
27
