Super IO Configuration
Use this item to show the information of Super IO configuration.
Press <Esc> to return to the Super IO Configuration page.
Super IO Chip (IT8728)
This item shows the information of the super IO chip.
Serial Port 0 Configuration

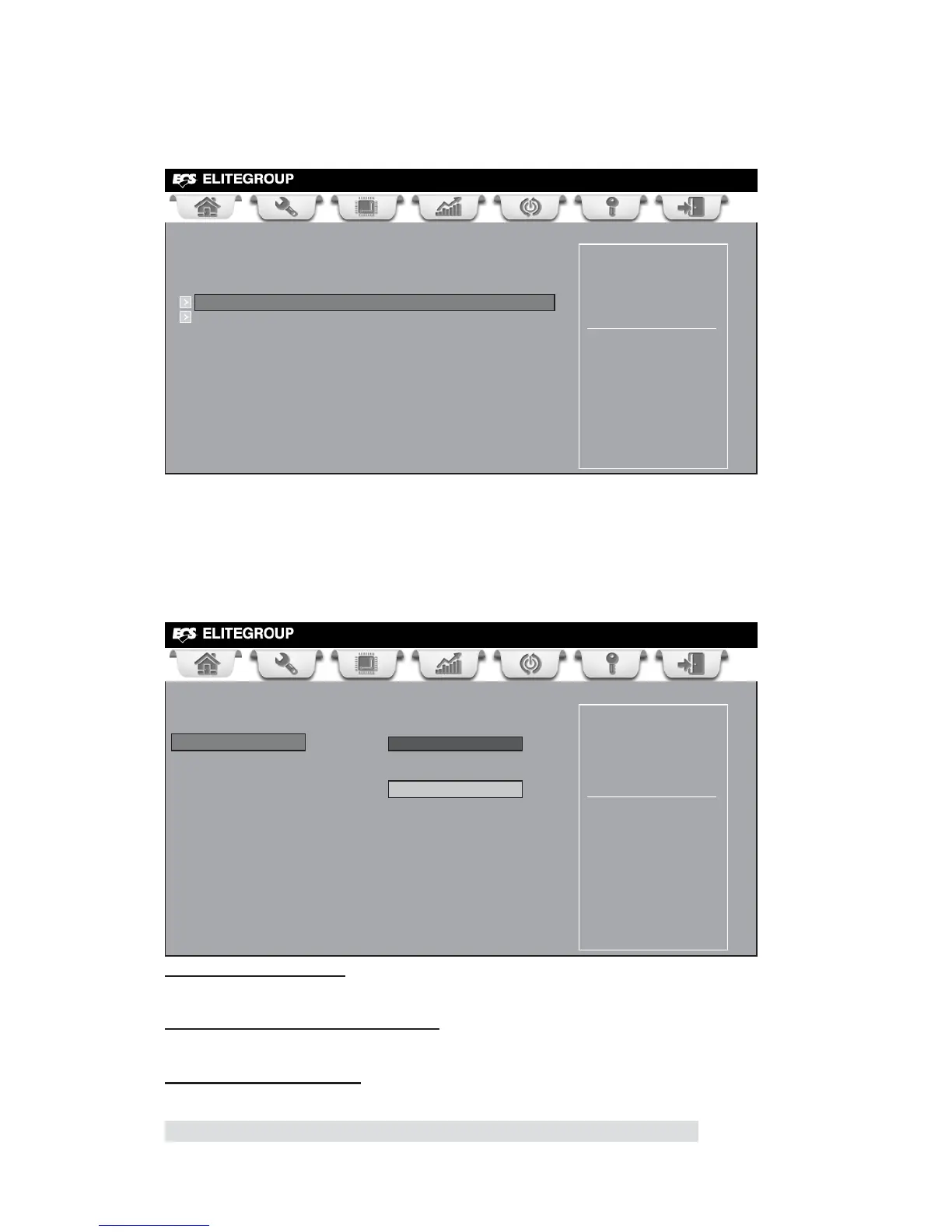

Scroll to this item and press <Enter> to view the following screen:
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Set Parameters of Serial
Port 0 (COMA)
