ECU Master TUNER3 - Page 28

ECU
Power Out #1.(20)
Freq. In (10)
Pullup (8)
Power Gnd (19)
DET 3
Inject ors
ECU Injectors
Output
DIGITAL ECU TUNER 3 – User Manual
Direct controlling of the injectors opening time.
When the injector system works in the “Full group” mode (all injectors work simultaneously), it is possible to
directly control the injectors’ opening time.

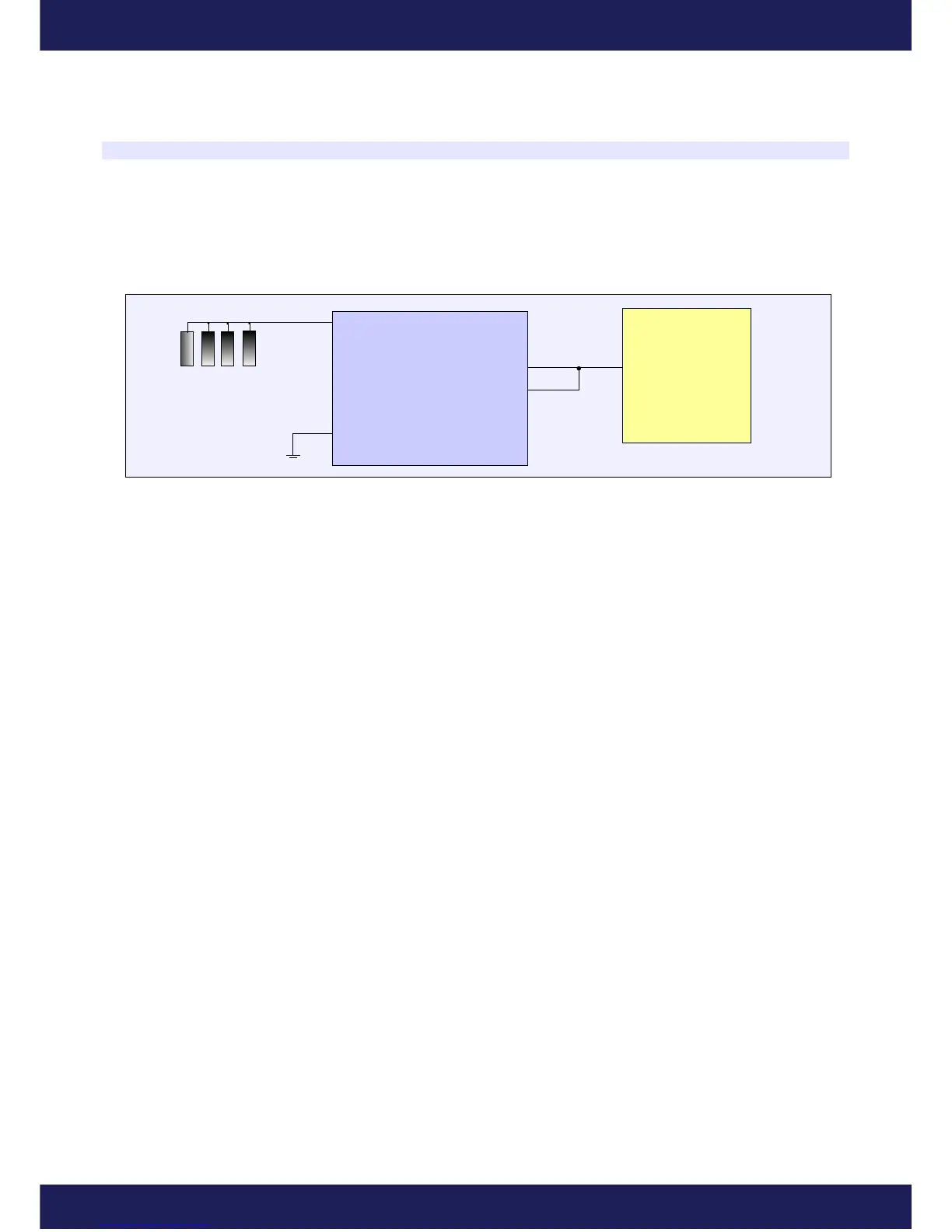

The connections should be as follows:
To activate the option of the direct controlling of the injection time, choose Setup/Injection Control Configuration
from the options, then choose Injection control type: Full group input, Power Output #1.
It is also possible to set the injectors opening time (default value is 1ms.) that is not scaled by tables values.
The injectors’ scale factors can be found on the PWM Table #1.
The value of 100 means 100%, which means the lack of modifications of the injectors opening time.
