DIGITAL ECU TUNER 3 – User Manual
Power outputs: Power Out #1 i Power Out #2
Digital ECU Tuner 3 has two power outputs, to which the following functions can be assigned:
− Output Power Out #1 controlled by 3D PWM #1 table,
− Output Power Out #2 controlled by 3D PWM #2 table,
− Parametric output controlling Power Out #2.
Power outputs can be controlled by PWM within the frequency range
of 10Hz-2000Hz. The PWM frequency for every output is defined in

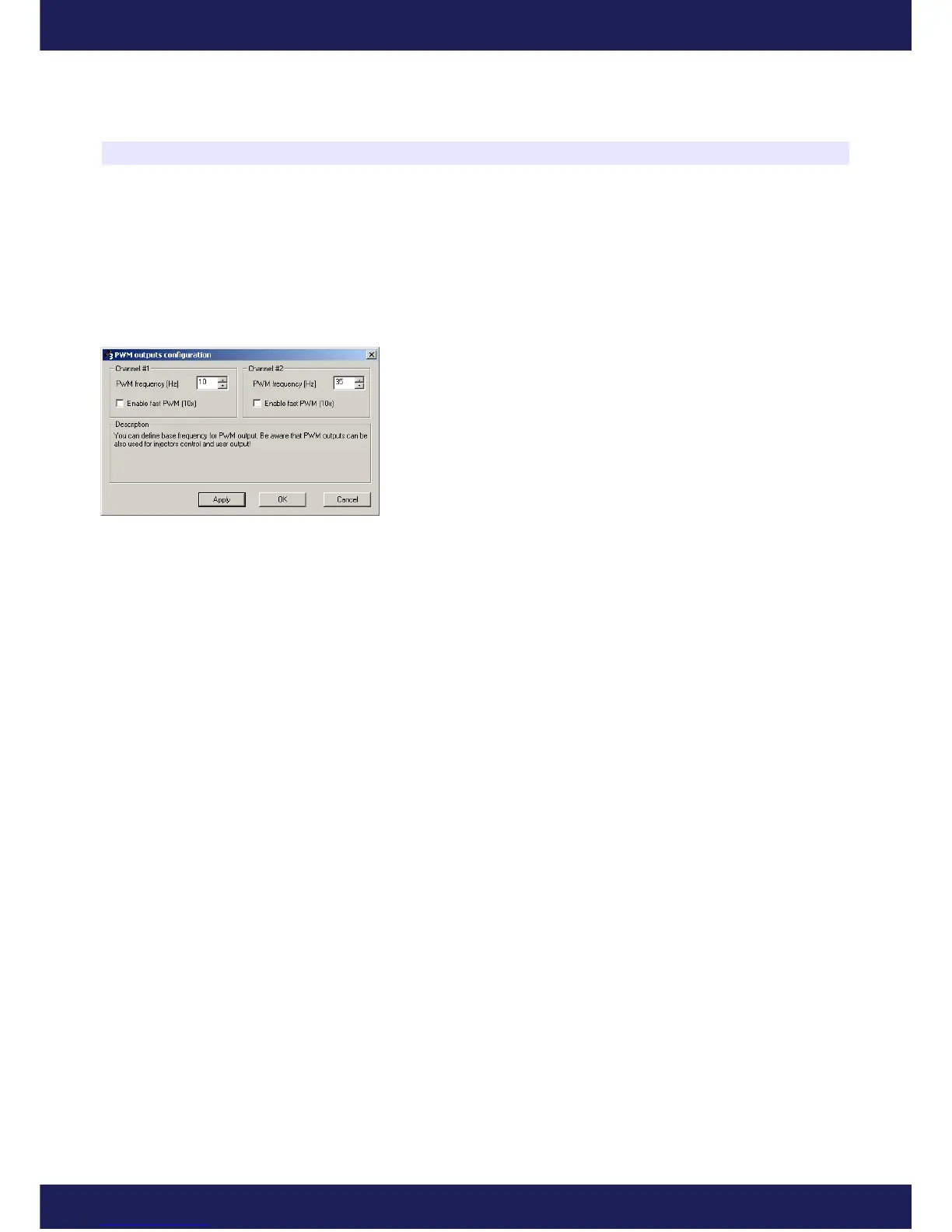

the Setup/PWM Outputs Configuration window.The Enable fast PWM
(10x) option increases the output frequency 10 times. PWM
controlling is used in all kinds of solenoids ( for example, boost
solenoid valve control) or when using an additional injector/ injectors.
Values on the PWM table range from 0 – 100%.
To use power outputs, additional power ground should be connected to the Power Ground (19) input.
Page 25
