CADENCE II Fetal Monitor User Manual
- 27 -

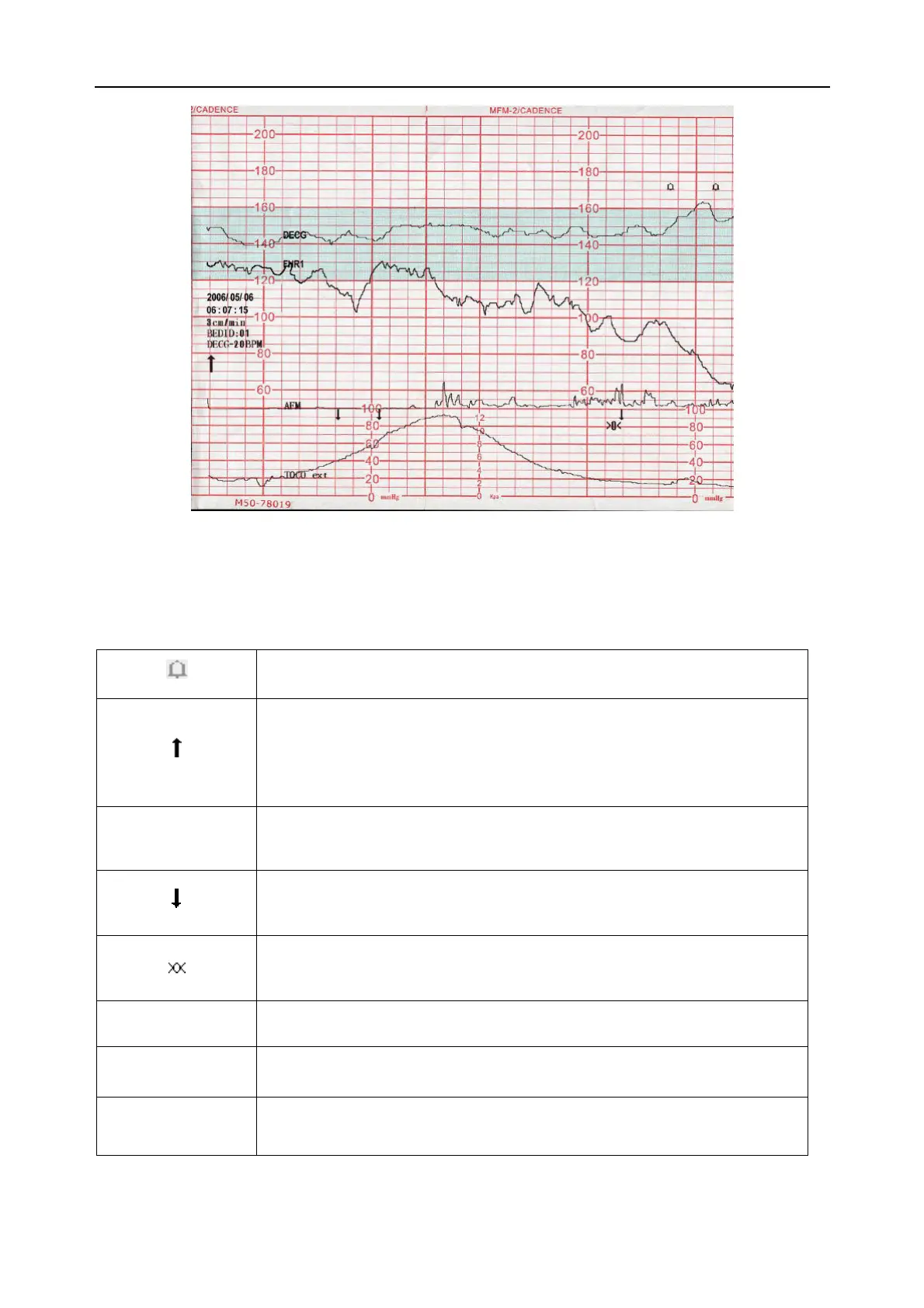

Figure 5-2 An example of printing pattern (international standard recorder paper)
Besides the trends, some other symbols appear among the trends on the recorder paper:
This symbol indicates that an alarm is active.
This symbol indicates a manual fetal movement, and it appears after
the patient presses the remote event marker when she feels a fetal
movement.
This symbol indicates a fetal movement is detected by the monitor
automatically.
This symbol indicates that the MARK key is pressed to record an
event, such as the patient turning around, taking injection.
This symbol indicates that the monitor is zeroed by pressing the AUTO
ZERO key.
FHR1
FHR1 trend mark. The broad trend is FHR1 trend.
FHR2/ DECG
The narrow trend is FHR2 / DECG trend.
TOCO ext/
TOCO int
The TOCO trend from external / internal monitoring.
