iSE Series Electrocardiograph User Manual Editing ECGs
Chapter 6 Editing ECGs
The system can be configured to automatically analyze ECGs after recording. To
manually activate ECG data analysis, tap an ECG in the ECG File tab. Then the ECG
Analysis screen is displayed. In this screen, you can edit, measure, diagnose, and
compare ECGs. The analysis screen is varied according to the ECG type. The following
figure shows the analysis screen of standard ECG as an example.

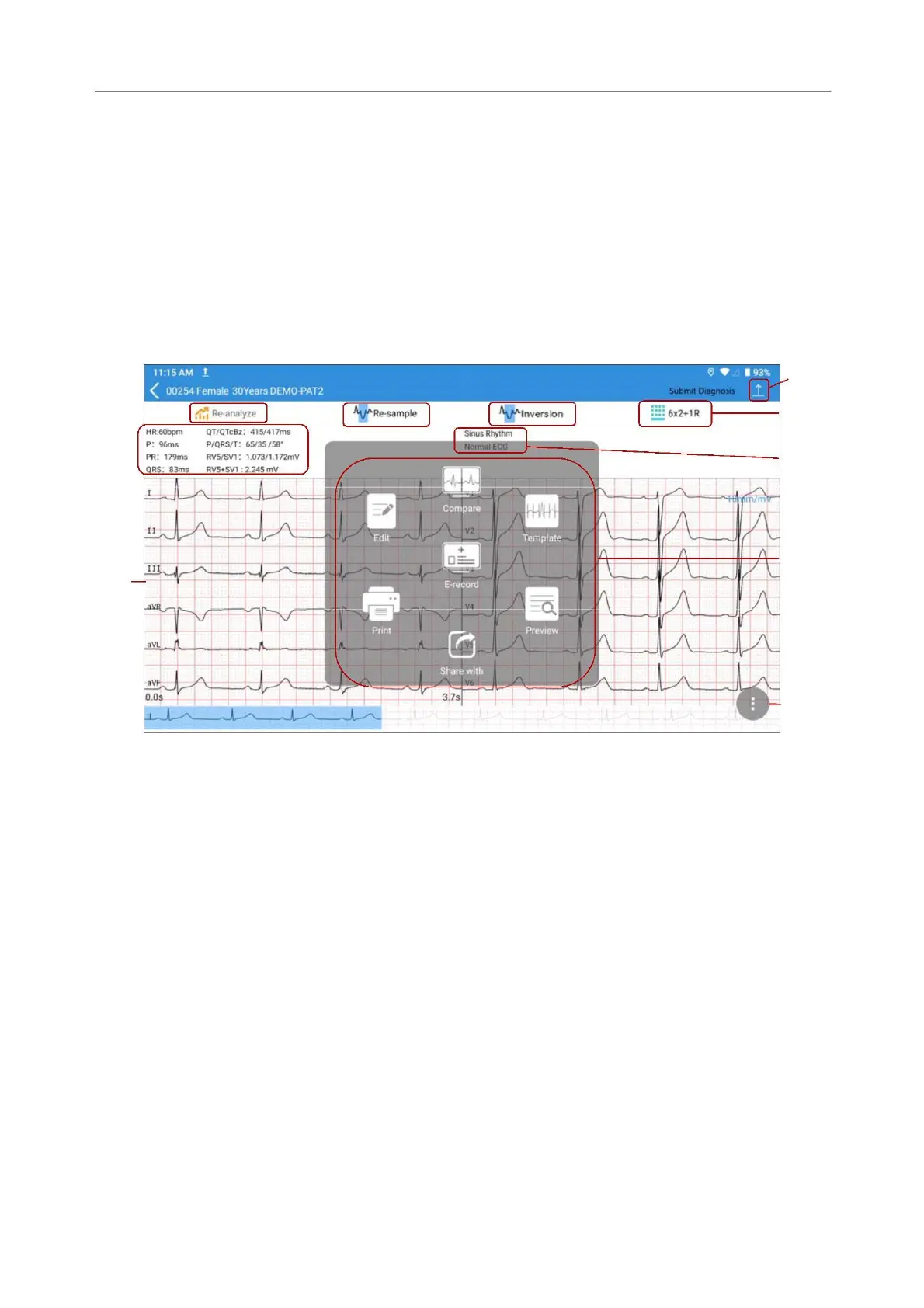

Figure 16 ECG analysis screen
Upload ECG
Lead
Auto
configuration
measurement
Auto diagnosis
More
functions
ECG traces
More
6.1 ECG View
To switch lead configuration, tap the configuration e.g. 6×2+1R on the top right of the
screen.
Slide the ECG traces left or right to view 10s waveform. The time below the ECG traces
indicates the onset and offset of on-screen waveform.
To zoom in the waveform, double tap on the waveform of a lead. The magnification page
opens. Double tap the page, continue to zoom in. The ECG waveform can be magnified
up to 5 times. When reaching its maximum, double tap the page to return to one-time size.
To exit magnification, tap on X in the upper right corner.
If the ECG waveform is not satisfactory, tap Re-sample to acquire ECG again.
If a lead is in the wrong location, tap Inversion to correct it.
