SE-601 Series Electrocardiograph User Manual Printing ECG Reports
- 56 -
7.7.4 ECG Reports in the R-R Mode

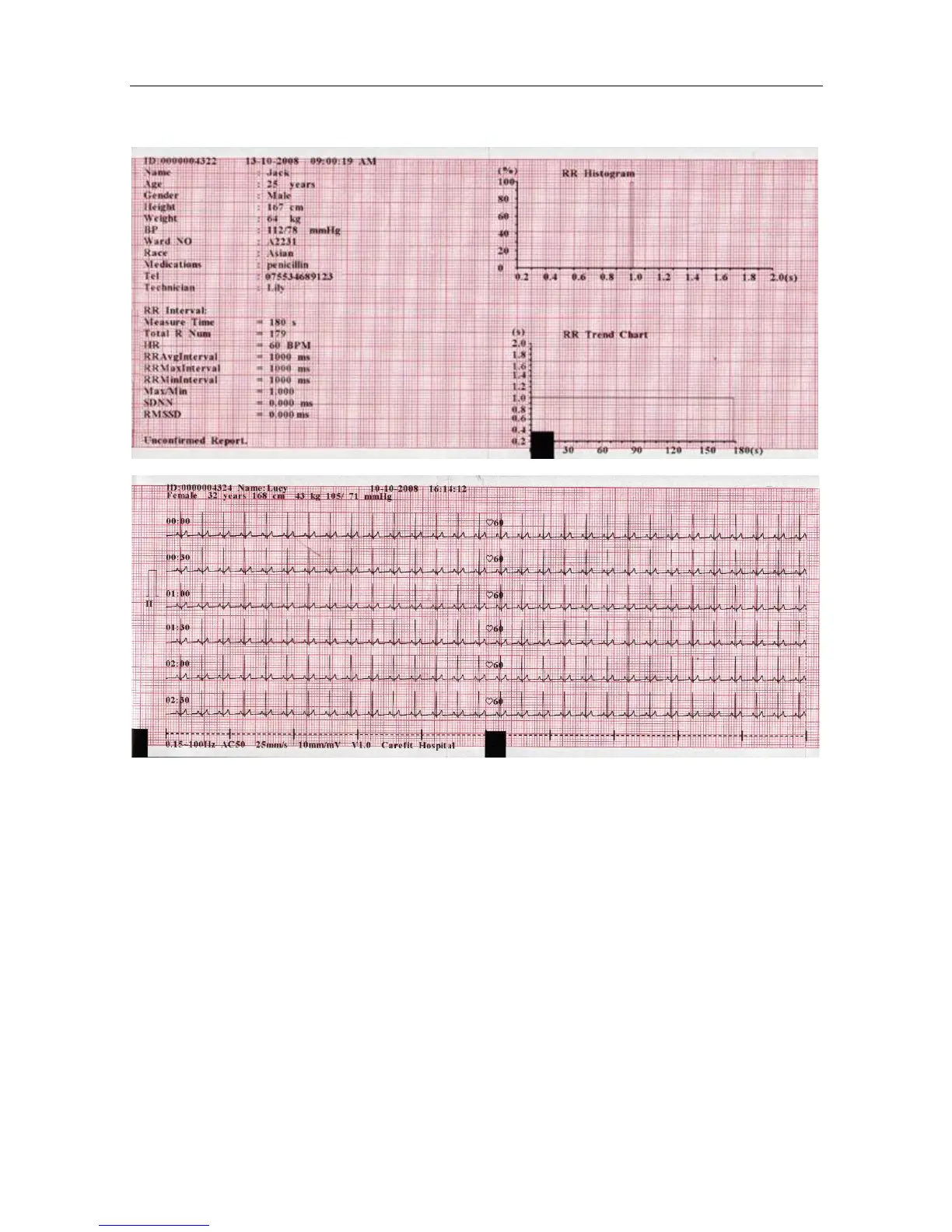

(a)
(b)
The above figures (a) and (b) show the ECG reports in the R-R mode.
Figure (a) shows:
Current Date & Current Time
Patient Information (Name, ID, Gender, Age, Height, Weight, BP, Ward NO, Race, Medications,
Technician)
Measure Time
Total R Num (Total R-wave number)
HR (Heart Rate)
RR Avg Interval (Average RR interval)
RR Max Interval (Maximum RR interval)
RR Min Interval (Minimum RR interval)
Max/Min (Ratio of Maximum RR interval to Minimum RR interval)
SDNN (Standard Deviation of Normal to Normal intervals)
RMSSD (the Root Mean Square of Successive Difference)
