C
HAPTER
2
| Installing the Switch
Mounting
– 38 –
4. If installing multiple switches, mount them in the rack, one below the other,
in any order.
DESKTOP OR SHELF MOUNTING
1. Attach the four adhesive feet to the bottom of the first switch.

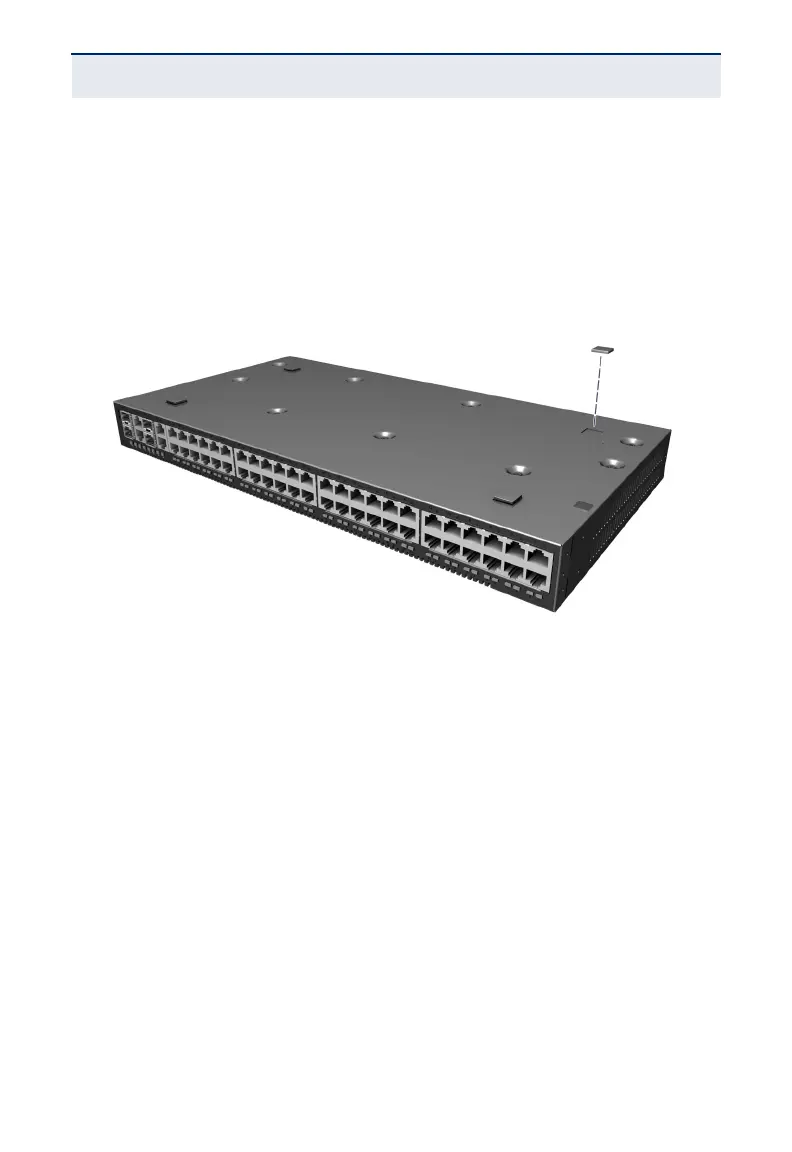

Figure 10: Attaching the Adhesive Feet
2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
3. If installing a single switch only, go to “Connecting to a Power Source” on
page 40.
4. If installing multiple switches, attach four adhesive feet to each one. Place
each device squarely on top of the one below, in any order.
