| Installing the Switch
Installing an Optional SFP Transceiver
– 39 –
INSTALLING AN OPTIONAL SFP TRANSCEIVER

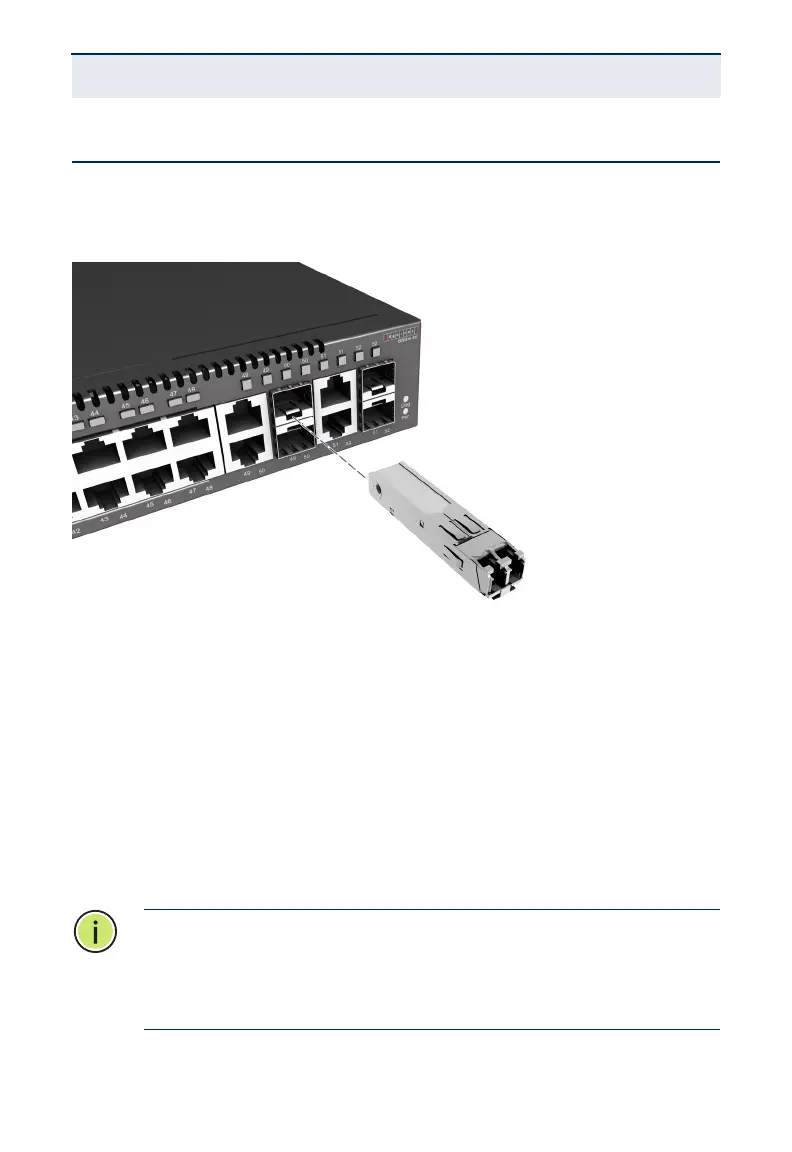

Figure 11: Inserting an SFP Transceiver into a Slot
The switch supports 1000BASE-SX, 1000BASE-LX, 1000BASE-LH and other SFP-
compatible transceivers. To install an SFP transceiver, do the following:
1. Consider network and cabling requirements to select an appropriate SFP
transceiver type.
2. Insert the transceiver with the optical connector facing outward and the slot
connector facing down. Note that SFP transceivers are keyed so they can
only be installed in one orientation.
3. Slide the SFP transceiver into the slot until it clicks into place.
N
OTE
:
SFP transceivers are hot-swappable. The switch does not need to
be powered off before installing or removing a transceiver. However,
always first disconnect the network cable before removing a
transceiver.
N
OTE
:
SFP transceivers are not provided in the switch package.
