CONNECTING TO THE CONSOLE PORT

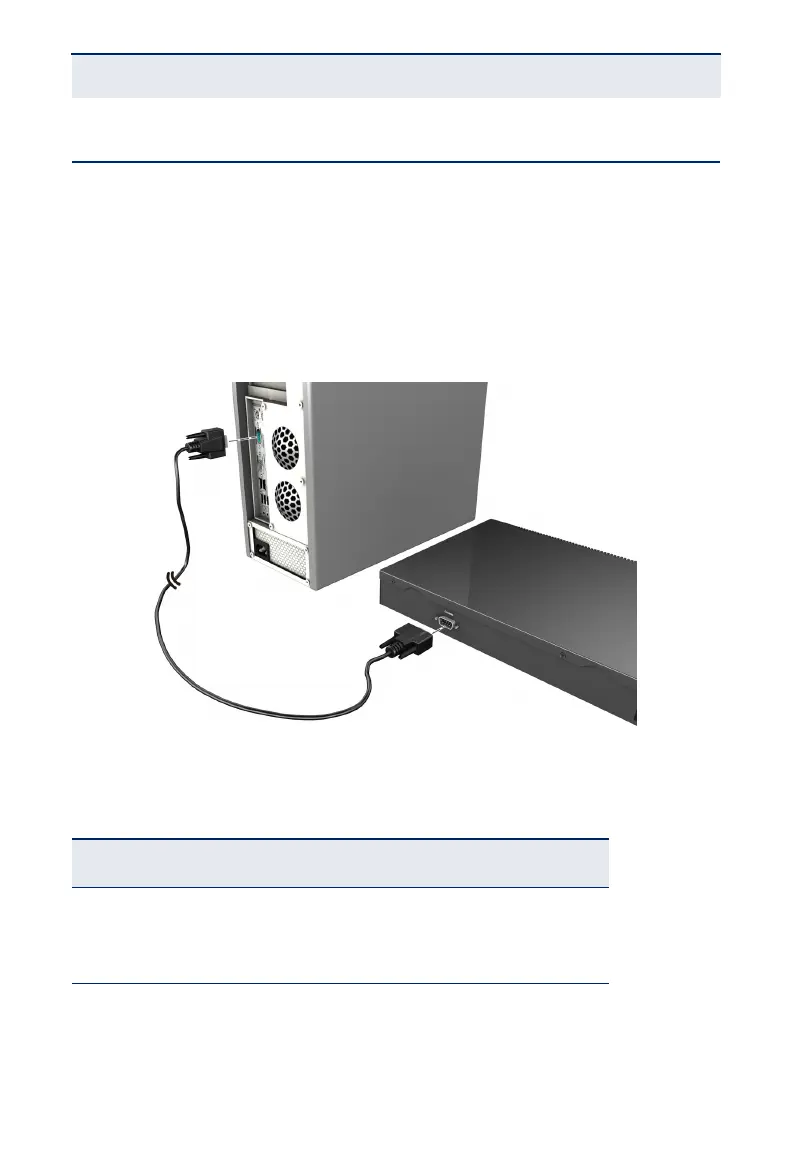

The DB-9 serial port on the switch’s front panel is used to connect to the switch
for out-of-band console configuration. The on-board configuration program can
be accessed from a terminal or a PC running a terminal emulation program. The
pin assignments used to connect to the serial port are described in the following
figure and table.
Figure 13: Serial Port (DB-9 DTE) Pin-Out
WIRING MAP FOR SERIAL CABLE
Table 3: Console Cable Wiring
Switch’s 9-Pin
Console Port
Null Modem PC’s 9-Pin
DTE Port
2 RXD (receive data) <--------------------- 3 TXD (transmit data)
3 TXD (transmit data) ---------------------> 2 RXD (receive data)
5 SGND (signal ground) ----------------------- 5 SGND (signal ground)
No other pins are used.
