Chapter 1
| Switch Description
Overview
– 11 –
Reset Button
Pressing the reset button on the right side front panel causes the switch to restart
or restore factory default settings. For more information, see “How to Reset the
Switch” on page 45.
System LEDs
For information on system status LED indicators, see “Understanding the System
Status LEDs” on page 42.
Port LEDs
For information on port status LED indicators, see “Understanding the Port Status
LEDs” on page 31.
Console Port
The RJ-45 connector on the front panel right side that is labeled “Console” provides
an out-of-band serial connection to a terminal or a PC running terminal emulation
software. The port can be used for performing switch monitoring and
configuration. For more information, see “How to Connect to the Console Port” on
page 43.

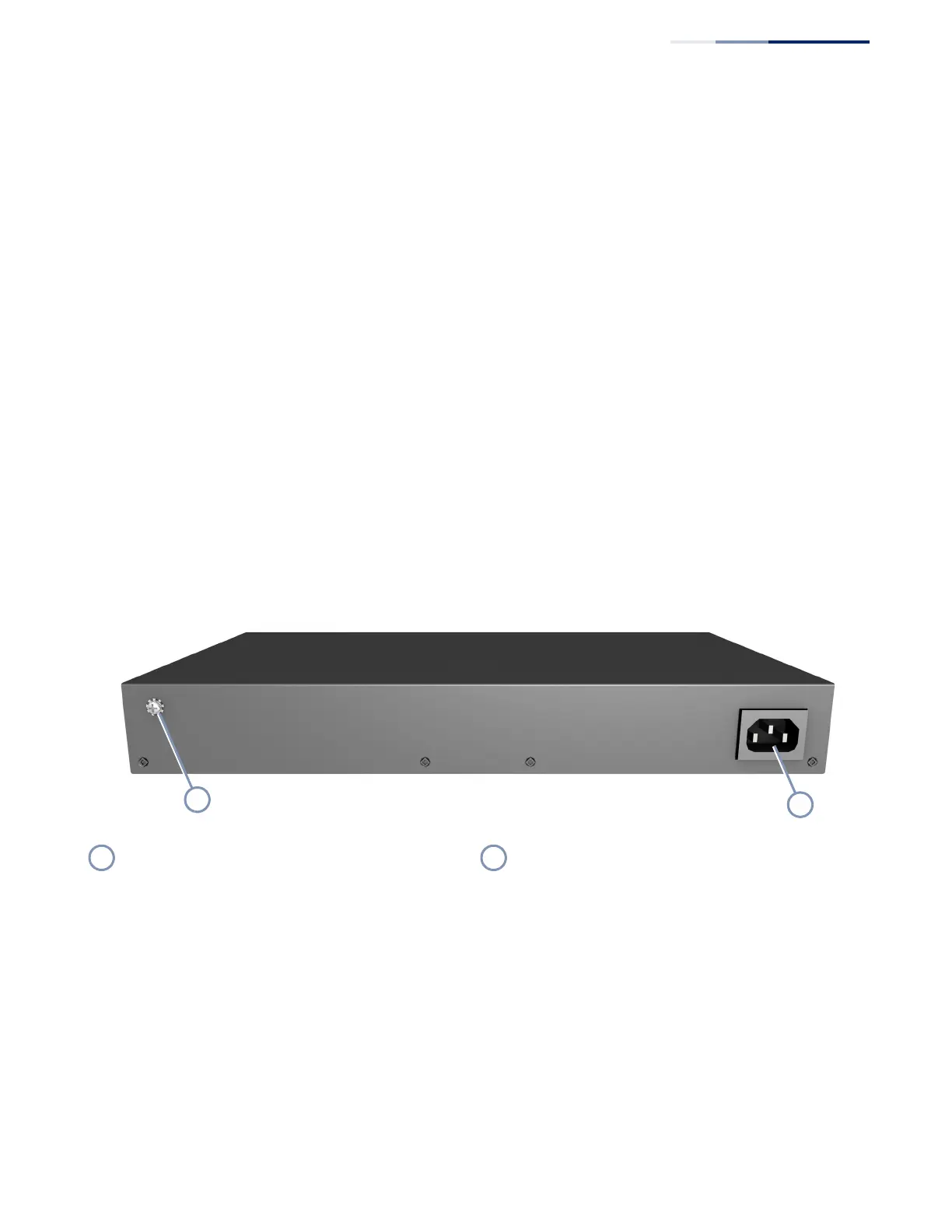

Figure 2: Rear Panel
Cooling Fans and Vents
The switch must be installed in a properly cooled and ventilated environment. For
more information, see “Switch Cooling Requirements” on page 23.
AC Power Socket
The switch requires an AC power source. For more information on the switch power
input, how to connect it, and how to power-on the switch, see “How to Connect to
AC Power” on page 27.
Grounding Terminal AC Power Socket
