Chapter 3
| Switch Chassis
How to Install an Optional Media Expansion Module
– 30 –

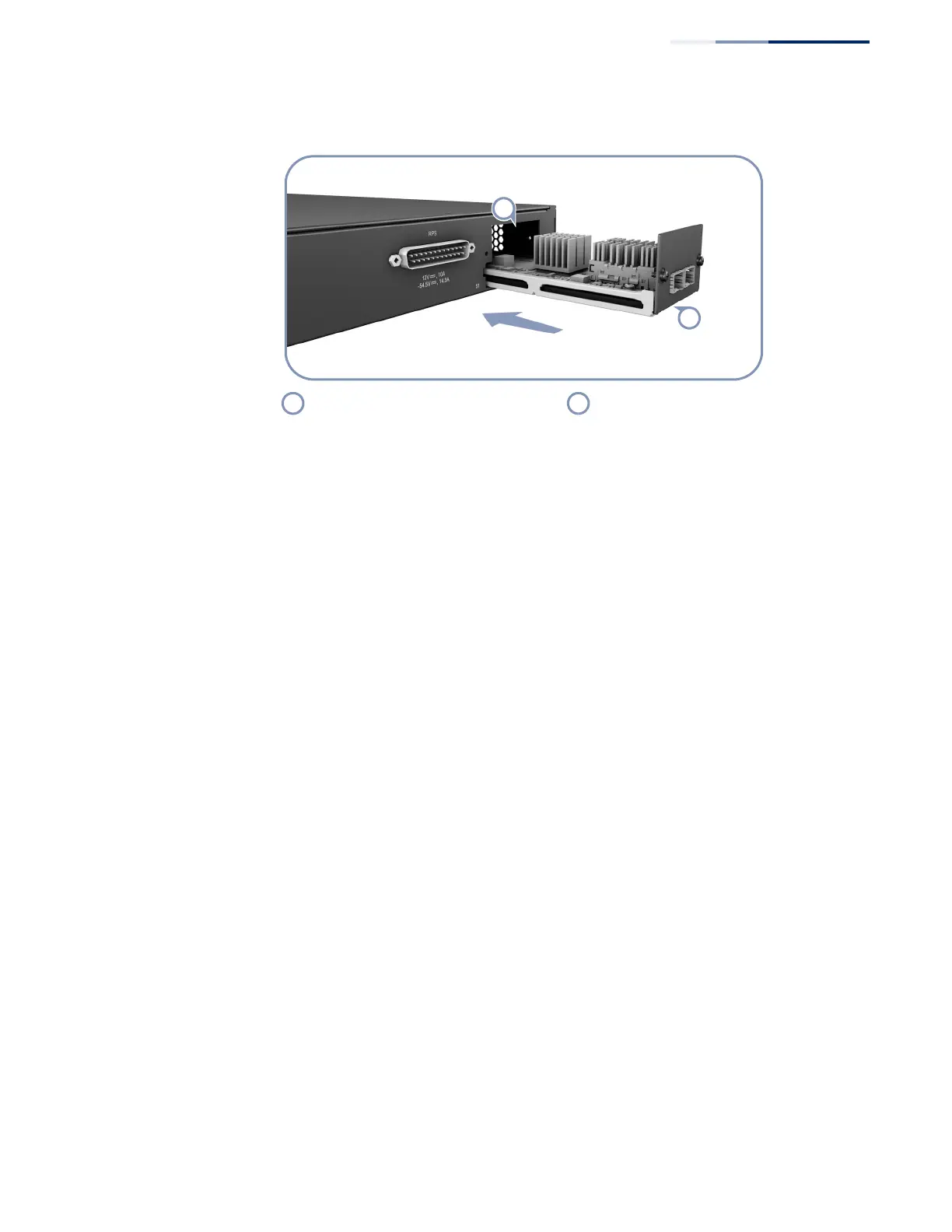

Figure 15: Installing an Optional Module
4. Holding the module level, guide it into the carrier rails on each side and gently
push it all the way into the slot, ensuring that it firmly engages with the
connector.
5. If you are sure the module is properly mated with the connector, tighten the
retainer screws to secure the module in the slot.
6. The Module LED on the switch’s front panel should turn green to confirm that
the module is correctly installed and ready to use.
Module Slot Media Expansion Module
