Making Network Connections
4-2
4
Connecting to PCs, Hubs, and Switches
Caution: Do not plug a phone jack connector into an RJ-45 port. This will damage the
switch. Use only twisted-pair cables with RJ-45 connectors that conform to
FCC standards.
1. Attach one end of a twisted-pair cable segment to the device’s RJ-45
connector.

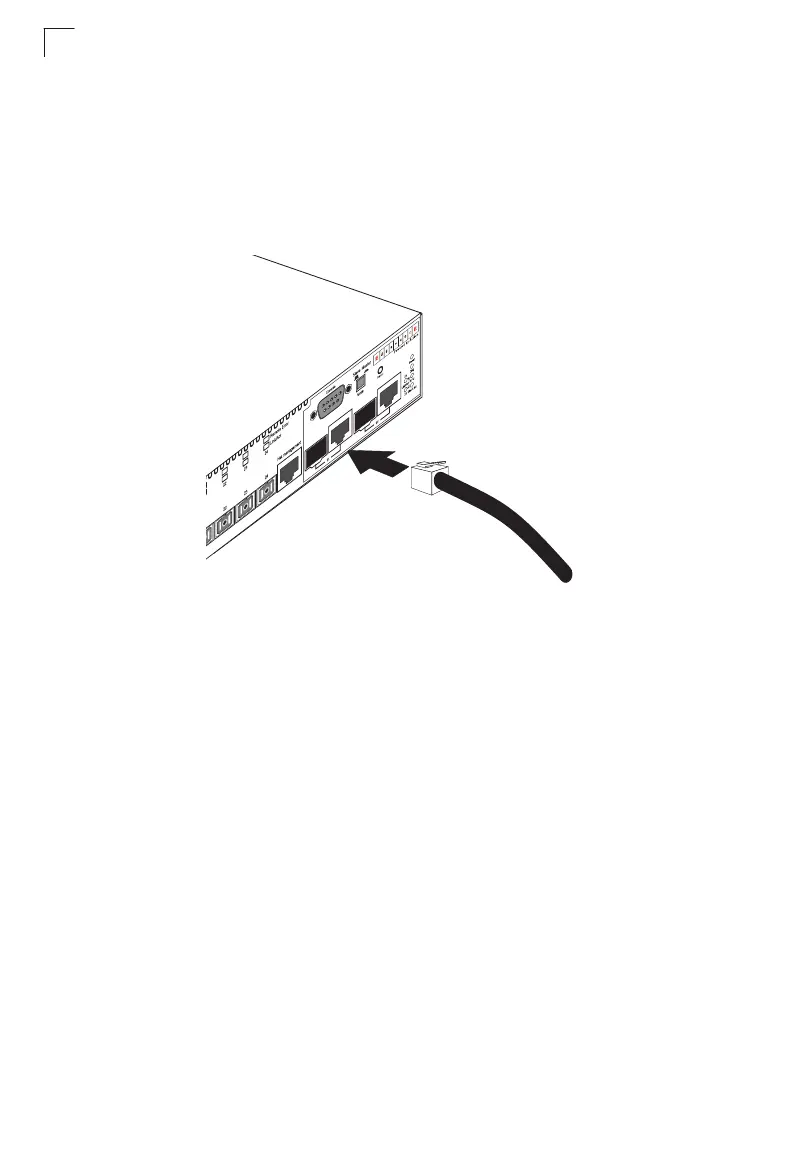

Figure 4-1 Making RJ-45 Port Connections
2. Attach the other end to an available RJ-45 port on the switch.
Make sure each twisted pair cable does not exceed 100 meters (328 ft) in
length.
3. As each connection is made, the green Link/Act LED corresponding to each
port will light to indicate that the connection is valid.
ES3526S
