The OBDII port is located under
the dash below the steering
wheel. The OBDII
port is placed in
dierent locations
under the dash for
dierent applica-
tions; refer to the

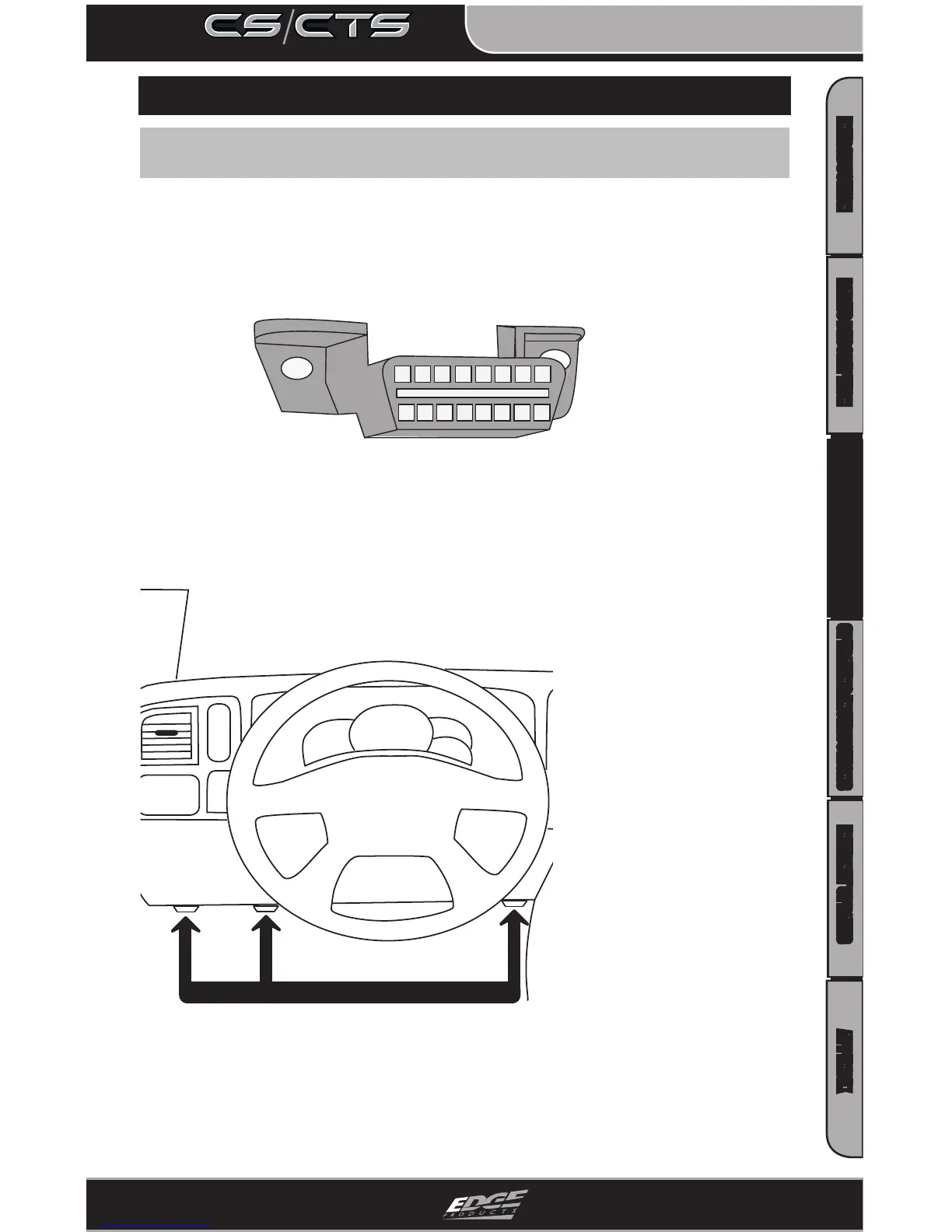

OBDII port location
drawing (left) to
help you locate your
OBDII port.
*07 + Ford Superduty
OBDII ports are located on the
left side of the wheel instead of the
right
* 94-97 Ford Powerstrokes are lo-
cated on the passenger side below and
to the left of the glove box.
OBDII LOCATIONS
The OBDII port is a 16-pin connector like the illustration be-
low.
OBDII PORT
Step 1: Locating the OBDII Port
