1. Unbolt the stock plug from passenger side rear of the transmission using a
7/16 inch (11mm) wrench (see Figure 17).
2. Apply Tefl on tape to the threads of the transmission temperature sensor.
3. Using a ½ inch wrench, thread the Edge supplied transmission oil
temp sensor (see parts list) and connect the cable using the supplied nut.
4. From the top of the engine, route the transmission temperature sensor along
the factory wiring harness and over the top of the transmission and secure with
supplied wire ties.
NOTE: A small amount of transmission fl uid will leak from the outlet.

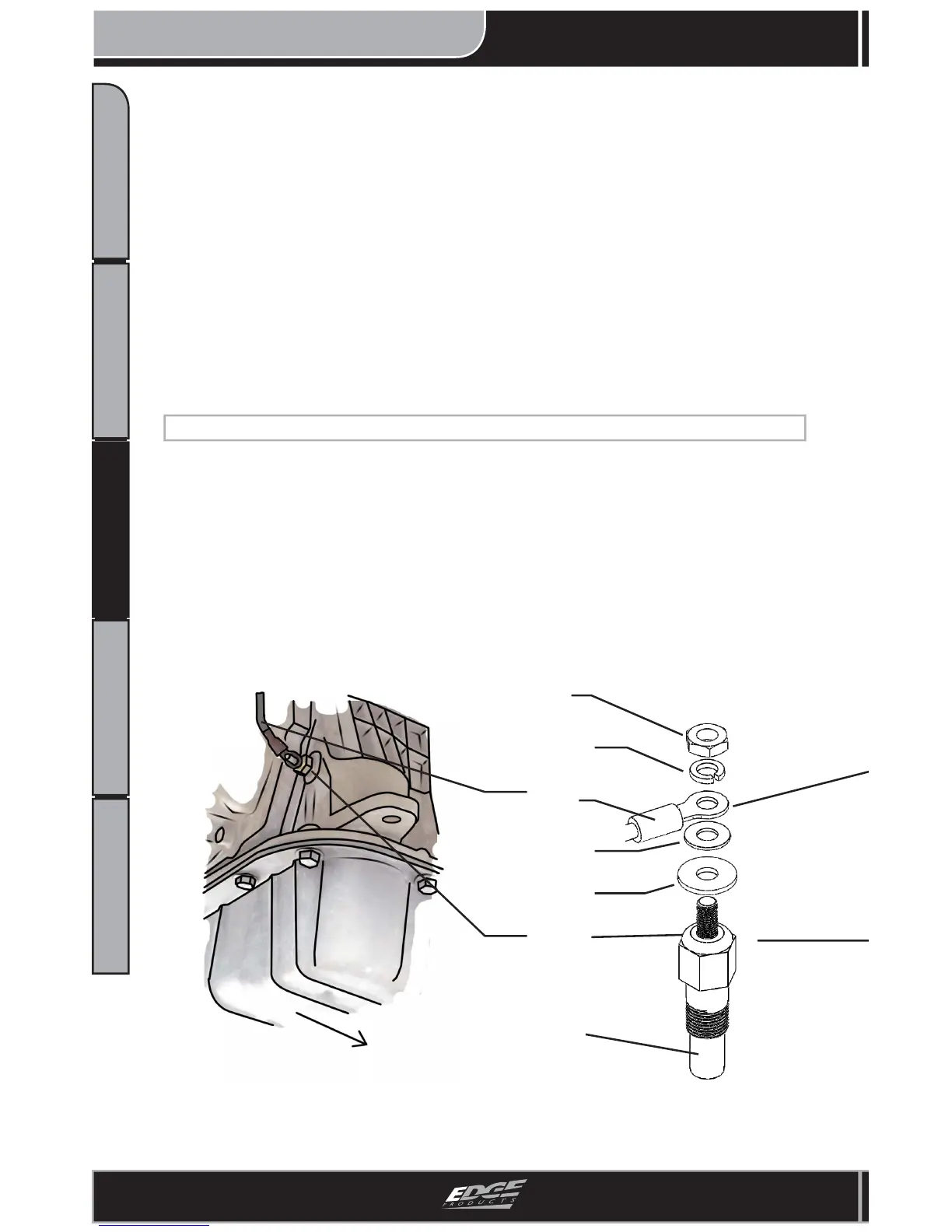

Figure 16 - Automatic Transmission
Figure 17- Sensor Assembly
Refers to Fig 16 & 18
Nut
Lock
Washer
Edge
Cable
Washer
Fiber Woven
Washer
Sensor
Insert this
end into
transmission
Truck Front
(Passenger side)
CONNECTING TO TRANSMISSION (AUTOMATIC)
Attitude. If the pressure drops below 4 psi, or the engine quits running, re-
bleed the fuel system. If the engine still does not start, remove and check the
fuel fi lter. If the fi lter is dirty or damaged, replace the fi lter.
CAUTION:
•Do not engage the starter motor for more than 30 seconds – Allow two min-
utes between cranking intervals.
•Although it is rare, on occasions the LIFT pump may fail to prime after the
banjo bolt has been replaced signifying a possibility of a worn pump. In this
rare instance the LIFT pump should be replaced.
6. Reinstall the throttle bracket onto the fuel injection pump using the three
bolts. Torque these bolt to 18 ft-lbs using a torque wrench and 13mm socket.
